Stepper Motor with 28cm Lead Screw: Bipolar, 200 Steps/Rev, 42×38mm, 2.8V, 1.7 A/Phase

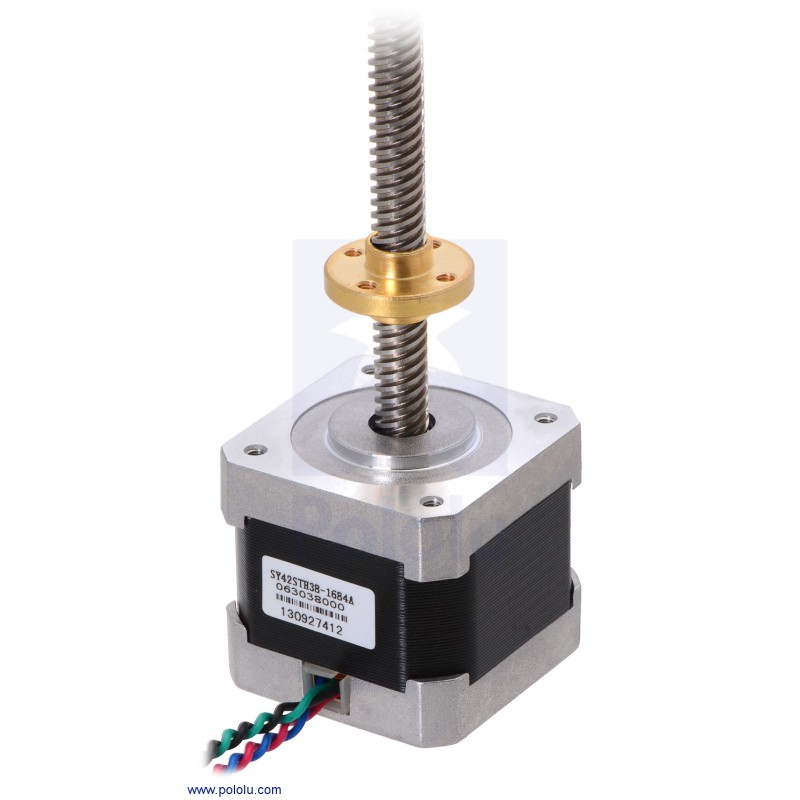

This linear positioning drive consists of our 42×38mm NEMA17 stepper motor with a built-in lead screw in place of the normal output shaft, which makes it easy to move an object or platform in a linear motion with the precision of a stepper motor. Motors like this are especially popular for use in home-built 3D printers (e.g. RepRap) and CNC machines. The stainless steel threaded rod extends 28cm (11″) from the face of the stepper motor, and since it is integrated into the motor itself, you do not have to deal with bulky shaft couplers or loose set screws.

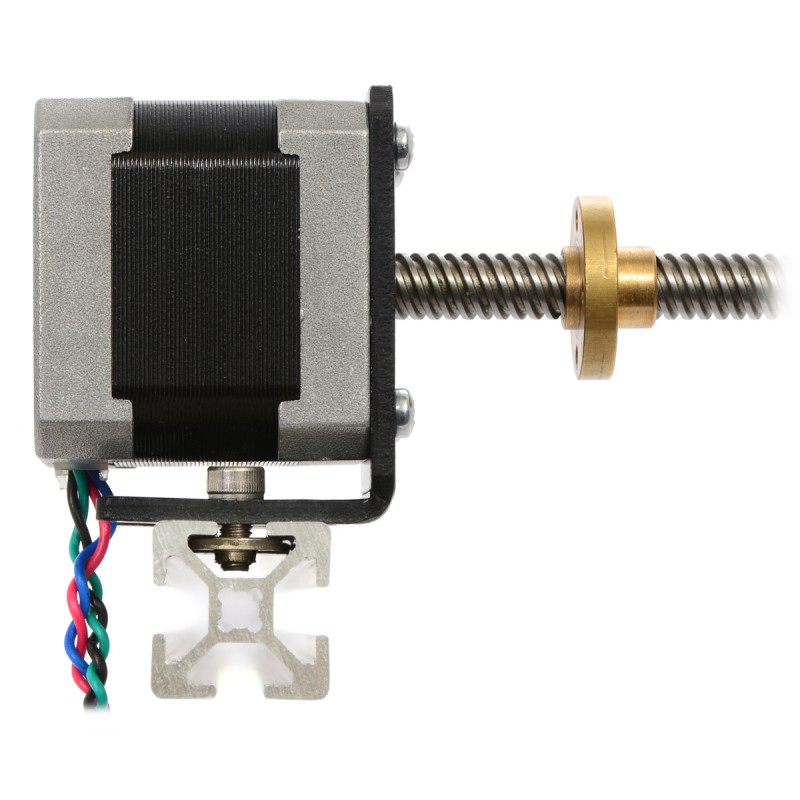

The included copper alloy traveling nut (also known as a carriage nut) features a mounting flange with four holes threaded for M3 screws. The nut moves 8.0mm per full revolution of the lead screw, which allows for a linear resolution of 0.040mm per full step of the stepper motor. Even smaller step sizes can be achieved through microstepping, which is a feature of many bipolar stepper motor drivers. We recommend the DRV8825 stepper motor driver carrier for use with this stepper motor, which allows for a linear resolution of 1.25µm per 1/32 microstep. However, please note that the nut is not spring loaded, so changes in direction will result in loss of positioning precision due to backlash.
The maximum achievable linear speed depends a lot on the details of the system, including the load and motor supply voltage. Under ideal conditions (e.g. with gradual ramping up of the step rate, a high supply voltage, and no load), we were able to achieve speeds close to 30cm/s (12in/s).

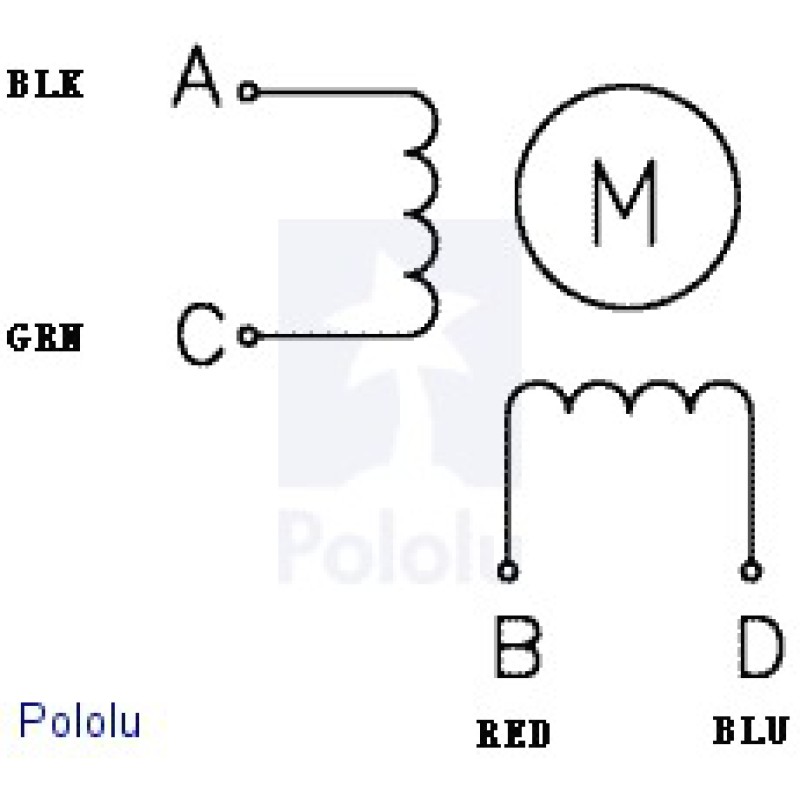

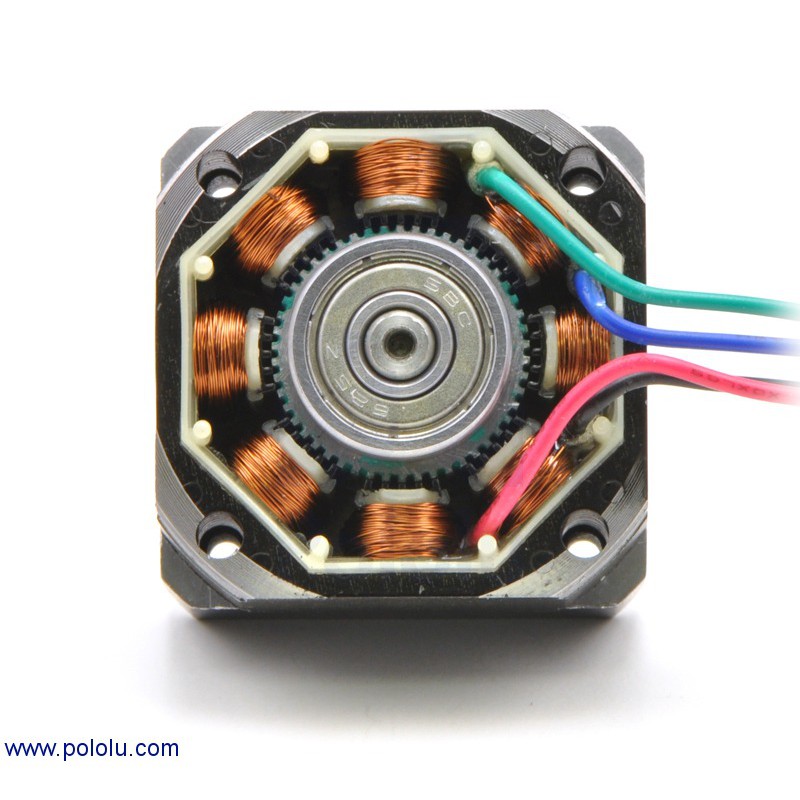

The stepper motor has a 1.8° step angle (200steps/revolution) and each phase draws 1.7A at 2.8V, allowing for a holding torque of 3.7kg-cm (51oz-in). The motor has four color-coded wires terminated with a JST XHP-4 connector with 0.1" spacing: black and green connect to one coil; red and blue connect to the other. It can be controlled by a pair of suitable H-bridges (one for each coil), but we recommend using a bipolar stepper motor driver.
| Size: |
42.3 mm square × 38 mm (NEMA 17)1 |
|---|---|
| NEMA size: | 17 |
| Weight: | 385 g |
| Shaft diameter: | 8 mm |
General specifications
| Shaft type: | Threaded rod |
|---|---|
| Steps per revolution: | 200 |
| Current rating: | 1680 mA2 |
| Voltage rating: | 2.8 V |
| Holding torque: | 51 oz·in |
| Resistance: | 1.65 Ohm2 |
| Inductance per phase: | 3.2 mH |
| Number of leads: | 4 |
| Lead length: | 16 cm3 |
