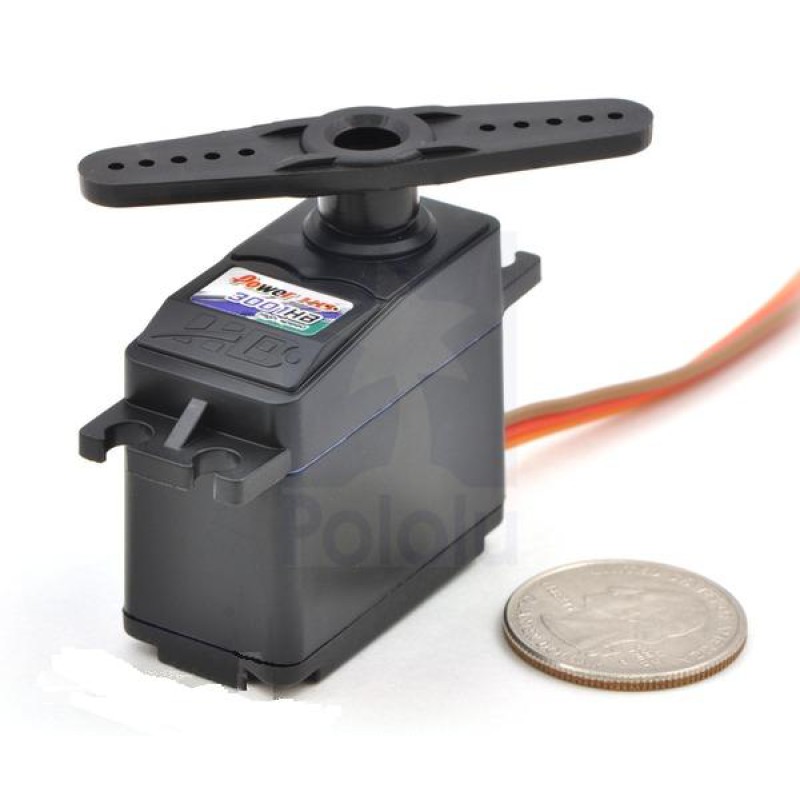

Power HD Standard Servo 3001HB
The 3001HB is a great, general-purpose, low-cost standard analog servo from Power HD.
Two ball bearings help reduce friction and improve performance.
This servo is a replacement for—and upgrade over—the original
HD-2360A servo. Servo horns and associated hardware are included.
Key specs at 6V: 0.12sec/60°, 61oz-in (4.4kg-cm), 43g.
The HD-3001HB is a great general-purpose, standard-size servo.
Two ball bearings help reduce friction and improve performance.
A replacement for the Power HD HD-2360A, it represents
a significant performance upgrade for the same low price.
The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible.

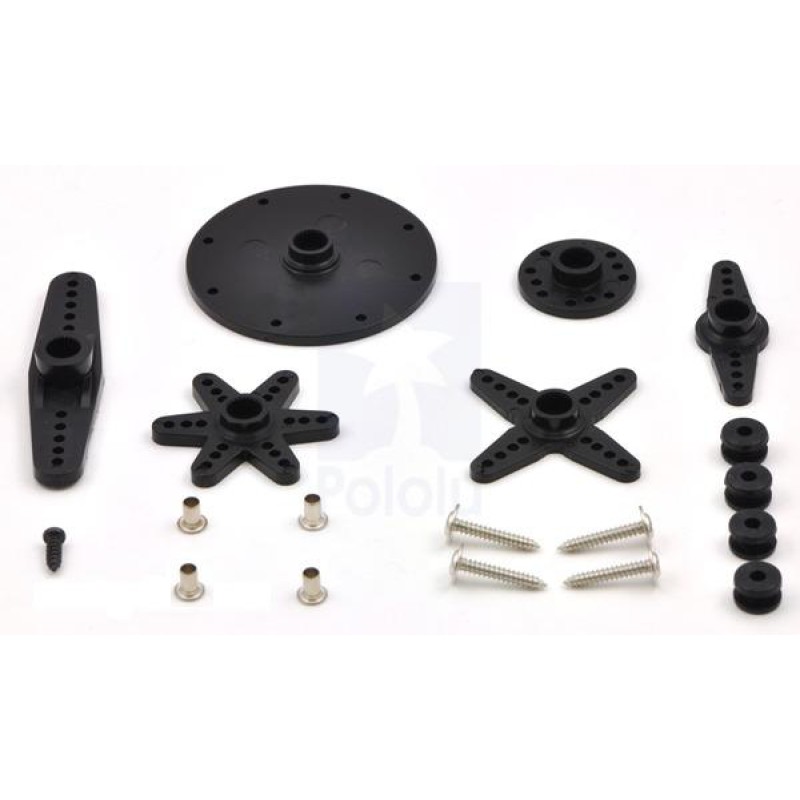

The picture below shows an example of the hardware that
might be included with this servo (hardware might vary).
You can find more information about this servo under the specifications tab.
מידות
| Size: | 40.7 x 20.5 x 39.5 mm |
|---|---|
| Weight: | 43 g |
מאפיינים כלליים
| Digital?: | N |
|---|---|
| Speed @ 6V: | 0.12 sec/60° |
| Stall torque @ 6V: | 4.4 kg·cm |
| Speed @ 4.8V: | 0.15 sec/60° |
| Stall torque @ 4.8V: | 3.5 kg·cm |
| Lead length: | 11 in |
| Hardware included?: | Y |
