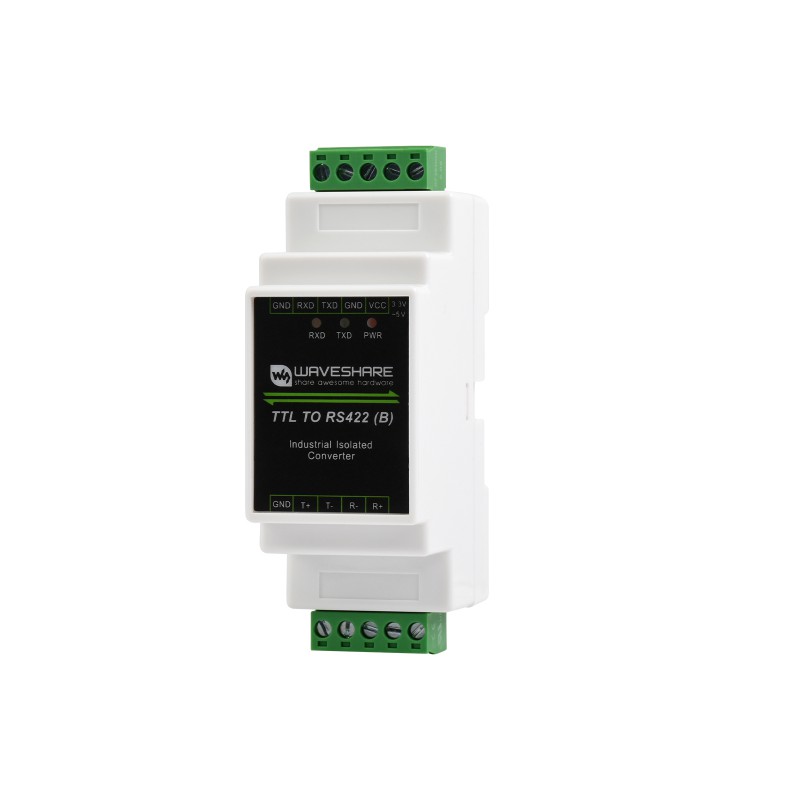

Rail-mount TTL To RS422 Galvanic isolated Converter, Anti-surge, Multiple Isolation Protection
Features at a glance
- Compatible with TTL/RS422 standard, converting the TTL signal into differential RS422 signal, support full duplex communication
- Compatible with 3.3V ~ 5V TTL signal level, provides anti-reverse and over-voltage protection for power supply interface
- Onboard unibody power supply isolation, provides stable isolated voltage and needs no extra power supply for the isolated terminal
- Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
- Onboard TVS (Transient Voltage Suppressor), effectively suppresses surge voltage and transient spike voltage in the circuit, anti-electrostatic
- Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provide over-current/over-voltage protection, improve shock proof performance

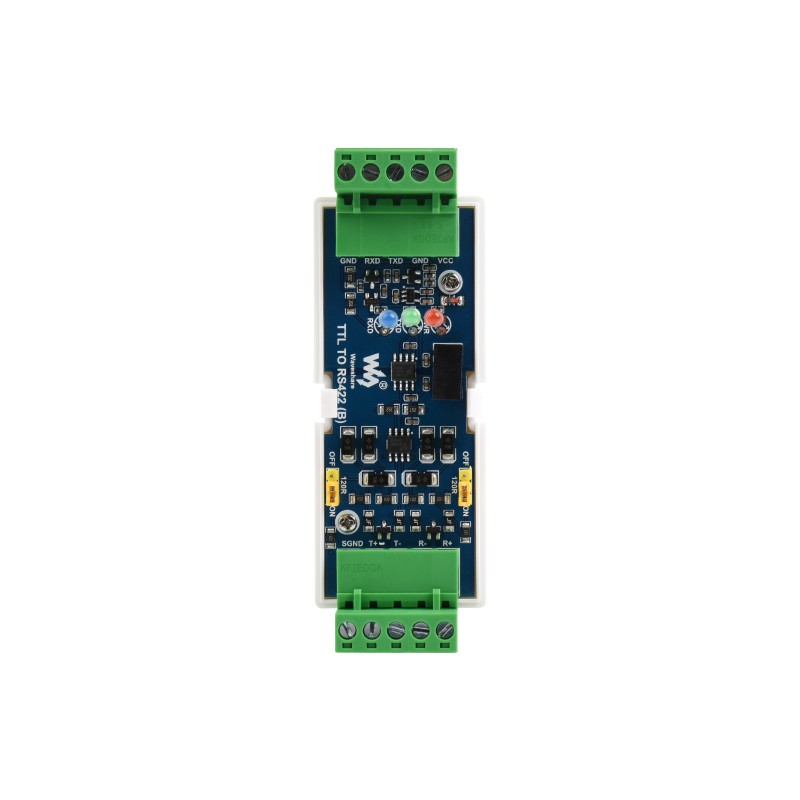

- Onboard RS422 input and output terminal 120R resistor, enabled/disabled via jumper
- Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective
Specifications
| Product Type | Galvanic isolated TTL to RS422 converter | |
|---|---|---|
| Power supply interface | Power supply | 3.3V ~ 5V |
| Protection | over-voltage, reverse-proof | |
| Device Port | TTL/RS422 standard compatible | |
| TTL | Connector | screw terminal |
| Transmission distance | about 10m | |
| Transmission mode | point-to-point | |
| RS422 | Connector | screw terminal |
| Protection | surge-suppress and 15KV ESD protection | |
| Terminal resistor | 120R, enabled/disabled via jumper (inside the case) | |
| Transmission Distance | About 1.2km | |
| Transmission Mode | full duplex mode, point-to-multipoint (up to 256 nodes, it is recommended to use repeaters for 16 nodes or more) | |
| Appearance | Case | Rail-mount ABS case, suitable for 35mm DIN rail |

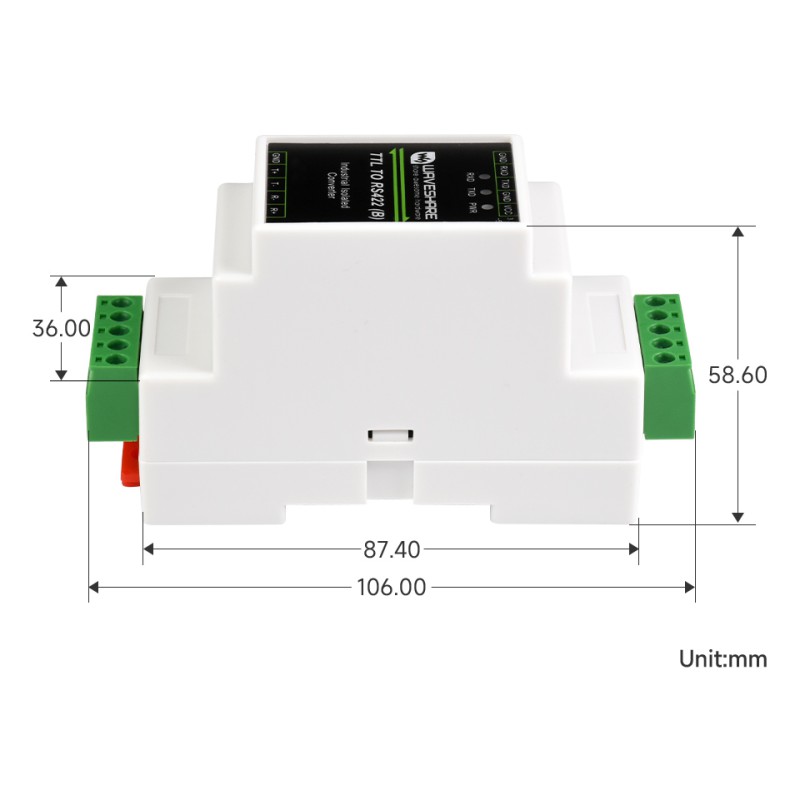

| Dimensions | 106.0 × 58.6 × 36.0mm | |
