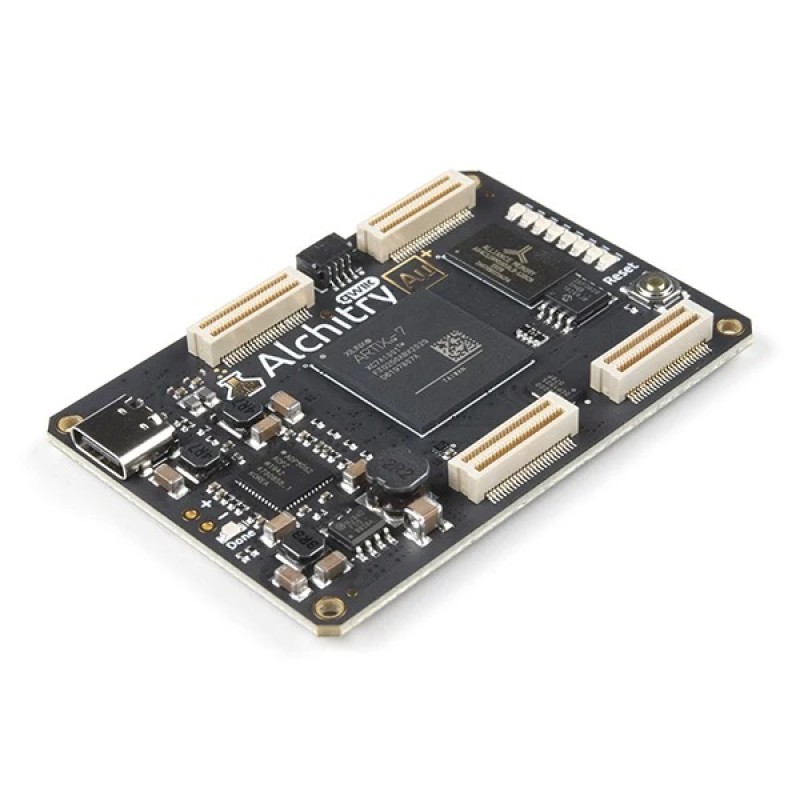

Alchitry Au+ FPGA Development Board (Xilinx Artix 7)

₪3,500

תיאור

Product Overview

The Alchitry Au+ is the "gold" standard for FPGA development boards and it's possibly one of the strongest boards of its type on the market. The Au+ substitutes a more robust & scalable FPGA chip (Xilinx XC7A100T) that allows for more complex application circuits. The number of Configurable logic blocks (LABs/CLBs), Logic Elements, and total RAM bits are all nearly 3x that of the standard Au; see "Features" for more details.

FPGAs, or Field-Programmable Gate Arrays, are an advanced development board type for engineers and hobbyists alike to experience the next step in programming with electronics. The Au+ continues the trend of more affordable and increasingly powerful FPGA boards arriving each year. This board will allow your project to grow beyond the typical starting points for FPGAs. Finally, now that this board is built by SparkFun, we added a Qwiic connector for easy I²C integration!

The Alchitry Au+ features a Xilinx Artix 7 XC7A100T FPGA with over 100k logic cells and 256MB of DDR3 RAM. The Au+ offers 102 3.3V logic level IO pins, 20 of which can be switched to 1.8V; Nine differential analog inputs; Eight general purpose LEDs; a 100MHz on-board clock that can be manipulated internally by the FPGA; a USB-C connector to configure and power the board; and a USB to serial interface for data transfer. To make getting started even easier, all Alchitry boards have full Lucid support, a built in library of useful components to use in your project, and a debugger!

By adding stackable expansion boards similar to shields or HATs called "Elements," the Alchitry Au is able to expand its own hardware capabilities by adding prototyping spaces, buttons, LEDs, and more!

Features & Specs

What's different about the Au+?

The Au+ uses a similar Xilinx Artix-7 FPGA IC (same total I/O), but with a more rubust and over 3x scalable architecture that allow for more complex application circuits.

Number of LABs/CLBs- 7925 (vs. 2600 on the Au) - Logic Array Block/Configurable logic blocks -
Number of Logic Elements/Cells - 101440 (vs. 33,208 on the Au)
Total RAM Bits - 4,976,640

Features
