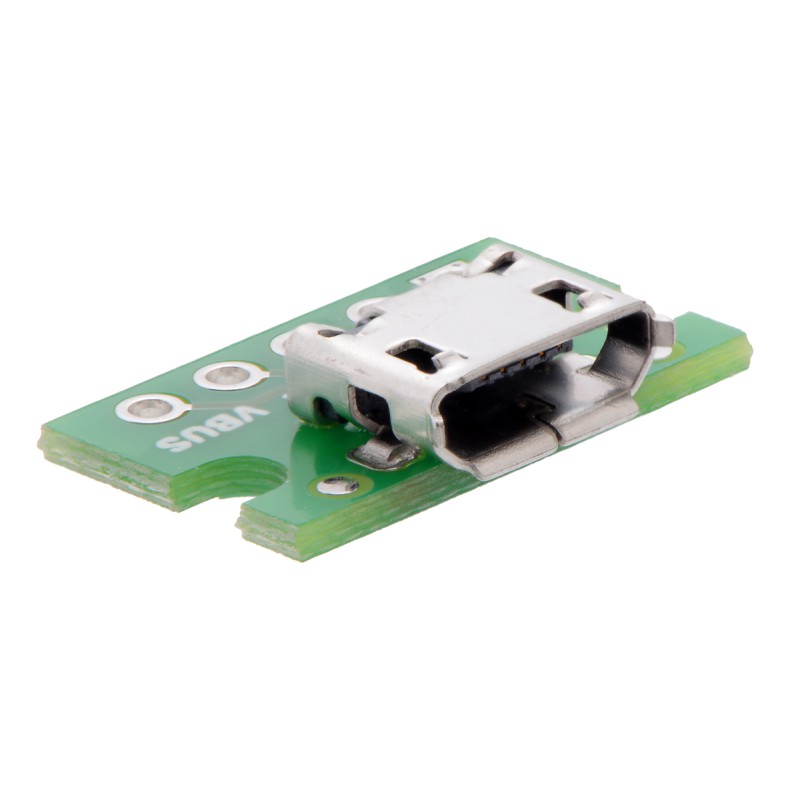

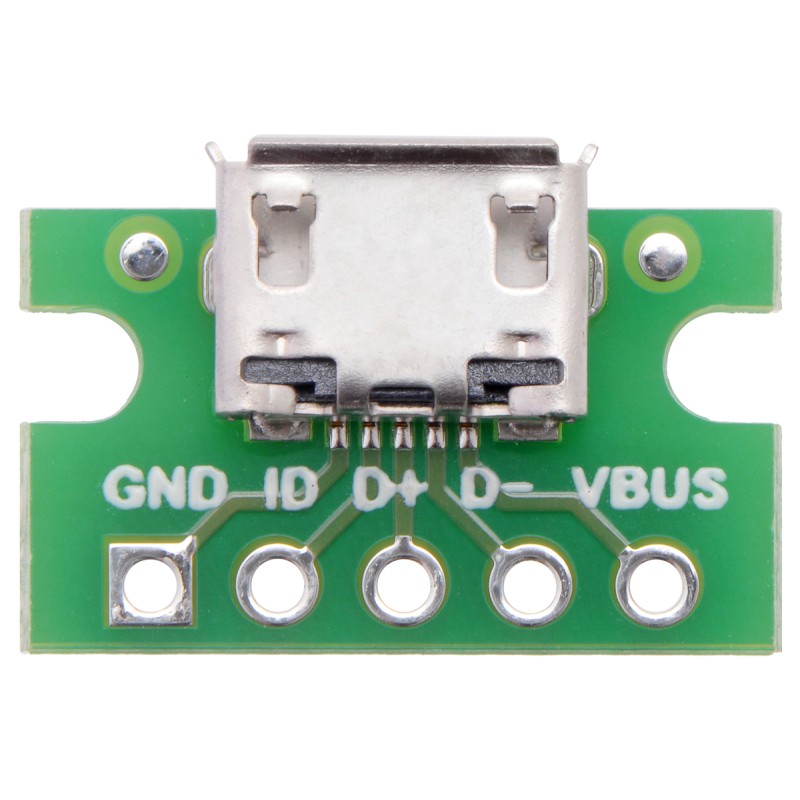

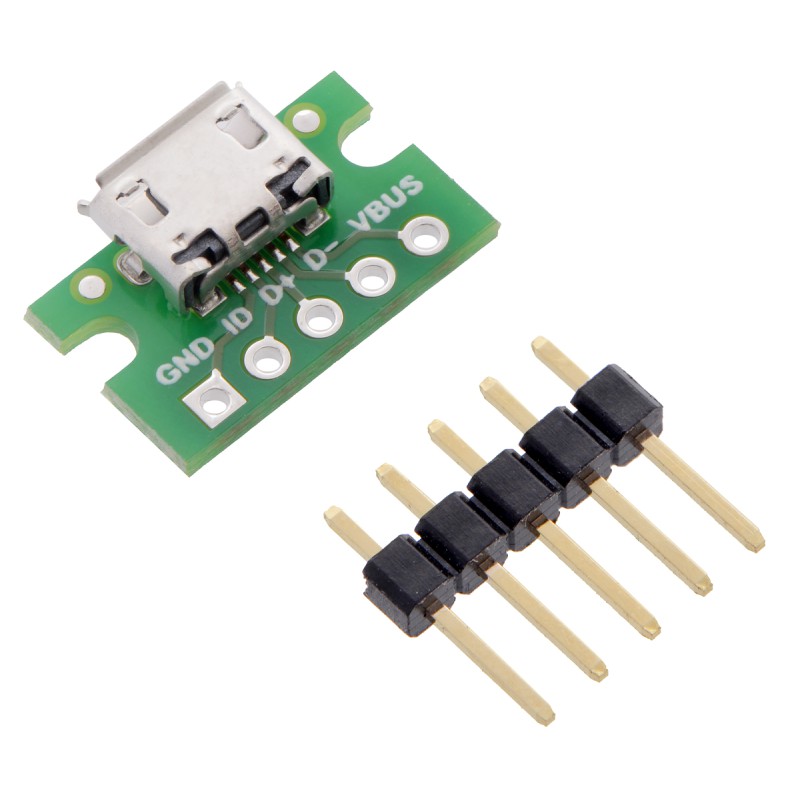

This board breaks out the VBUS, GND, D-, D+, and ID pins of a USB Micro-B connector. The VBUS and GND pins can be used to power your project from USB, while the D- and D+ pins give you access to the USB differential data signals. Each of these pins, along with the ID pin, are broken out into a 1×5 row of 0.1″-spaced pins on the board. The included 1×5 straight male header can be soldered to these pins to allow the board to be used with standard perfboards, solderless breadboards, and 0.1″ connectors.

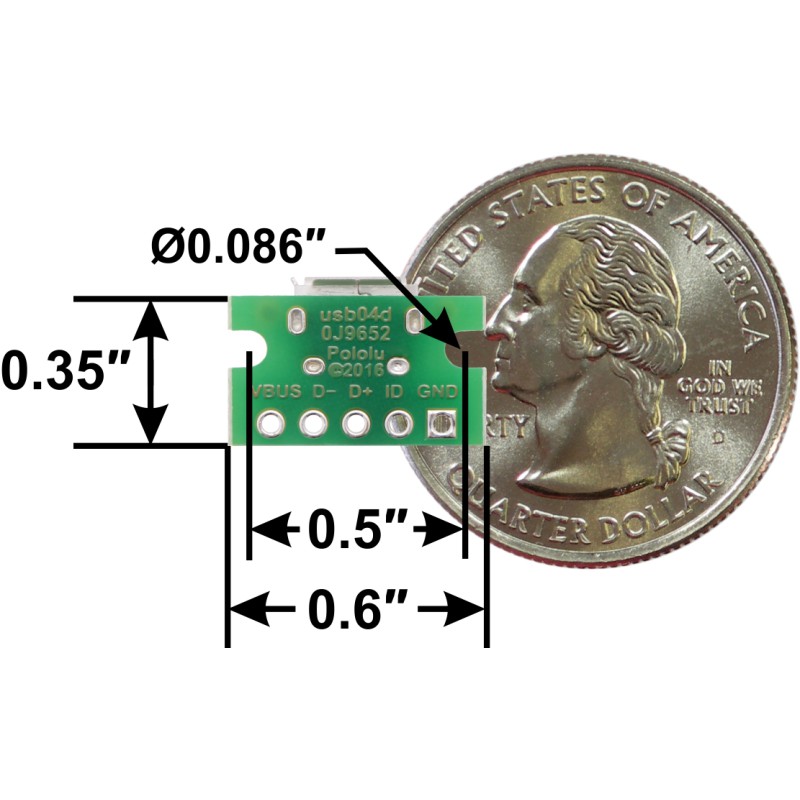

Dimensions
| Size: | 0.4 ″ × 0.6″ × 0.15″1 |
|---|---|
| Weight: | 0.5 g2 |
Identifying markings
| PCB dev codes: | usb04d |
|---|---|
| Other PCB markings: | 0J9652 |
