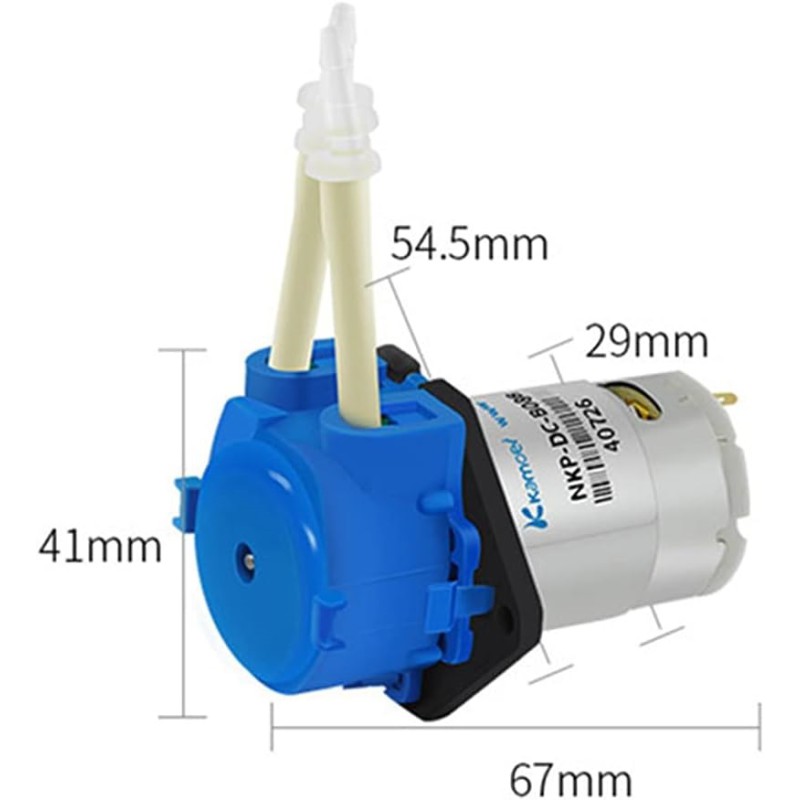

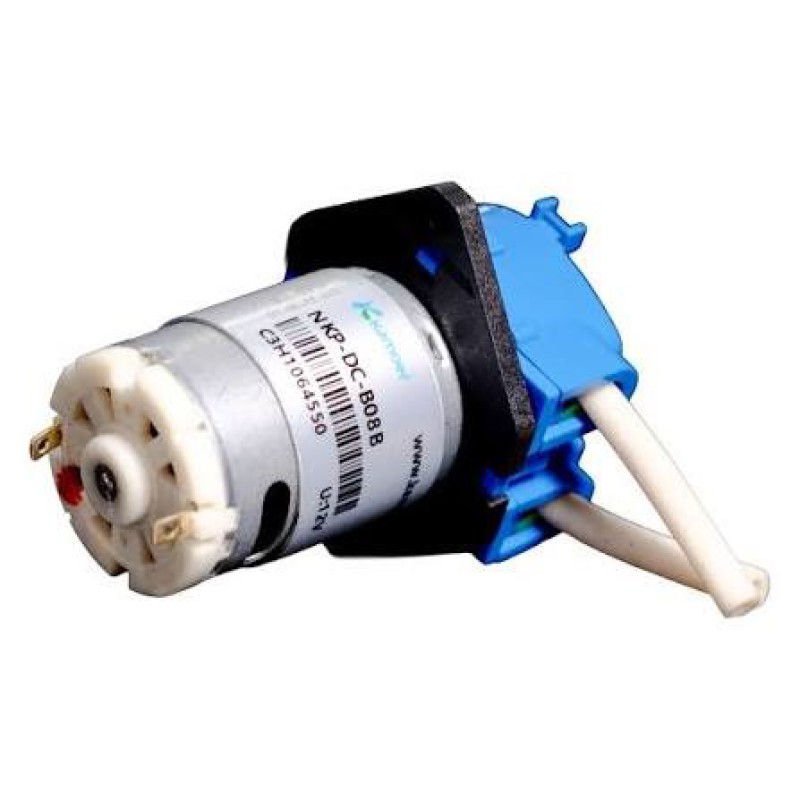

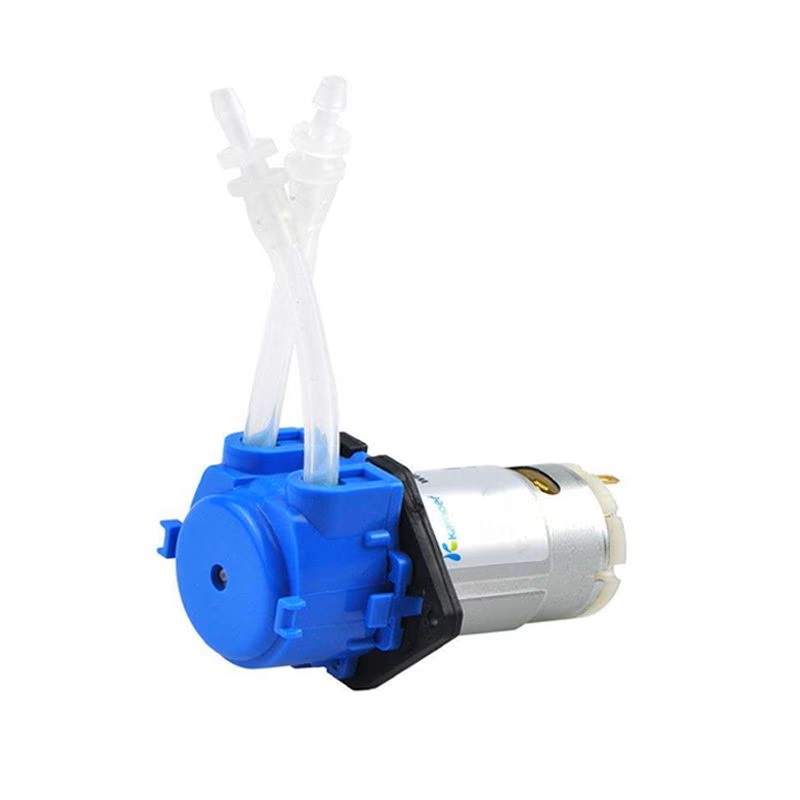

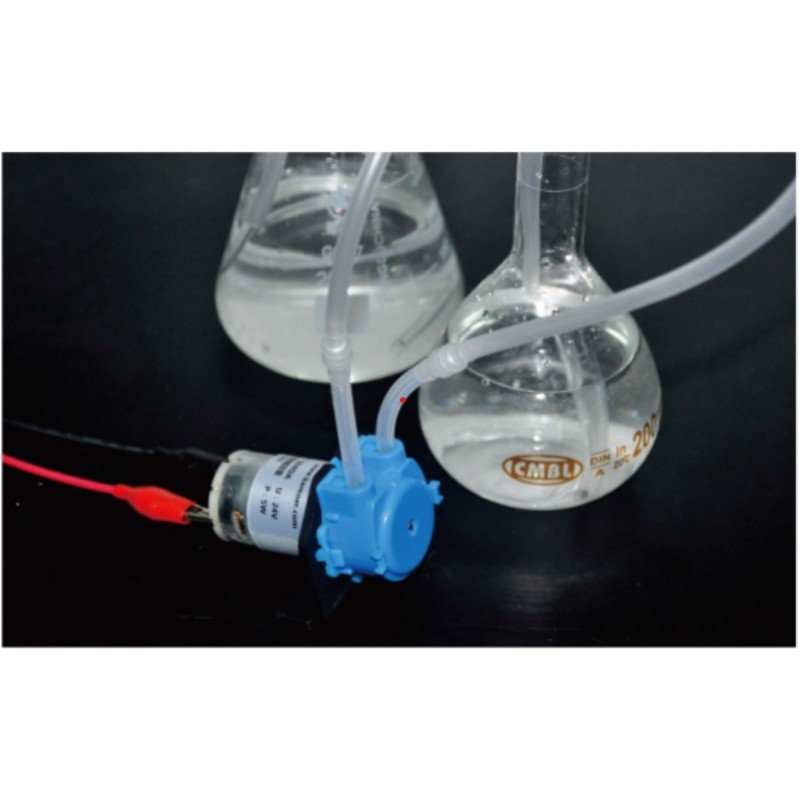

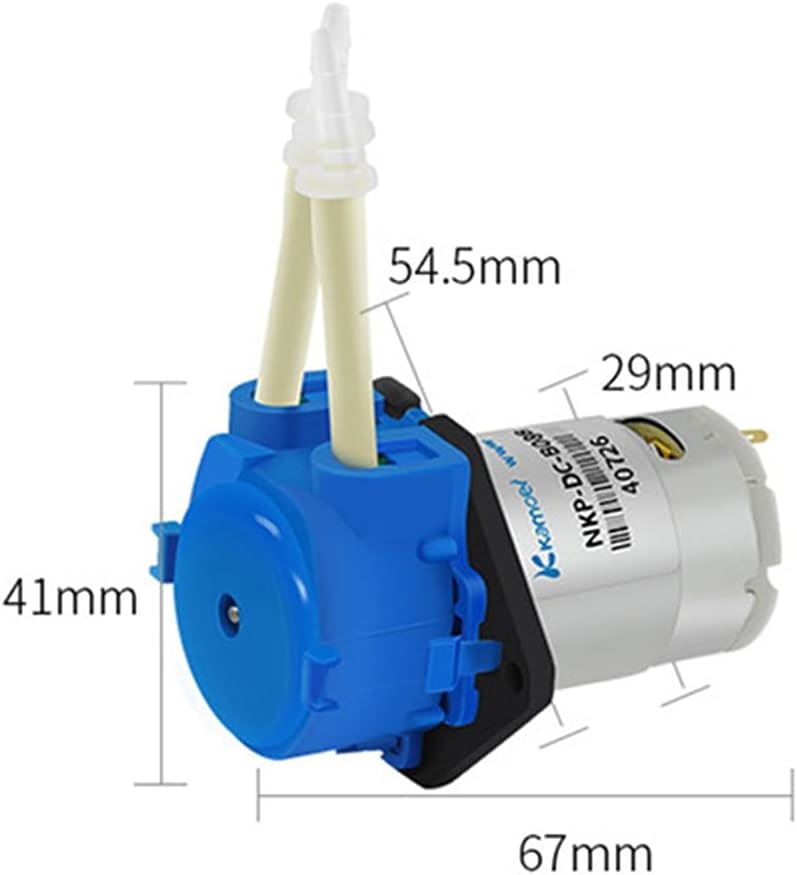

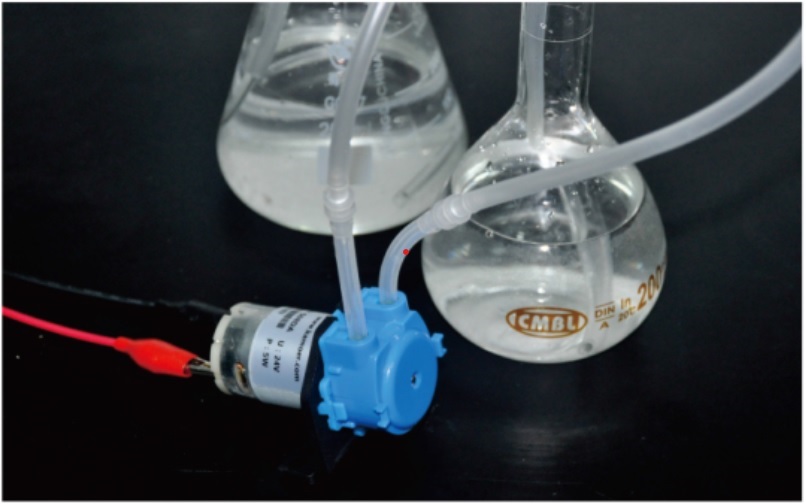

This is Kamoer NKP-DC-S08B 12V DC Brushed Motor Peristaltic Pump.
When pumping liquids and no direct contact with the liquid is required, the all-new range of peristaltic pumps from kamoer offers a simple solution.
Unlike most pumps, peristaltic pumps squishes a silicone tube to produce the pump action instead of impelling it directly, thus no direct contact with the liquid.
This pump requires a 12V DC supply and can produce a flow rate of up to 55ml per minute.
If speed control is required we suggest using a simple PWM signal .
Applications:
- Experiment
- Filling packaging
- Laboratory
- Research institutes
- Food industry
Specification:
Colour: Blue
Voltage: 12V
Operating Current: 0.25a
Flow : 5.2-90ml/Min
Noise: Less Than 40db
Pulse: Three Rollers, Low And Low Noise
Pump: Plastic
Working Environment: Temperature 0~40 Degree
Relative Humidity: Less Than 80%
Mounting Plate: Straight Plate
Product Weight: 110g
Package Size: 17 x 12.5 x 11.5cm/6.7 x 4.9 x 4.5in
Package Weight: 199g/7oz
Features:
- High flow
- High negative pressure
- Easy to maintenance
- Chemical stability
- Long life
- High repeatability
