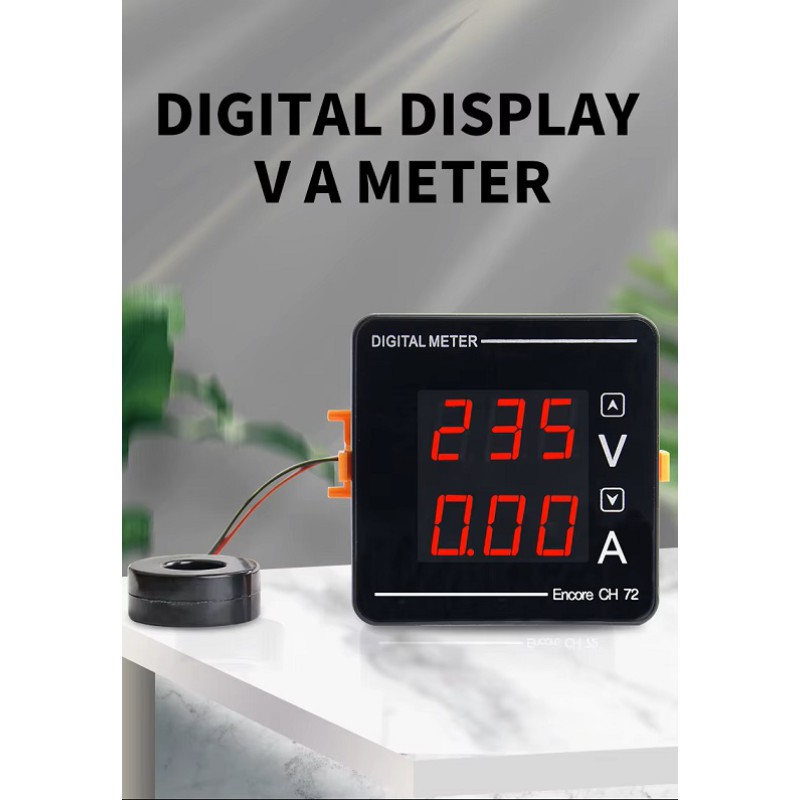

The digital voltage and current dual display meter displays the measured AC voltage and current on the same meter at the same time. The meter does not need to add power supply and transformer. The meter comes with a 120A precision small transformer.
Specification
Measuring range: voltage: AC50-500V current: AC1-120A

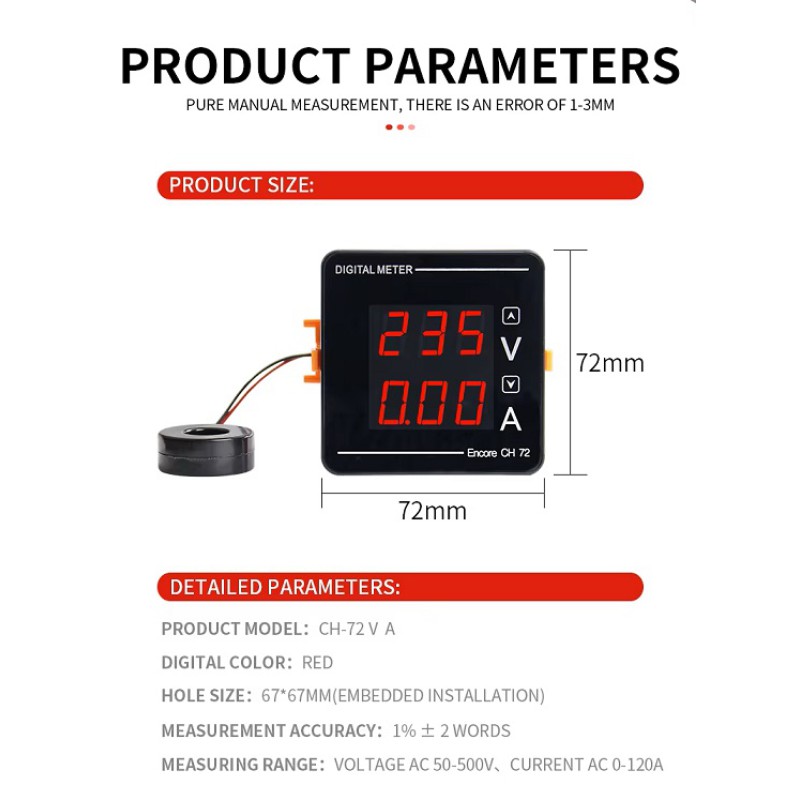

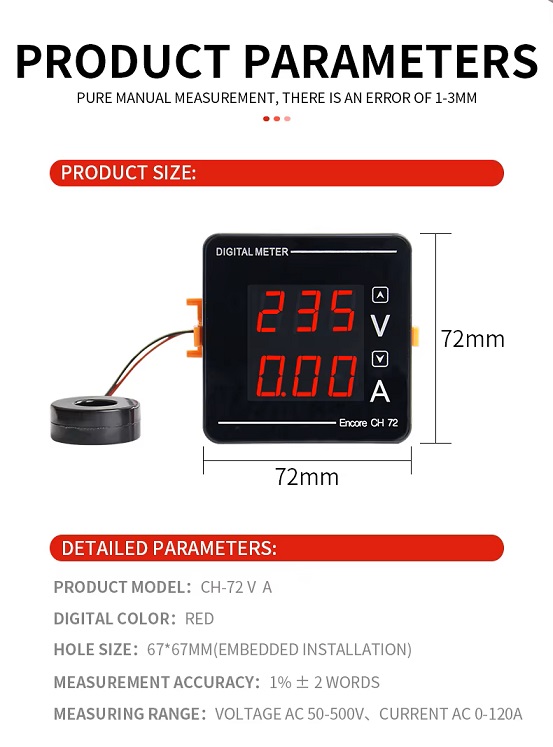

Dimensions: 72*72*32mm
Hole size: 68*68mm
Measurement accuracy: 1%±2 words

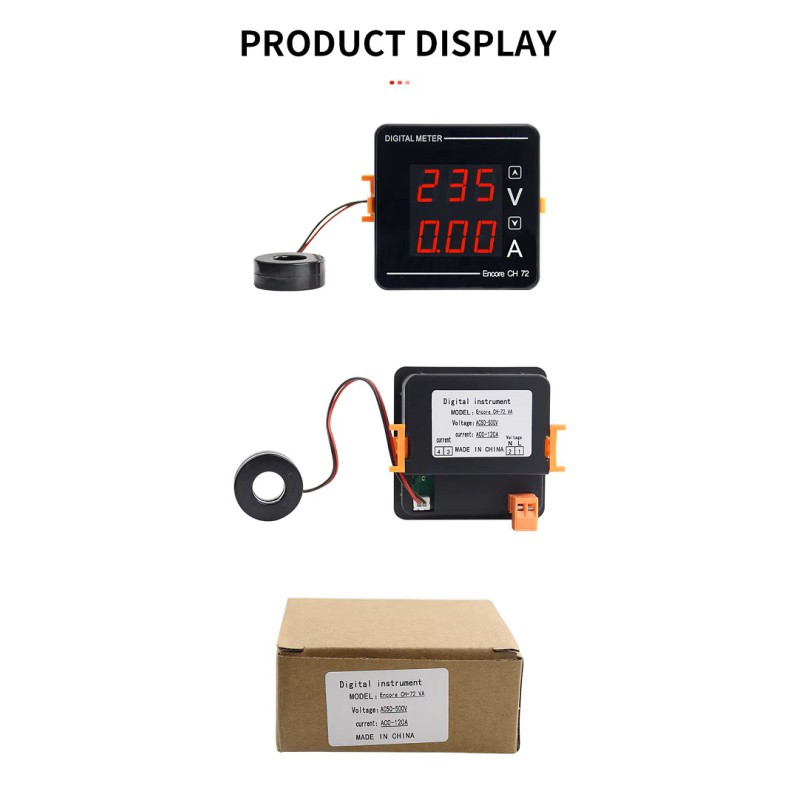

1 × Voltage and current dual display meter

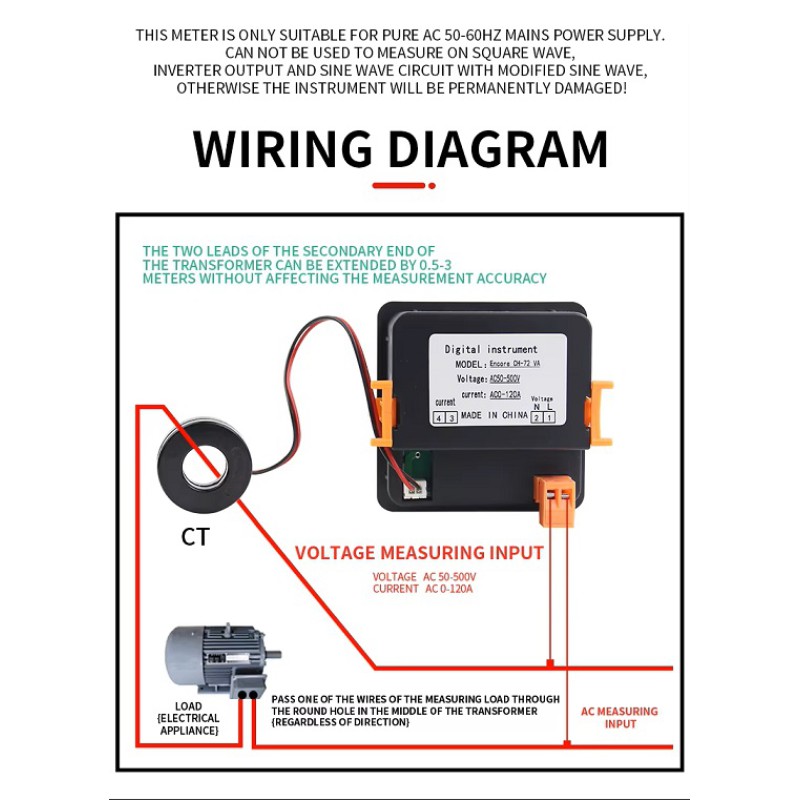

120A transformer (hole diameter 15mm) can meet the national standard 21-25 square millimeter standard copper wire through
This instrument is only suitable for pure AC 50-60HZ mains power supply. It cannot be used for square wave, inverter output, and sine wave circuits with modified sine waves, otherwise the instrument will be permanently damaged!
