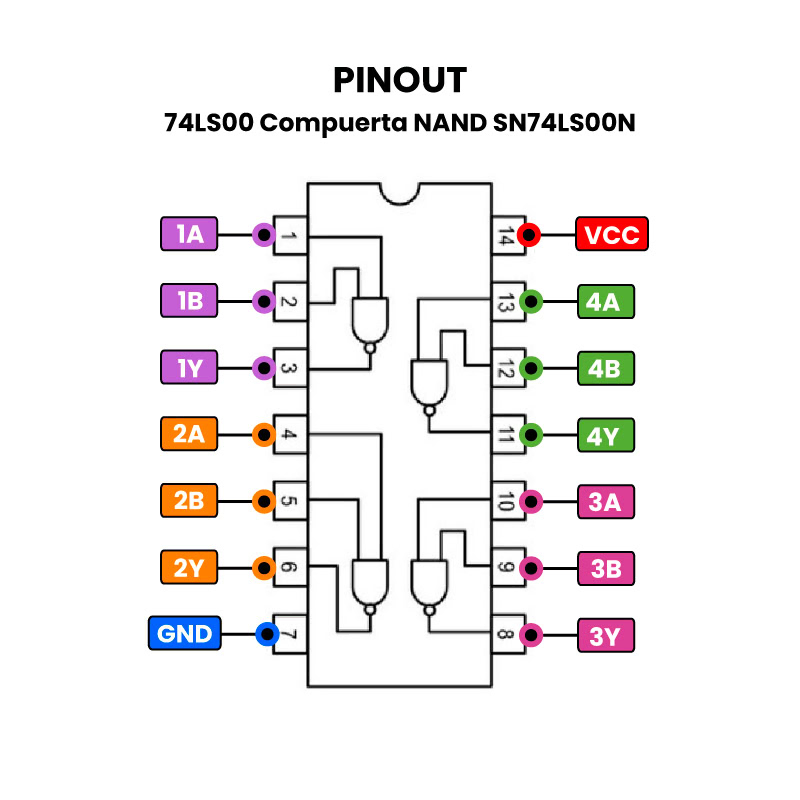

The 74LS00 NAND Gate is an integrated circuit consisting of four two-input NAND gates.
The NAND logic gate performs the negated operation; with this logic gate, we can invert a signal or generate a logic signal to activate another integrated circuit.
It is used for various electronics experiments to implement any logical function in industry and is used in signal processing applications. These types of logic gates are easy to use, as they can be connected to breadboards and, with the help of connecting wires, either breadboard wire or Dupont cables, different connections can be made between the gates.
SPECIFICATIONS AND FEATURES
- Type: NAND Logic Gate
- Registration number: 74LS00
- Logical family: TTL
- Encapsulation: PDIP-14
- Mounting: THT
- Pitch: 2.54 mm
- Number of pins: 14
- Number of Channels: 4
- Operating voltage: 5.25 V to 4.75 V
- Current consumption: 8 mA
- Operating temperature: 75 °C to 0 °C
- Measurements: 4.57 x 19.3 x 6.35 mm
- Weight: 1.5 g
