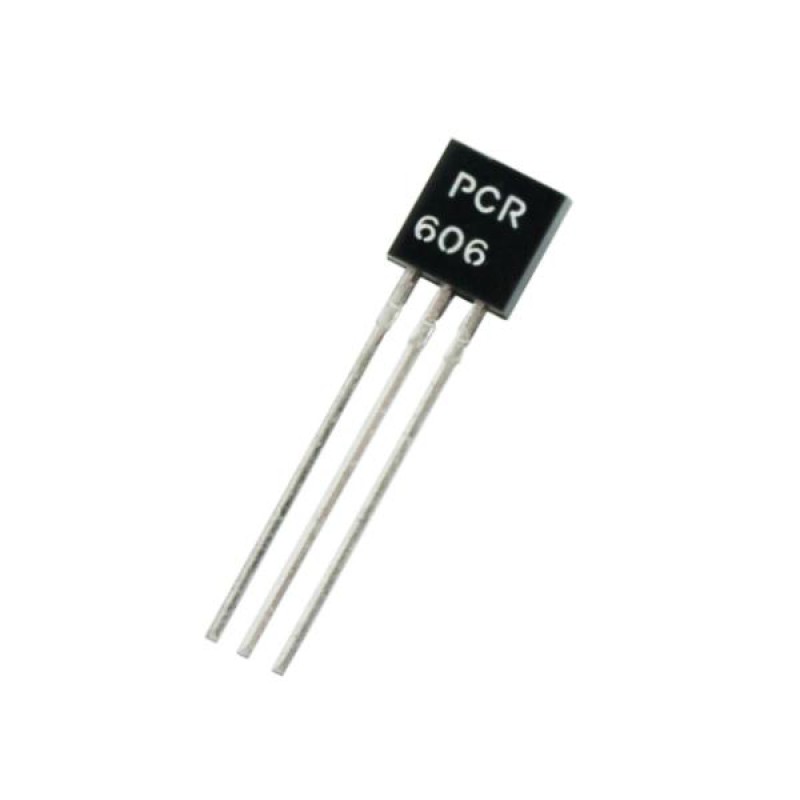

The PCR6060 is a Logic Level Thyristor which is commonly used with microcontrollers and other low voltage systems for switching applications. The Thyristor has an on-state current of 600mA with a reverse blocking voltage of 600V.

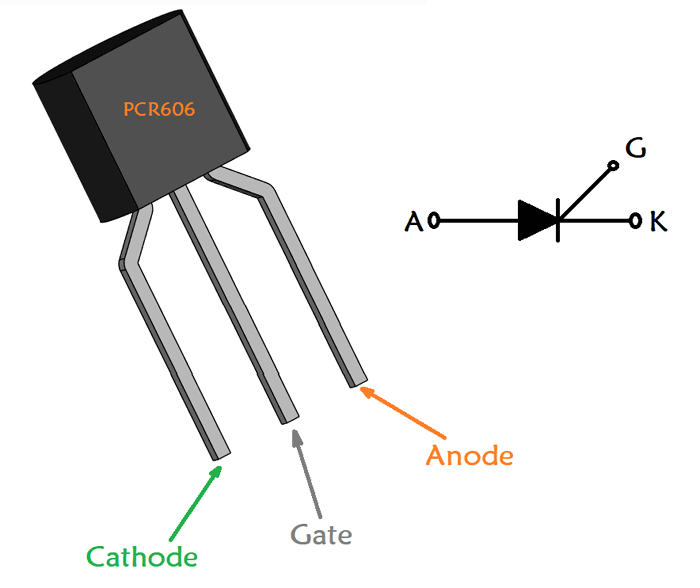

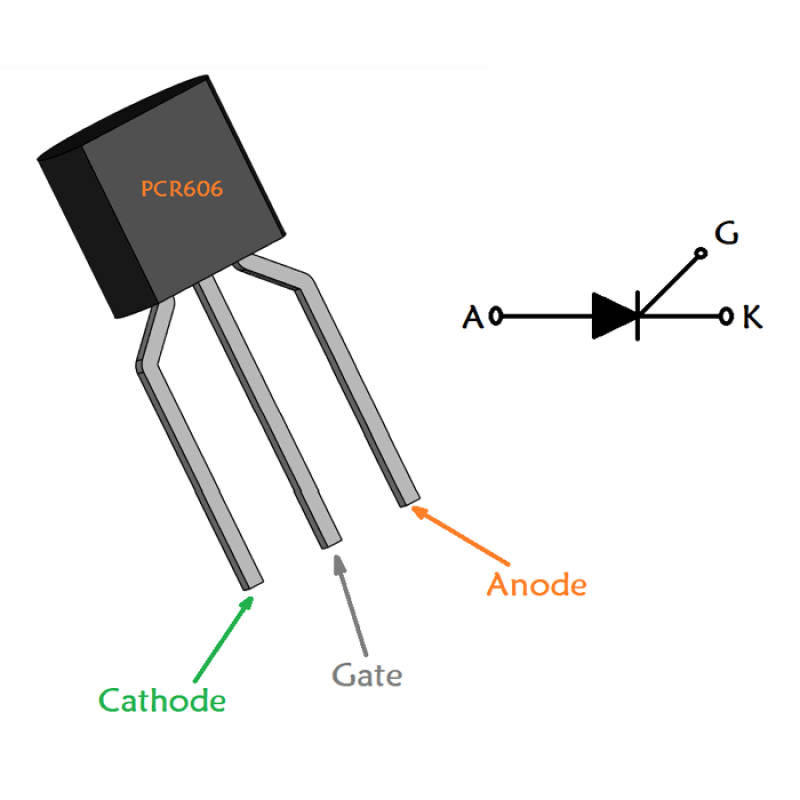

Pin Description
|
Pin Number |
Pin Name |
Description |
|
1 |
Anode |
Anode pin of the Thyristor , current flows in through Anode |
|
2 |
Cathode |
Cathode pin of the Thyristor, current exists through Cathode |
|
3 |
Gate |
Gate pin – used to turn on or off the Thyristor |
Features
- Logic Level Thyristor
- On-state current (IRMS) is 600mA
- Blocking Voltage (VDRM) is 600 V
- Gate Trigger Voltage (VGT) is 0.8V
- Holding current: 5mA
- Available in To-92 and SOT-23 Package
