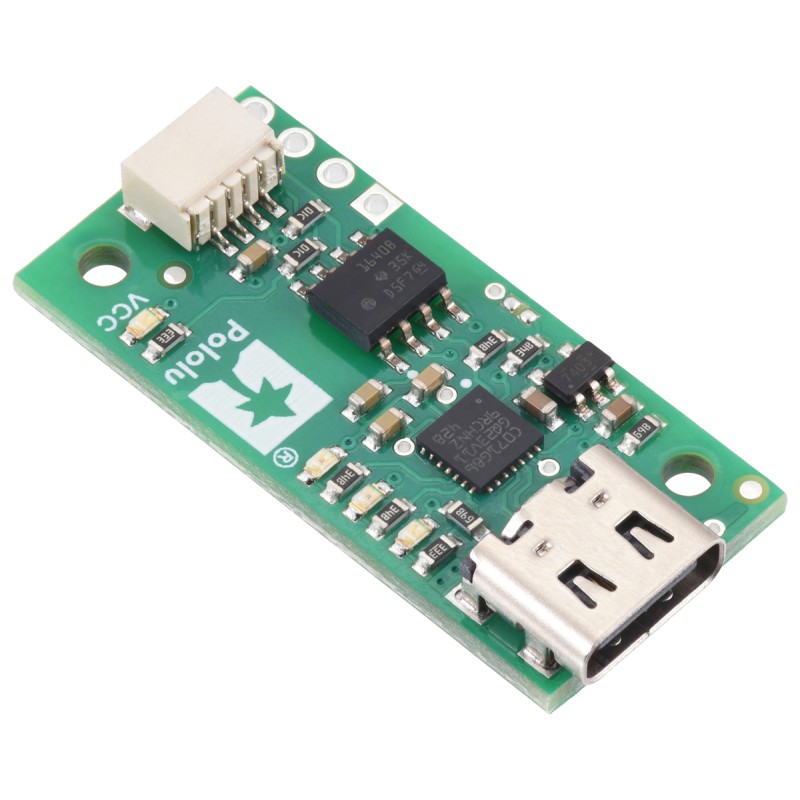

This USB-to-I²C adapter functions as a bridge between I²C devices and a PC or other USB host, enabling the USB host to serve as an I²C controller and communicate with target devices on the I²C bus. It supports bidirectional communication with clock stretching and I²C clock speeds beyond 1000 kHz.
The adapter provides full galvanic isolation between the USB and I²C sides, which prevents unexpected current flow between the USB host and the I²C bus and protects the USB host from damaging voltages on the I²C bus (the adapter would be damaged under such conditions, but those voltages would not be able to propagate through to the USB side).

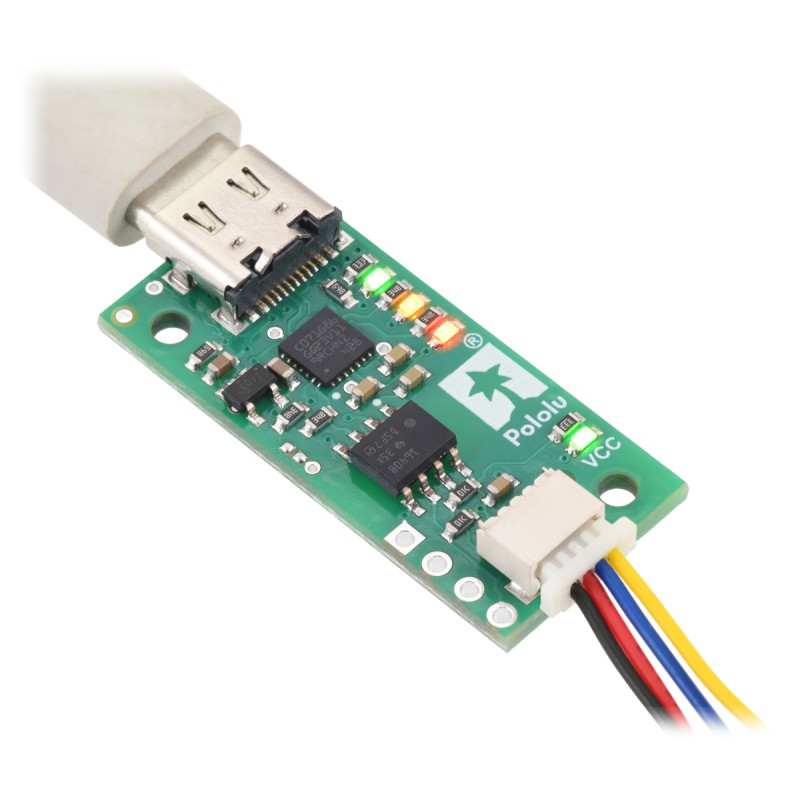

The module features a USB Type-C connector. On the USB side, the adapter acts as a virtual serial port (CDC ACM), so it is recognized by major operating systems (e.g. Windows 10 and later, Linux, and macOS) without requiring any driver installation. This means the adapter can be used with any programming environment that allows writing and reading binary data from a serial port (see the user’s guide for documentation on the communication protocol). We provide a Python library for the adapter to make it easy to get started in Python, and the firmware for the adapter’s STM32C071G8 microcontroller is open source for those who want to understand better how it works or customize the behavior.

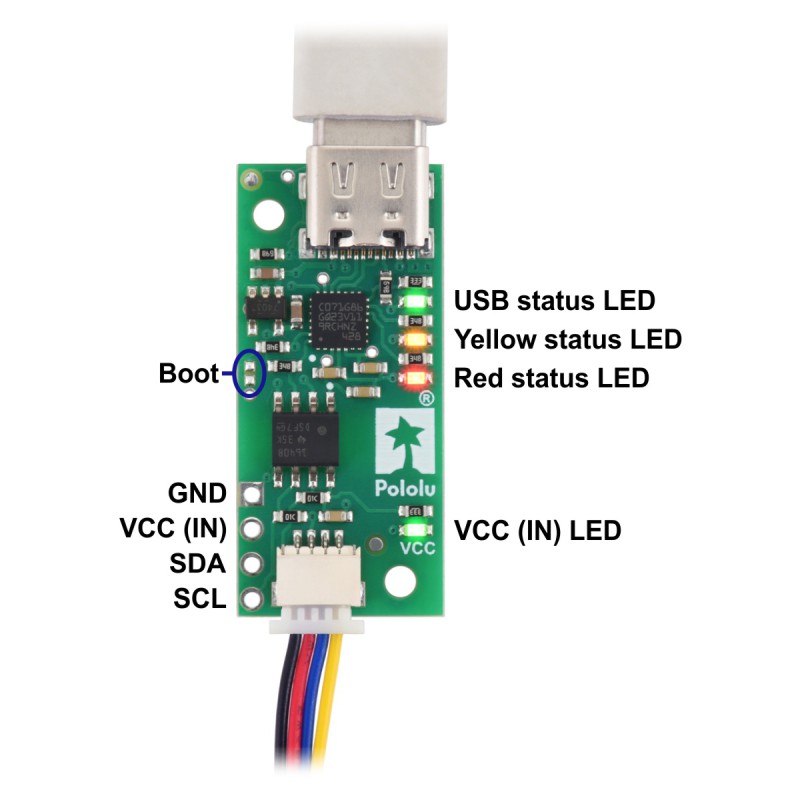

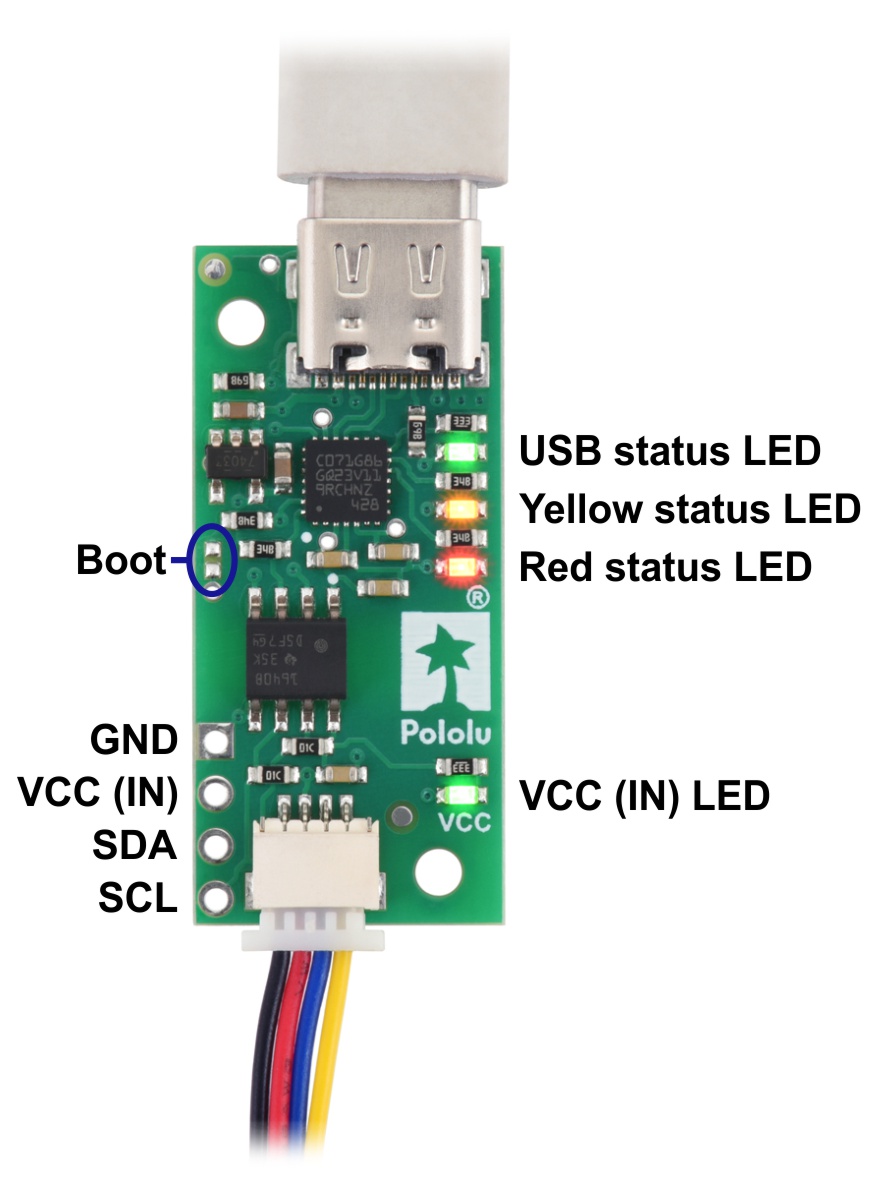

| Pin | Cable color | Function |
|---|---|---|
| 1 | Black | I²C ground (GND); this pin is NOT connected to USB GND |
| 2 | Red | I²C input voltage (VCC); user must supply 2.25 V to 5.5 V across this pin and GND |
| 3 | Blue | I²C data line (SDA) |
| 4 | Yellow |
I²C clock line (SCL) |
Dimensions
| Size: | 1.32″ × 0.60″ × 0.19″ |
|---|---|
| Weight: | 2.4 g |
Identifying markings

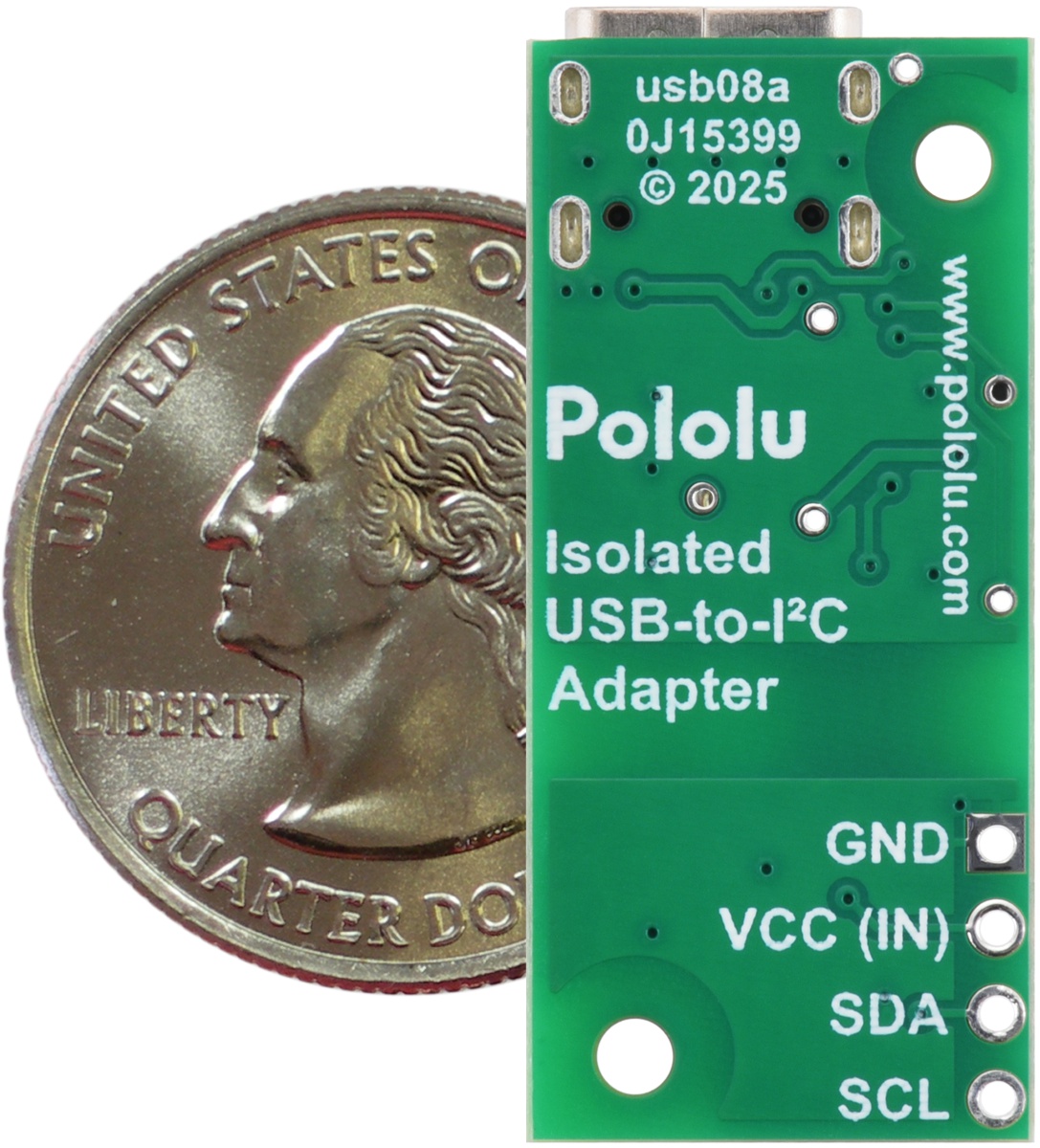

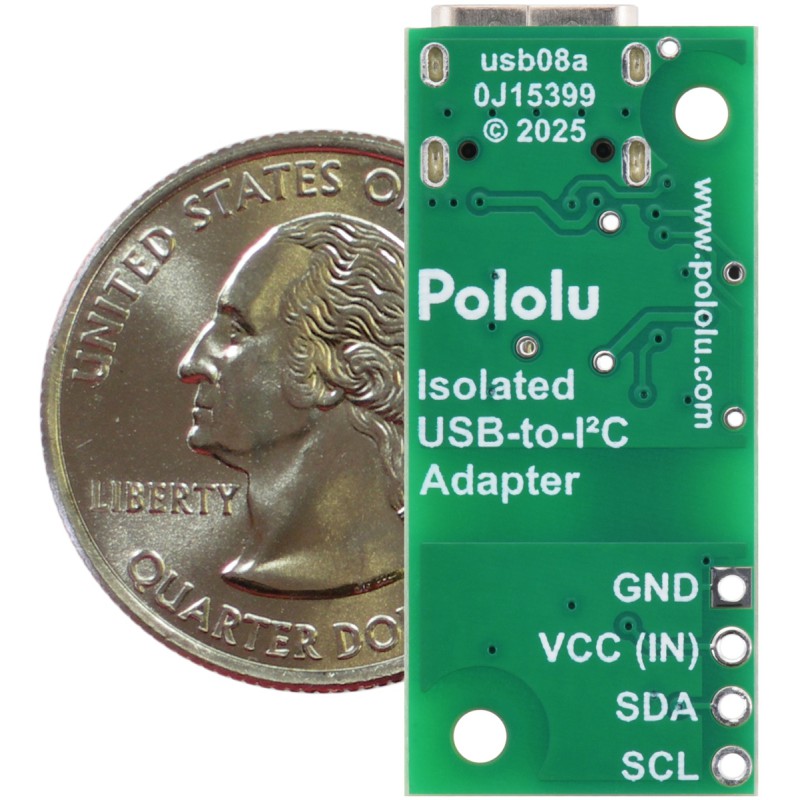

| PCB dev codes: | usb08a |
|---|---|
| Other PCB markings: | 0J15399 |
