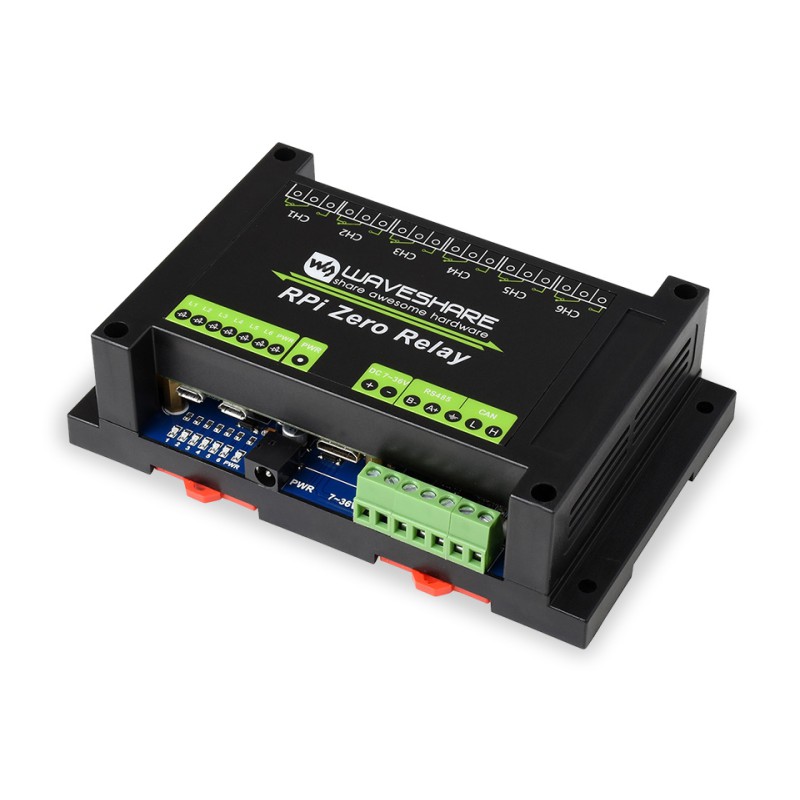

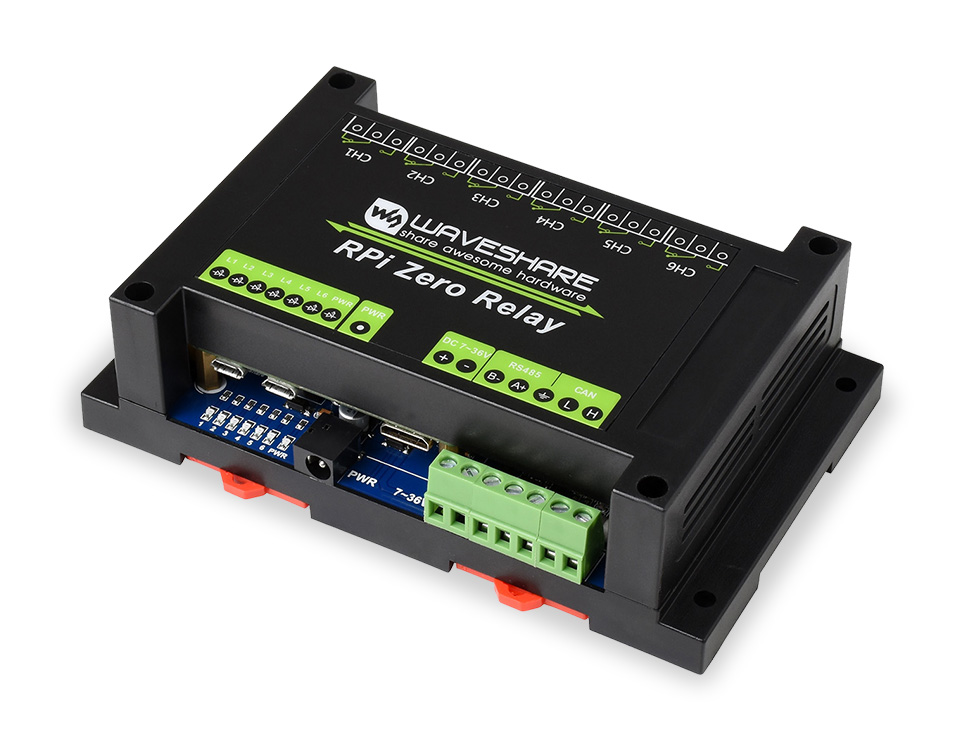

Industrial 6-Channel Relay Module
Designed for Raspberry Pi Zero WH
RS485/CAN bus, power supply isolation & photocoupler isolation
Features at a glance
- RS485 half-duplex communication: using SP3485, UART control, auto RX/TX switch
- CAN half-duplex communication: using MCP2515 + SN65HVD230 solution, SPI control
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard resettable fuses and protection diodes, ensuring current/voltage stable output, preventing over current/voltage, better shock proof performance
- High quality relay, contact rating: ≤10A 250V AC or ≤10A 30V DC

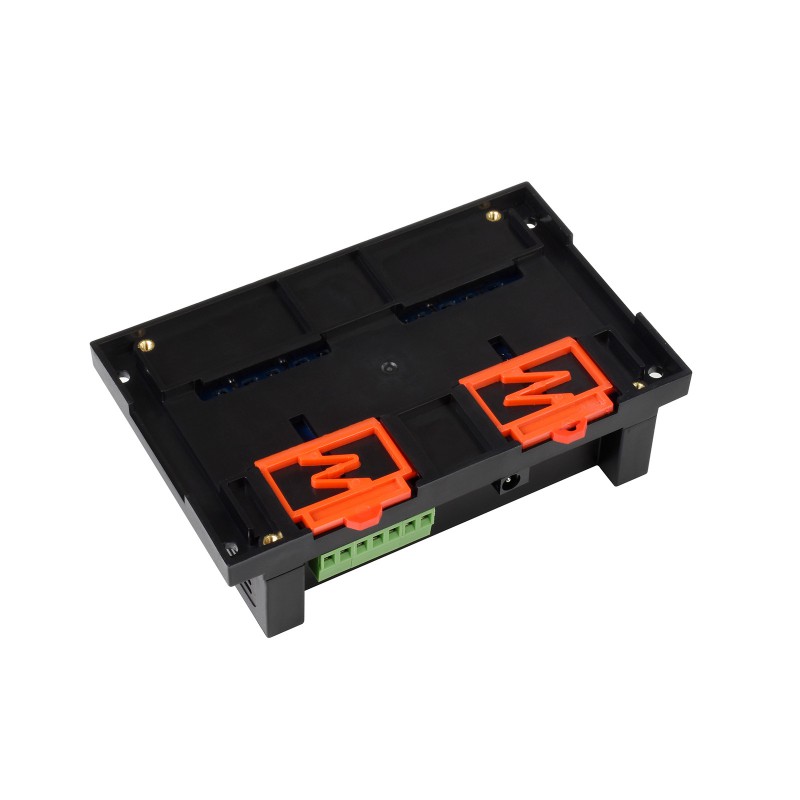

- ABS protection enclosure with rail-mount support, easy to install, safe to use
- Comes with development resources and manual (wiringPi and python examples)

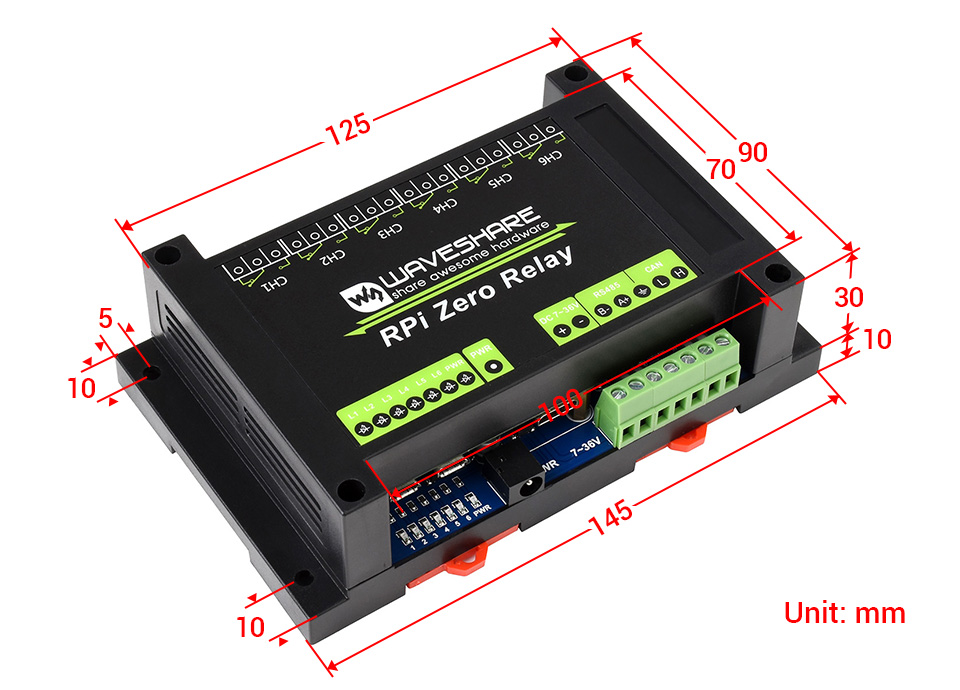

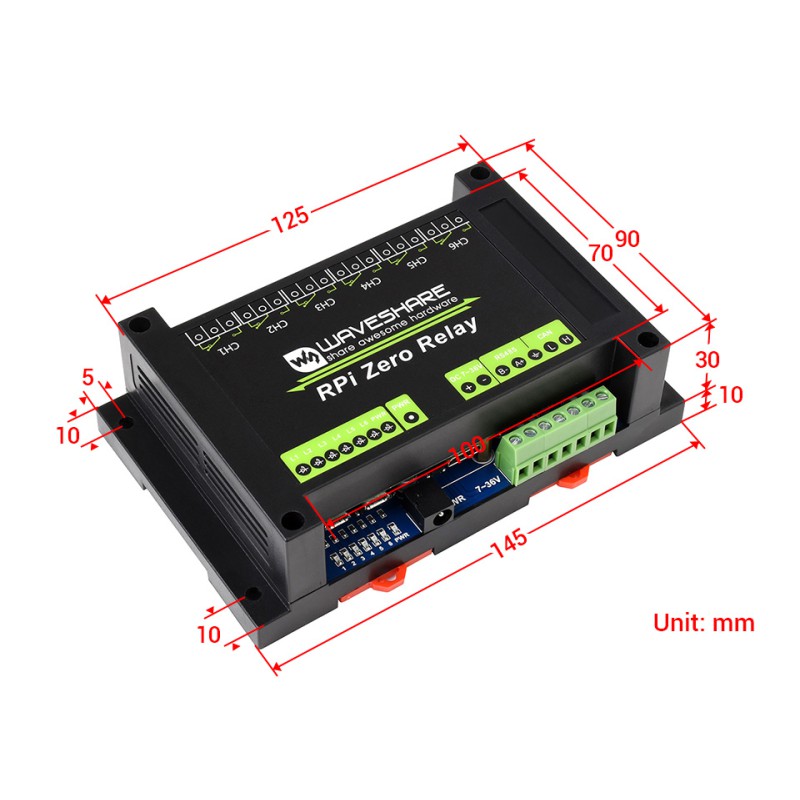

Specifications
| Operating voltage | 7V~36V (industrial input voltage compatible) | Relay channel | 6 ch |
|---|---|---|---|
| Communication protocol | RS485, CAN | Contact form | 1NO 1NC |

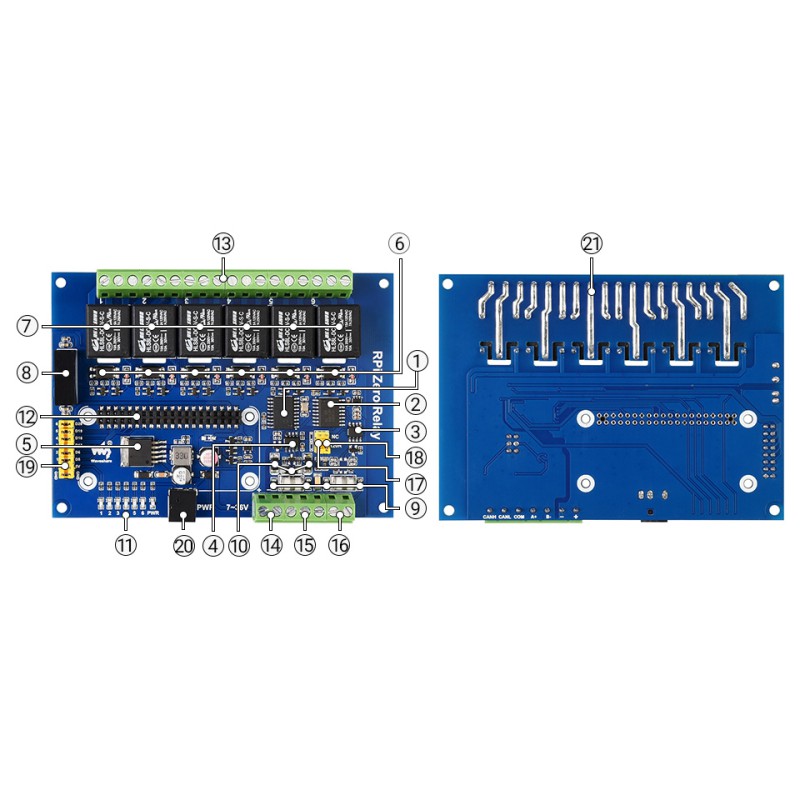

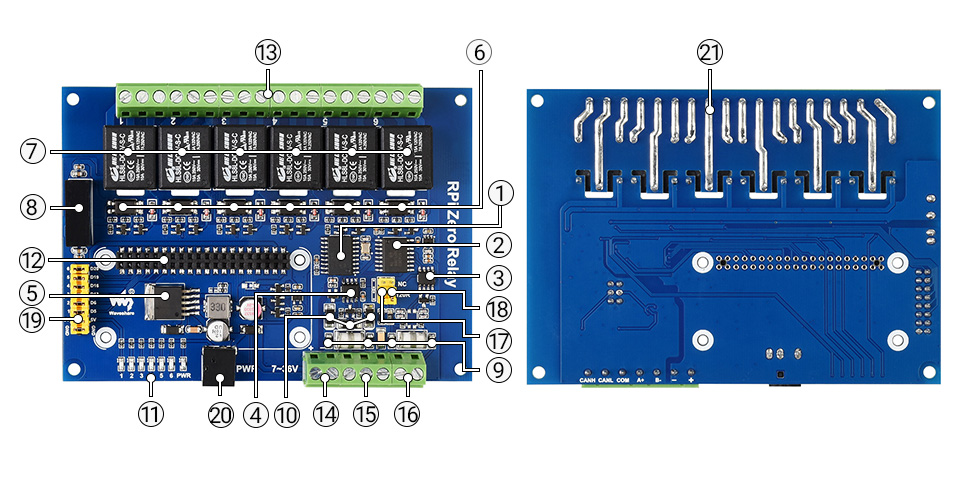

- MCP2515
CAN controller - SI8642ED-B-IS
digital isolator - SN65HVD230
CAN transceiver - SP3485EN
RS485 transceiver - LM2596 voltage regulator
providing stable 5V voltage - Photocoupler isolation
prevent interference from external high-voltage circuit connected to the relay - 6-channel quality relays
contact rating per channel: ≤10A 250V AC or ≤10A 30V DC - Power supply isolation
provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Resettable fuses
- TVS diodes
- Relay and power indicators

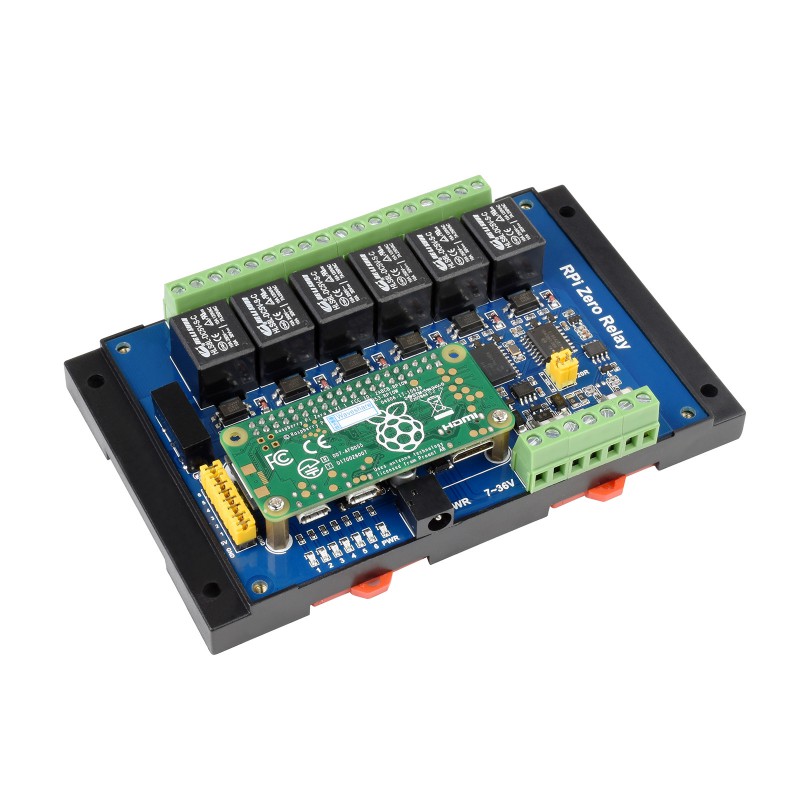

- 40PIN GPIO header

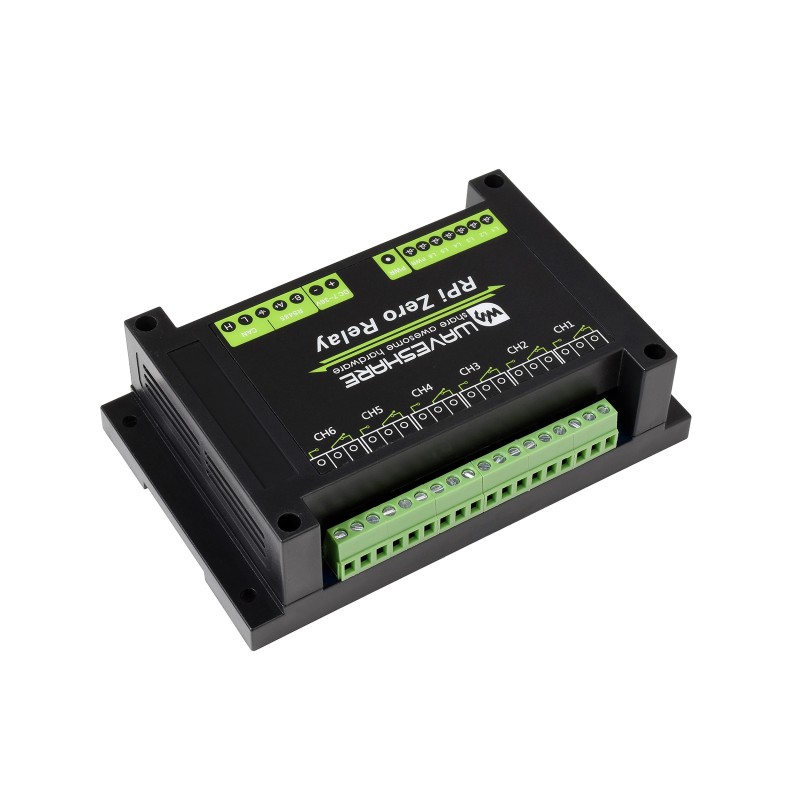

suitable for Raspberry Pi Zero with pre-soldered pinheader - Relay screw terminals
for connecting with user devices - Power supply screw terminals
- RS485 bus interface
- CAN bus interface
- RS485 120Ω terminal resistor switch
- CAN 120Ω terminal resistor switch
- Relay control pins
- External power supply jack
- Thickened tracks
allows large current devices
