Multi-Chassis - 4WD Kit Basic

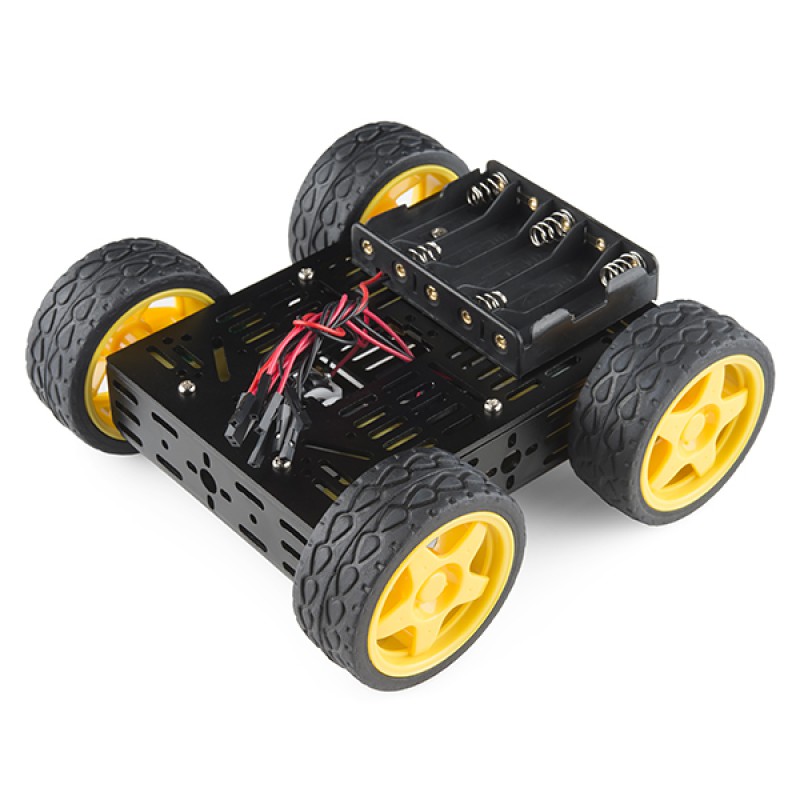

This is the Multi-Chassis Basic 4WD Kit, an easy to assemble and use robot chassis platform.
TheMulti-Chassis kit provides you with everything you need to give your robot a fast four wheel drive platform with plenty of room for expansion to add
various sensors and controllers. All you need to do is supply is a basic motor driver and power and you'll be ready to drive!
This Multi-Chassis Basic 4WD Kit includes four 48:1 DC gearboxes that independently drive each of the 65mm low-profile wheels.
Each side of the 2.5mm thick aluminum frame comes cut with plenty of attachment points to add a multitude of different robot controllers, drivers, and sensors.
Note:A building instruction booklet with a complete list of items included is inside this kit and in the documents section below.
This comes as a kit but includes all the hardware and tools necessary for assembly.
Dimensions:
- Completed Kit Size - 165L x 157W x 65H mm
- Wheel Diameter - 65 mm

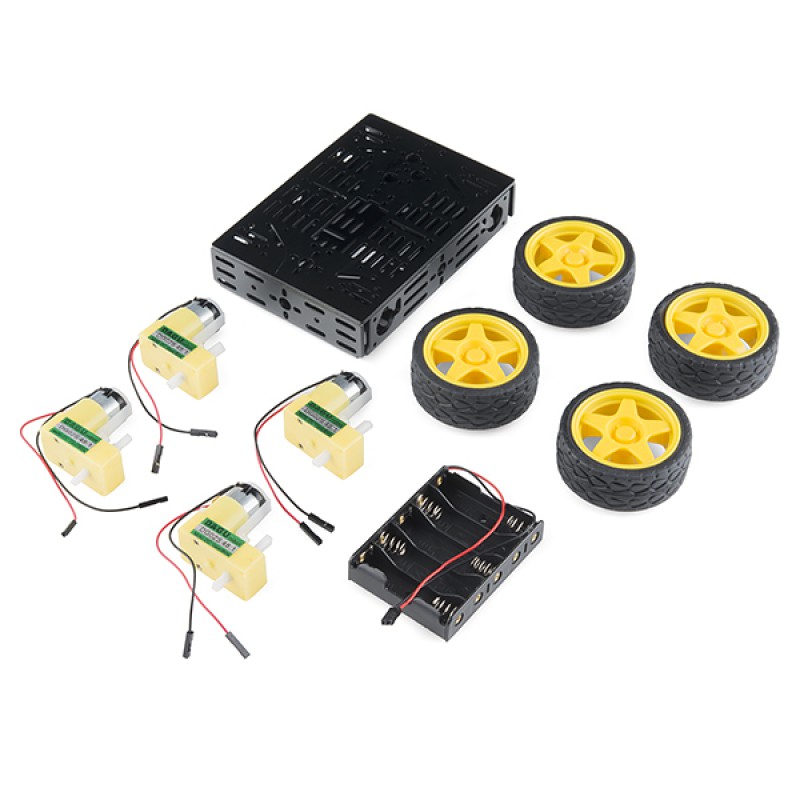

Kit Includes:
- 1x Aluminum Frame
- 4x 65 mm Diameter 48:1 DC Gearbox
- 4x Low-Profile Wheel
- 4x M3 25mm Standoff
- 6x M3 8mm Screw
- 4x M2.5 25mm Screw
- 4x 2.5 20mm Screw
- 8x M3 8mm Screw
- 8x M2.5 Nut
- 2x M3 Nut
- 1x 5 AA Battery Holder
- 1x Spanner
- 1x Screw Driver
Documents:
- Datasheet (DG02S Gearbox)
- Instruction Booklet
- Product Video
