ESP-12E - WiFi Module

₪30

תיאור

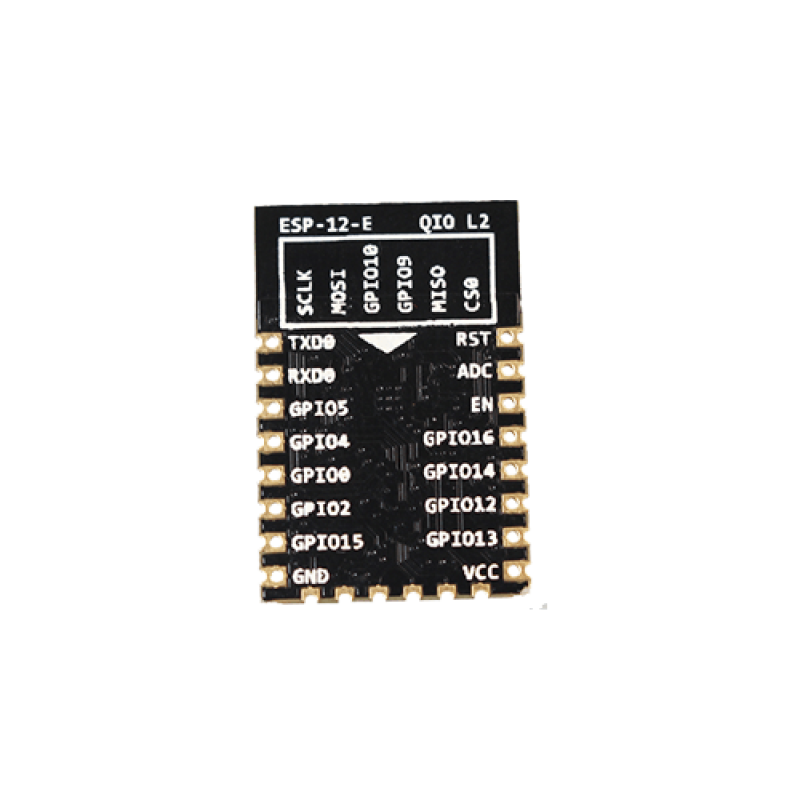

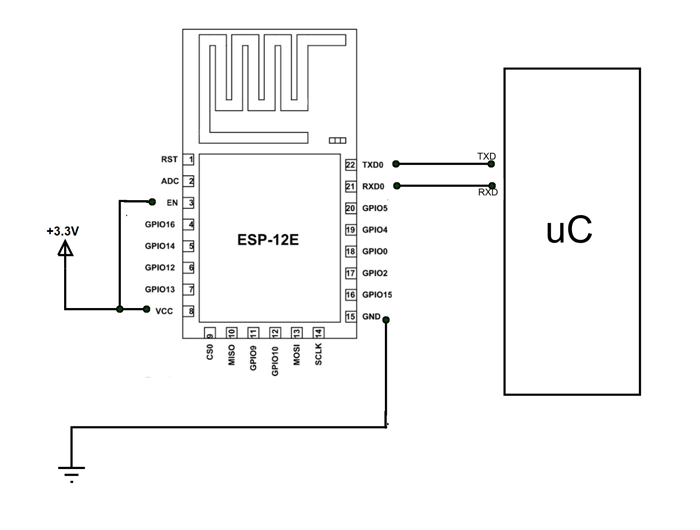

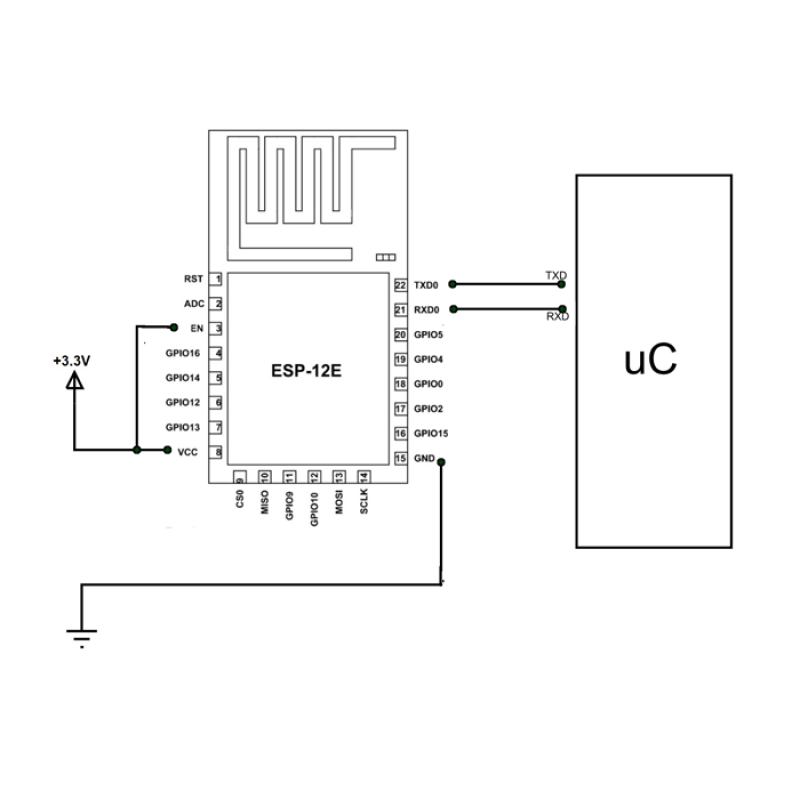

ESP-12E is a miniature Wi-Fi module present in the market and is used for establishing a wireless network connection for microcontroller or processor. The core of ESP-12E is ESP8266EX, which is a high integration wireless SoC (System on Chip). It features ability to embed Wi-Fi capabilities to systems or to function as a standalone application. It is a low cost solution for developing IoT applications.

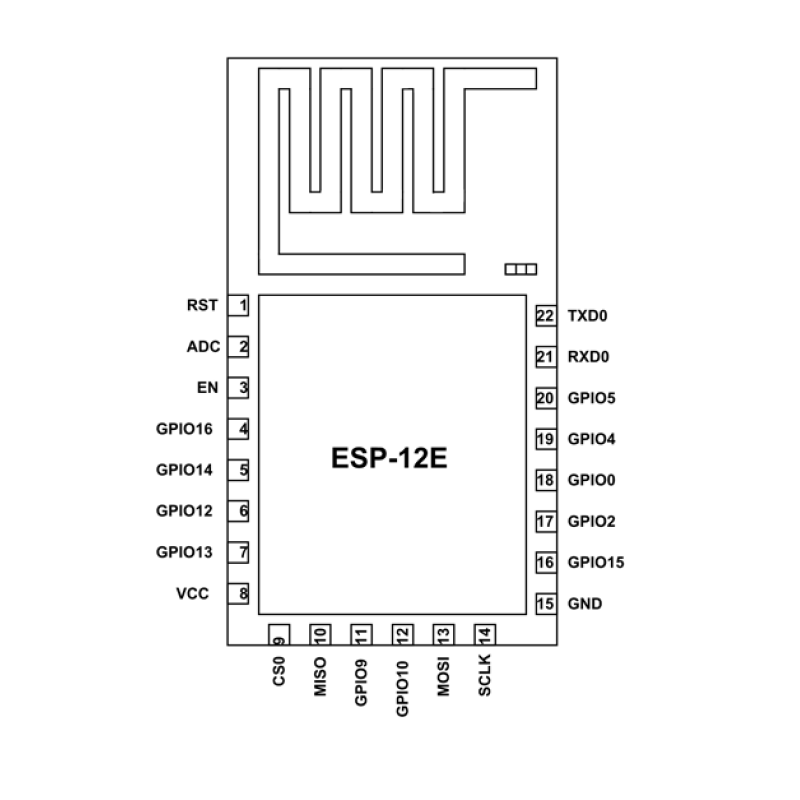

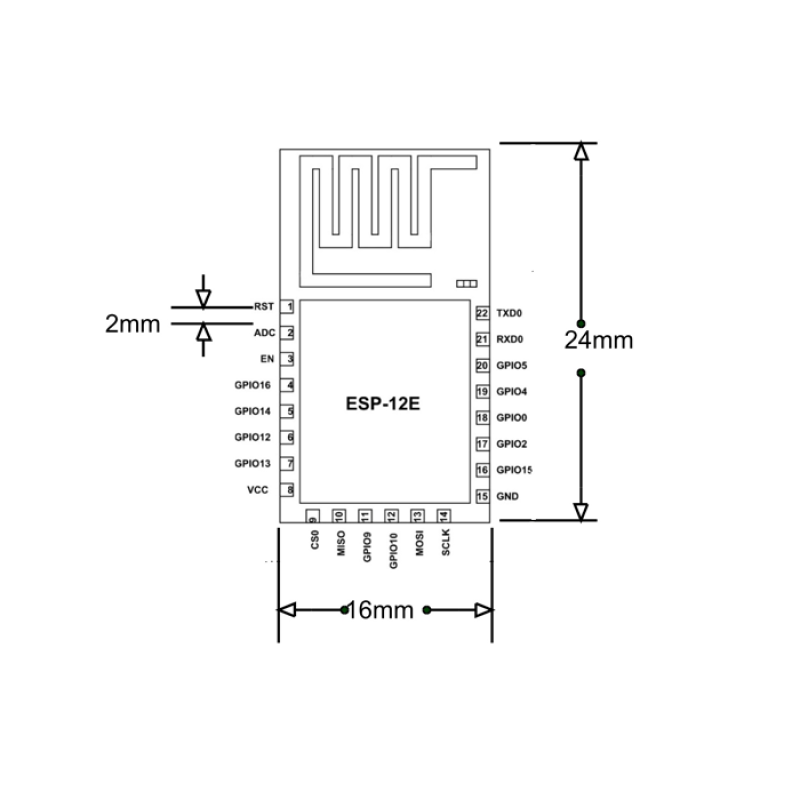

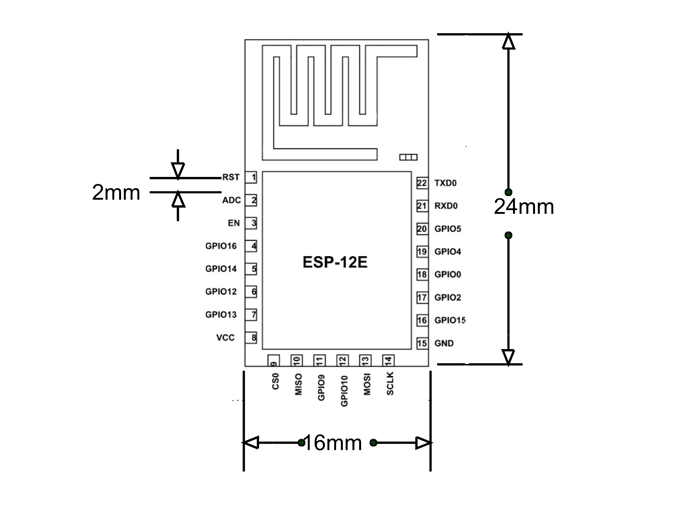

ESP12E Pinout Configuration

The ESP-12E module has twenty two pins and we will describe function of each pin below.

Pin	Name	Description
1	RST	Reset Pin of the module
2	ADC	Analog Input Pin for 10-bit ADC (0V to1V)
3	EN	Module Enable Pin (Active HIGH)
4	GPIO16	General Purpose Input Output Pin 16
5	GPIO14	General Purpose Input Output Pin 14
6	GPIO12	General Purpose Input Output Pin 12
7	GPIO13	General Purpose Input Output Pin 13
8	VDD	+3.3V Power Input
9	CS0	Chip selection Pin of SPI interface
10	MISO	MISO Pin of SPI interface
11	GPIO9	General Purpose Input Output Pin 9
12	GPIO10	General Purpose Input Output Pin 10
13	MOSI	MOSI Pin of SPI interface
14	SCLK	Clock Pin of SPI interface
15	GND	Ground Pin
16	GPIO15	General Purpose Input Output Pin 15
17	GPIO2	General Purpose Input Output Pin 2
18	GPIO0	General Purpose Input Output Pin 0
19	GPIO4	General Purpose Input Output Pin 4
20	GPIO5	General Purpose Input Output Pin 5
21	RXD0	UART0 RXD Pin
22	TXD0	UART0 TXD Pin
