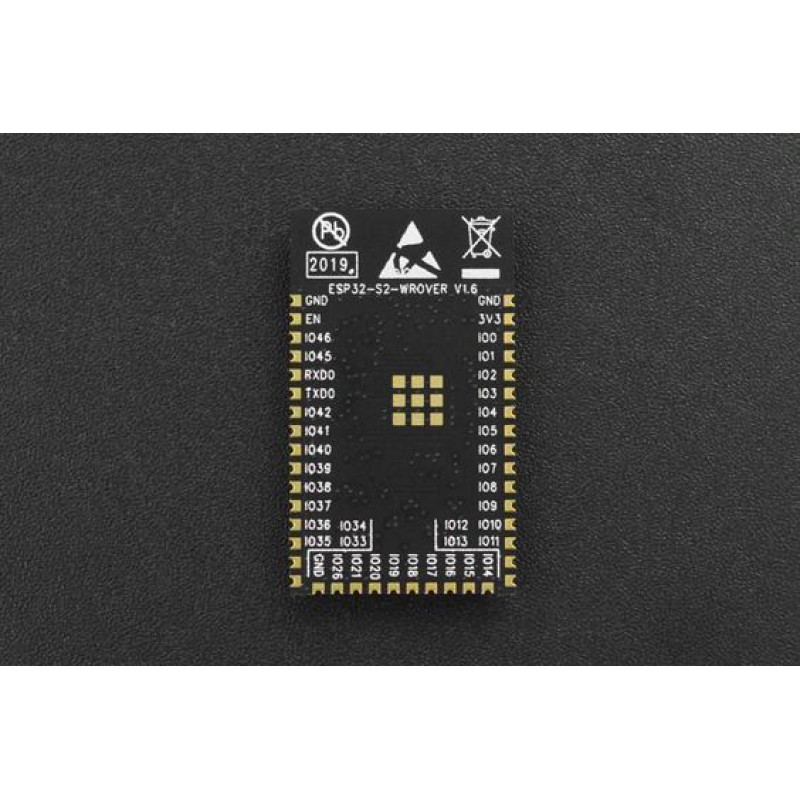

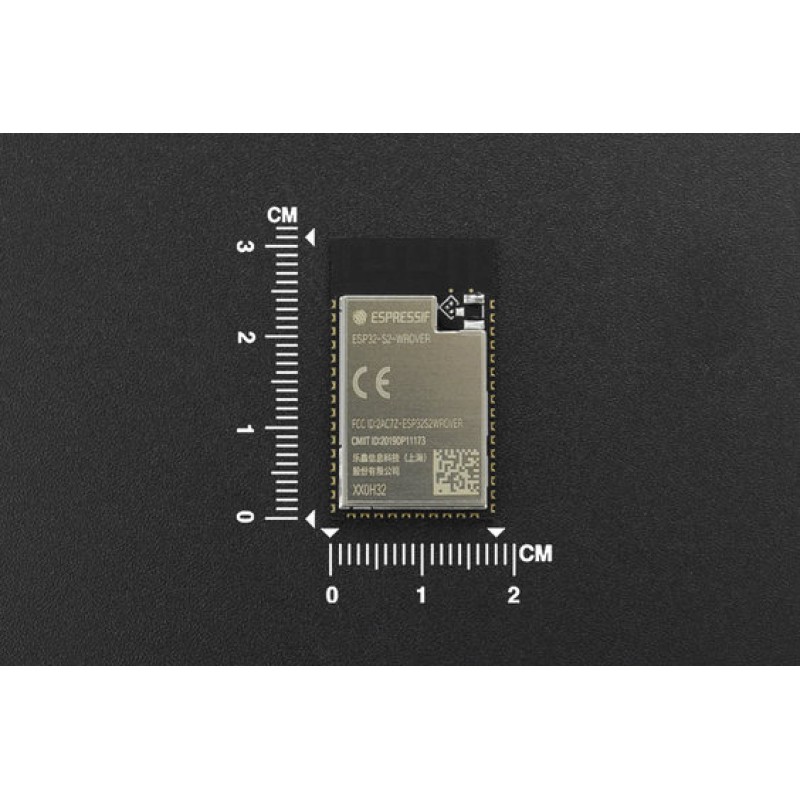

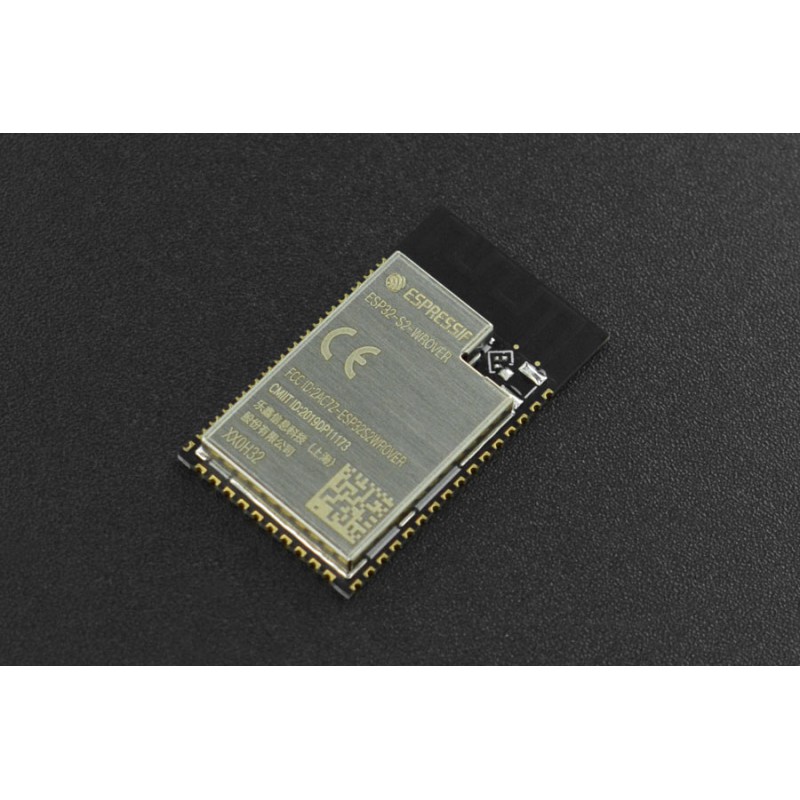

ESP32-S2-WROVER Wi-Fi Module (PCB Antenna)
ESP32-S2-WROVER is a generic WiFi MCU module featuring rich peripherals and high performance. Integrated 42 pins, 4MB flash and 2MB PSRAM, this module has more data buffer, which is ideal for applications like audio & video processing.
At the core of this module is the ESP32-S2 chip. ESP32-S2 is based on the Xtensa® 32-bit LX7 CPU that can operate at up to 240Mhz. The ULP coprocessor can run while the chip is in sleep mode(CPU powered down), which allows it to be used to monitor the state change of peripheral devices or detect if an analog quantity exceeds the preset threshold. Moreover, the ESP32-S2 provides a rich set of peripheral interfaces including SPI, I2S, UART, I2C, LED_PWM, LCD interface, camera interface, ADC, DAC, touch sensor, temperature sensor, as well as 43 GPIOs. It also includes a full-speed USB On-The-Go (OTG) interface to enable USB communication.
Note: This module is recommended for developers currently. The peripheral circuit needs to be soldered when using, and few peripheral interfaces may not perform the full functionality of the sample code. There are still bugs that have to be found and fixed.
Specification
WiFi
Hardware
Certification
Test
