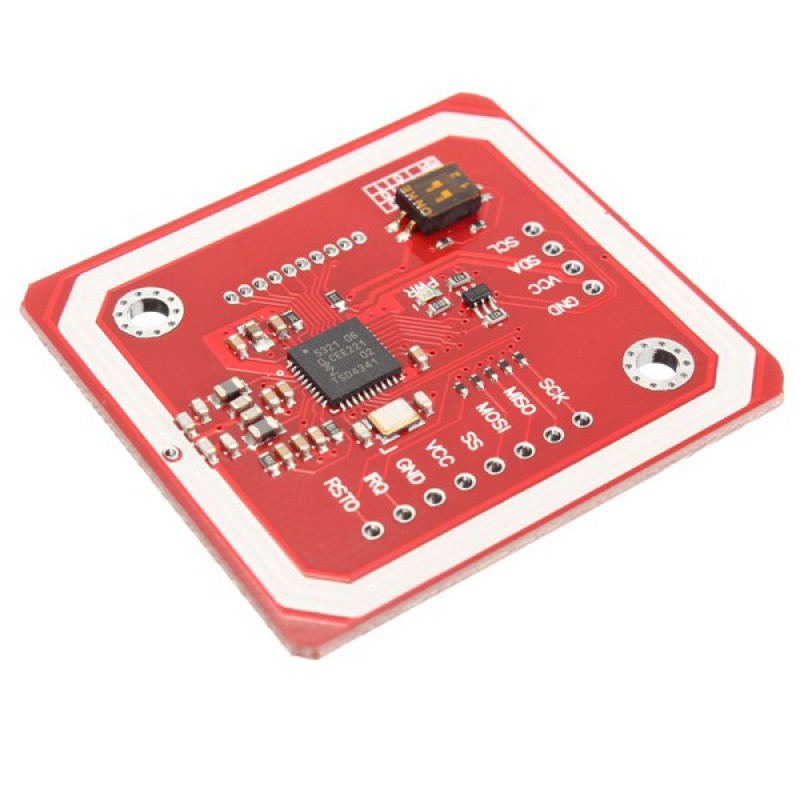

Small dimension and easy to embed into your project
Support I2C, SPI and HSU (High Speed UART), easy to change between those modes
Support RFID reading and writing, P2P communication with peers, NFC with Android phone

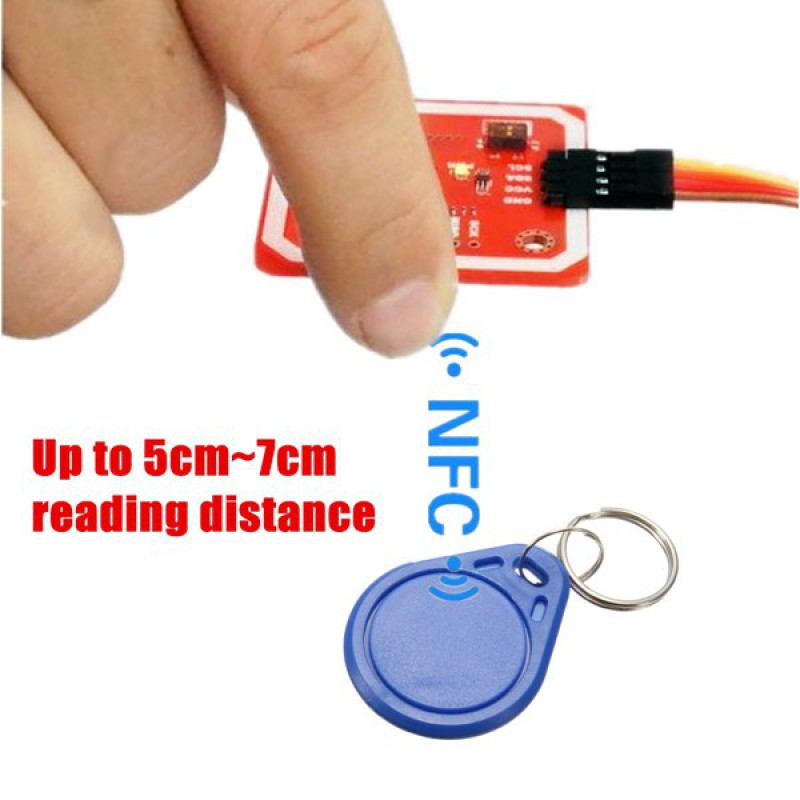

Up to 5cm~7cm reading distance
On-board level shifter, Standard 5V TTL for I2C and UART, 3.3V TTL SPI
Arduino compatible, plug in and play with our shield
Size: 43*40mm
RFID reader/writer supports:
Mifare 1k, 4k, Ultralight, and DesFire cards
ISO/IEC 14443-4 cards such as CD97BX, CD light, Desfire, P5CN072 (SMX)
Innovision Jewel cards such as IRT5001 card
FeliCa cards such as RCS_860 and RCS_854
