Copernicus II DIP Module
The Copernicus II is a great new GPS module from Trimble,
but the SMD module prohibits immediate gratification.
This DIP allows the customer to gain direct
access to the pins on the SMD module. Simply provide 2.7 - 3.3VDC.

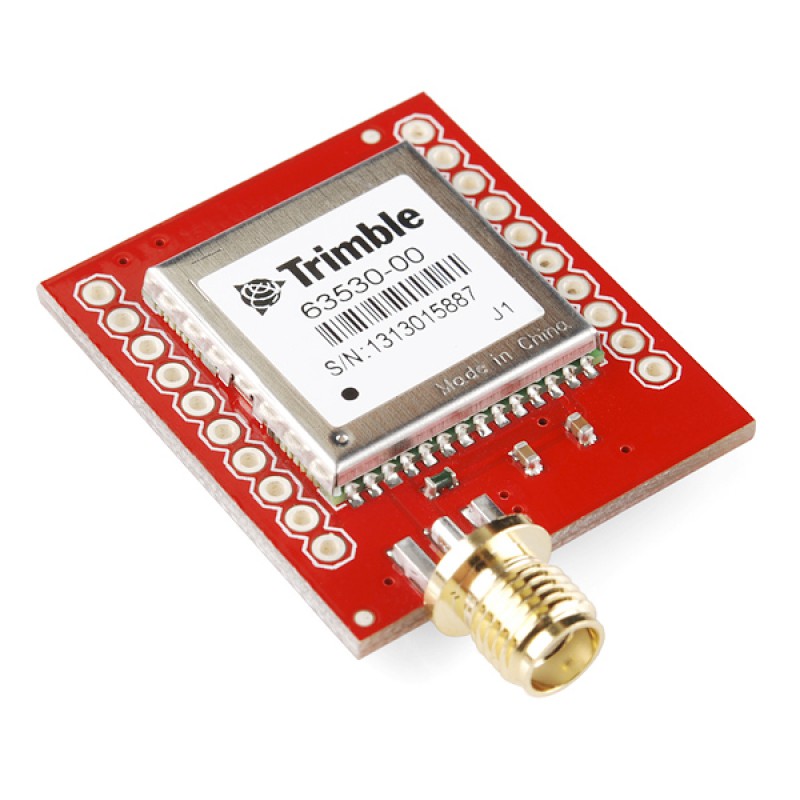

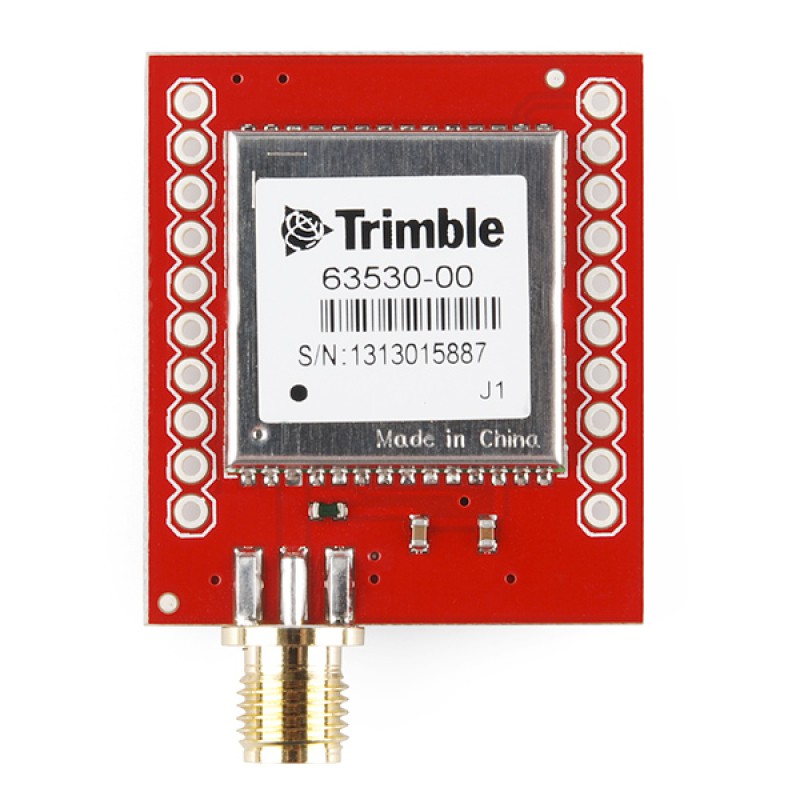

The Copernicus II DIP breakout has an impedance-matched, end-launch,
standard SMA connector that will mate with our SMA GPS antennas listed below.

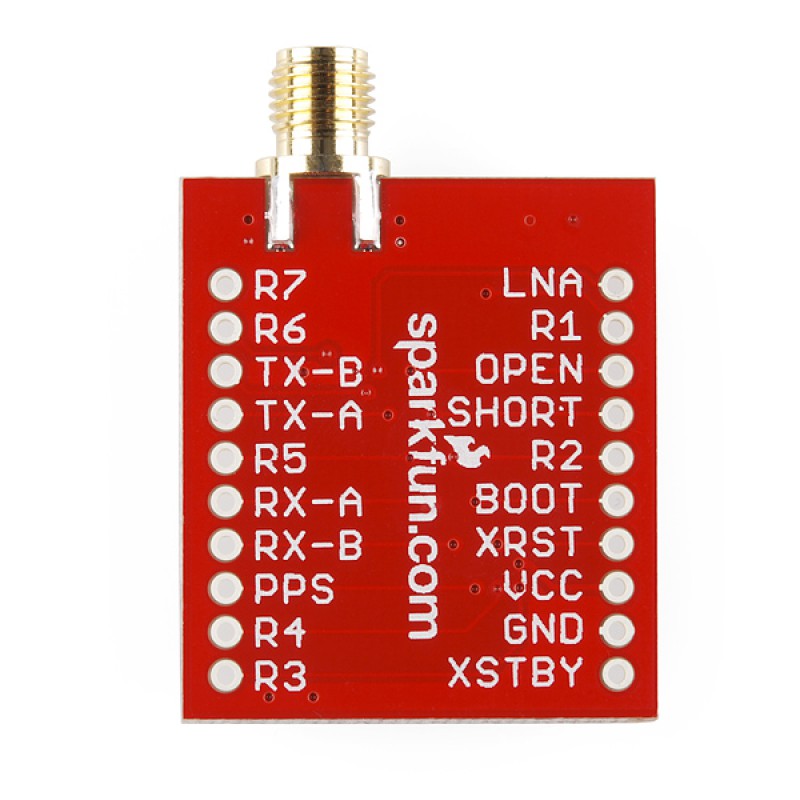

This revision of the board does away with the pin-headers so that
you can decide whether or not you want to solder pins to the board.
Check out our GPS buying guide!
מידות:

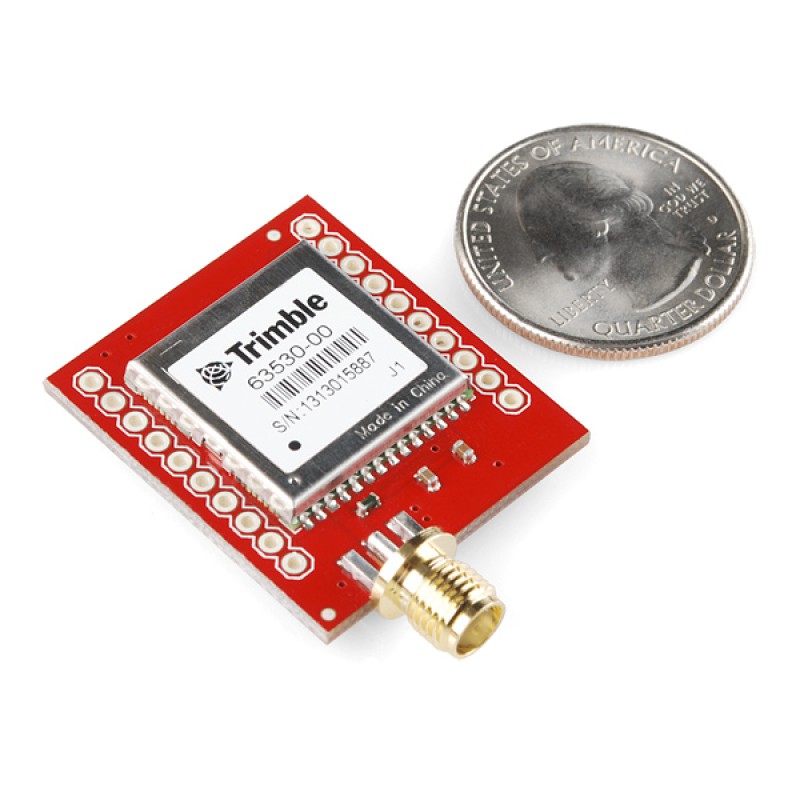

- 1.1 x 1.25"
- 0.9" between pins (bread board friendly)
