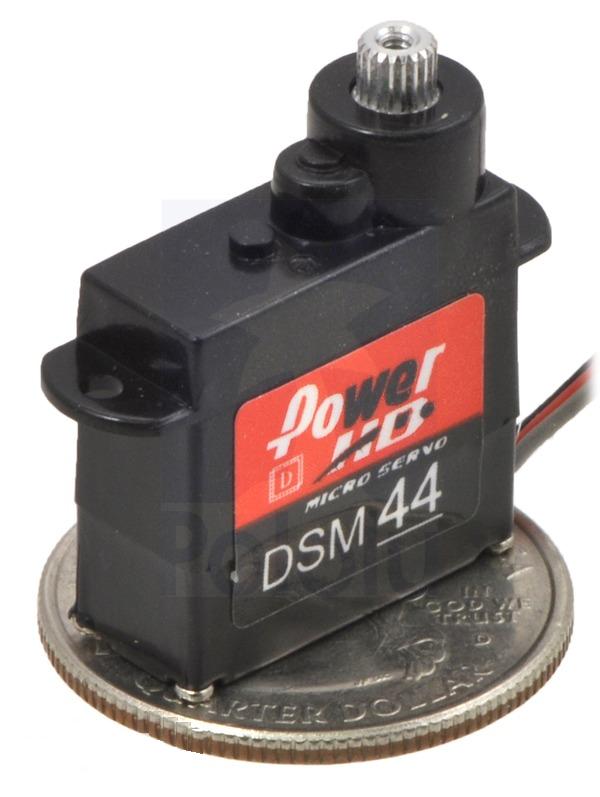

Power HD High-Speed Digital Micro Servo DSM44
The DSM44 digital servo from Power HD is a micro servo
with digital control electronics for enhanced performance
and metal gears for increased durability.
It is a great tiny actuator for robotic or RC mechanisms that need to be light, quick,
and strong. Servo horns and associated hardware are included.
Key specs at 6V: 0.07sec/60°, 22oz-in (1.6kg-cm), 6g.
The DSM44 digital servo from Power HD is a micro servo
with digital control electronics for increased performance.
It is one of the fastest and lightest micro servos we carry,
making it a great tiny actuator for robot mechanisms that need to be light, quick, and strong.
The output shaft is supported by a ball bearing for decreased friction,
and most of the gears are metal for increased durability.
The lead is terminated with a standard “JR”-style connector, which is Futaba-compatible.
Servo horns and associated hardware are included,
though the hardware might vary from what is shown in the picture below.
מידות
| Size: | 20 x 8.7 x 27 mm |
|---|---|
| Weight: | 6 g |
מאפיינים כלליים
| Digital?: | Y |
|---|---|
| Speed @ 6V: | 0.07 sec/60° |
| Stall torque @ 6V: | 1.6 kg·cm |
| Speed @ 4.8V: | 0.09 sec/60° |
| Stall torque @ 4.8V: | 1.2 kg·cm |
| Lead length: | 16 cm |
| Hardware included?: | Y |
| Maximum storage temperature: | 60 °C |
| Maximum operating temperature: | 50 °C |
