Dual Shaft Nema 34 CNC Stepper Motor 8.5Nm (1204oz.in) 5A 86x114mm

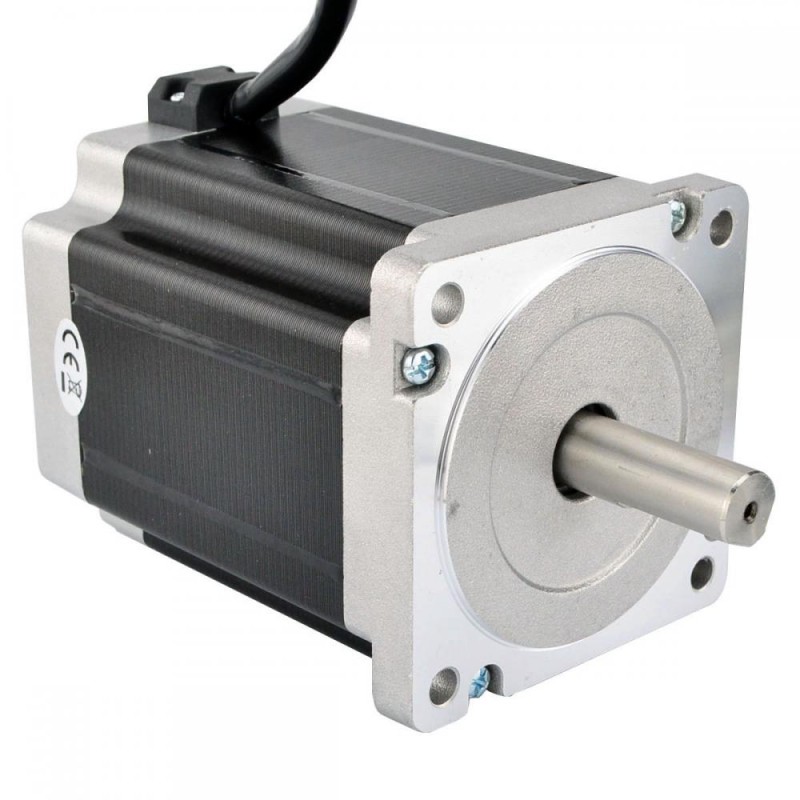

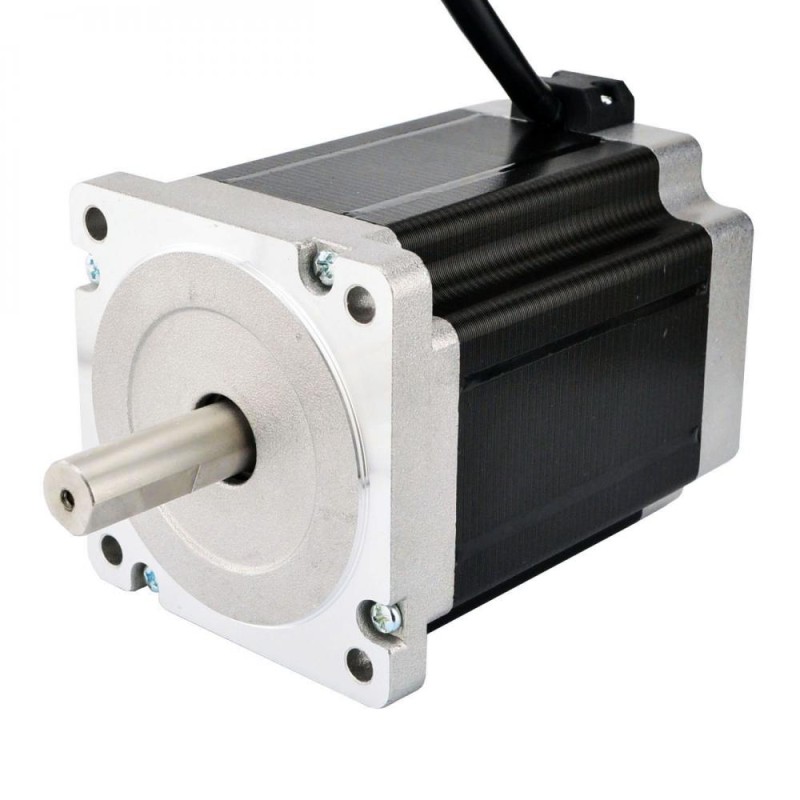

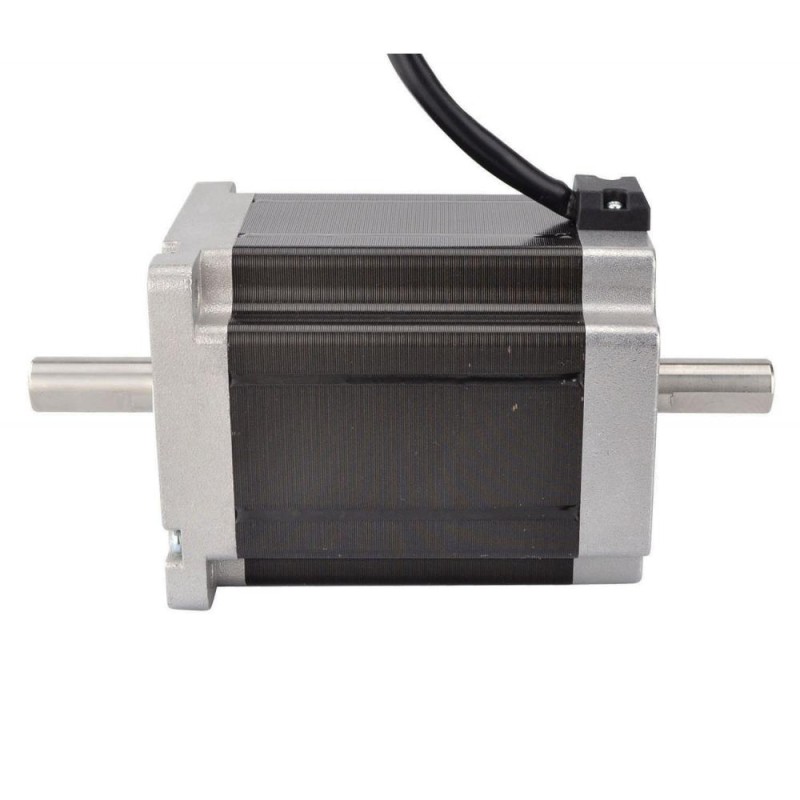

This Nema 34dual shaft stepper motorwith size 86x86x114mm. It has 4 wires, each phase draws 5.0A, with holding torque 8.5Nm (1204oz.in). A rear shaft can mount encoder, hand wheel or equals.
Electrical Specification
- Manufacturer Part Number: 34HS46-5004D
- Motor Type: Bipolar Stepper
- Step Angle: 1.8 deg
- Holding Torque: 8.5Nm(1204oz.in)
- Rated Current/phase: 5.0A
- Voltage: 5V
- Phase Resistance: 1.0ohms
- Inductance: 11mH ± 20%(1KHz)
Physical Specification
- Frame Size: 86 x 86mm
- Body Length: 114mm
- Shaft Diameter: Φ14mm
- Front Shaft Length: 37mm
- Rear Shaft Length: 34mm
- D-cut Length: 25mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 3.6kg
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Red
|
Green
|
Yellow
|
Blue
|
Resources
- Full Datasheet: 34HS46-5004D.pdf
- Torque Curve: 34HS46-5004D Torque Curve.pdf
