Servo - Generic Metal Gear Micro Size
Here is a simple, low-cost, high quality servo for all your mechatronic needs.
This servo is able to take in 6 volts and deliver 44.4 oz-in. of maximum torque at 0.18 sec/60°

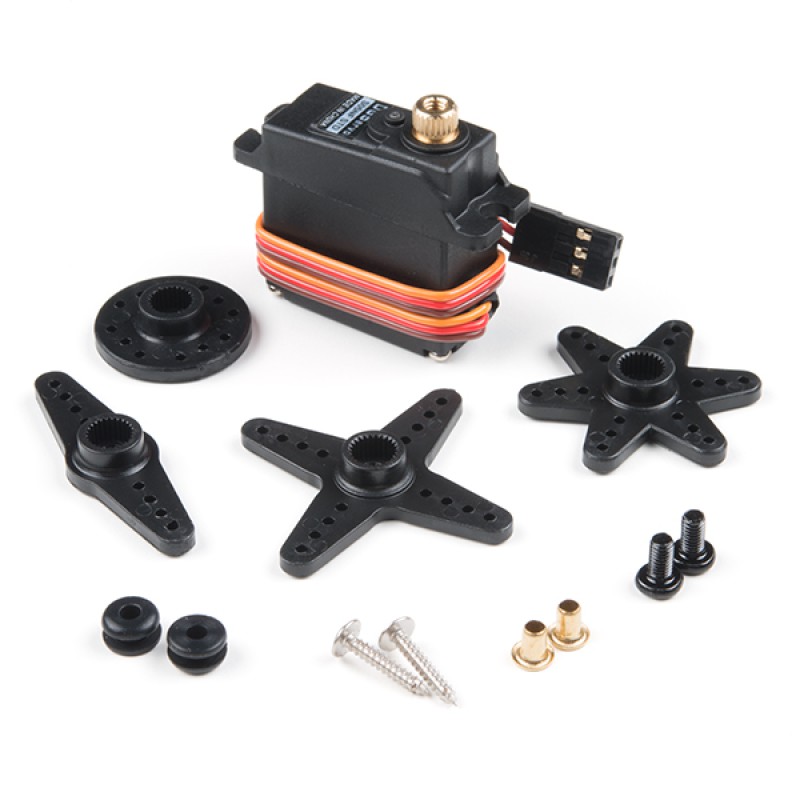

This is a small servo with a standard 3 pin power and control cable (red = power, brown = ground, and yellow = data), and all hardware listed below.
FEATURES:
- Voltage: 4.8-6.0 Volts
- Torque: 38.8/44.4 oz-in. (4.8/6.0V)
- Speed: 0.20/0.18 sec/60° (4.8/6.0V)
- Rotation: 180°
- Dual Ball Bearing
- Metal Gears* 28.8 x 13.8 x 30.2mm
- Wire Length: 180mm
- Weight: 20g
