Stepper Motor: Bipolar, 200 Steps/Rev, 42×11.6mm, 3.5V, 1 A/Phase

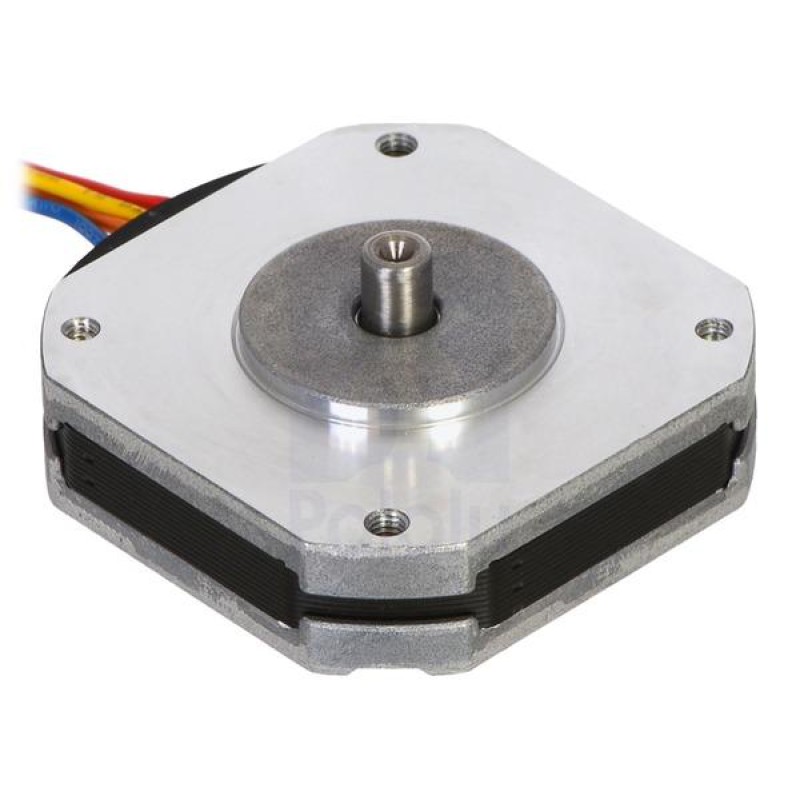

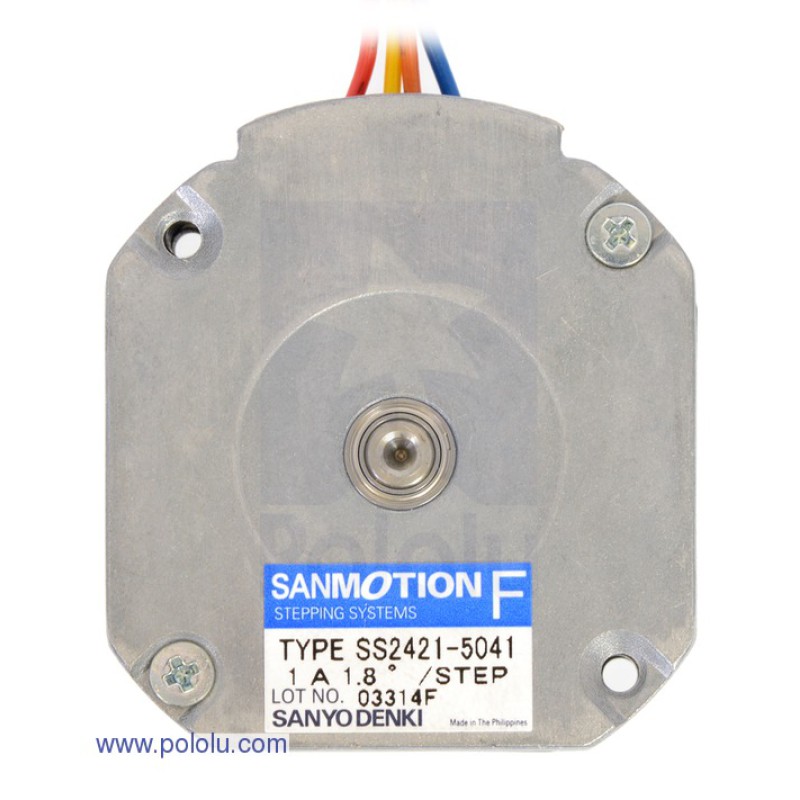

This pancake bipolar stepping motor from Sanyo has a 1.8° step angle (200steps/revolution).

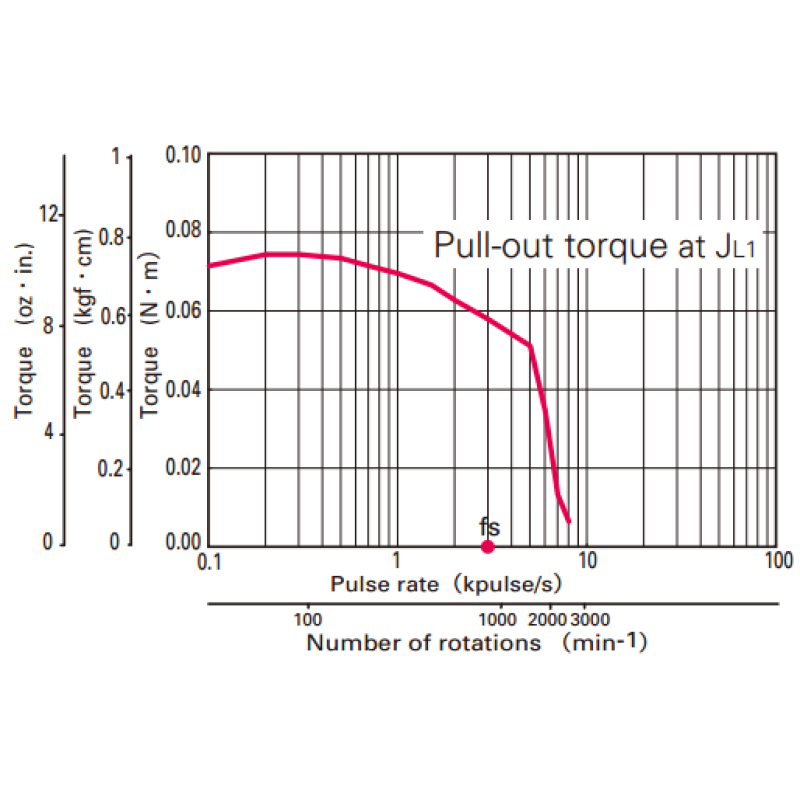

It offers a holding torque of 850g-cm (12oz-in), and each phase draws
1A at 3.5V. This stepper motor’s flat profile (18.6mm including the shaft)
allows it to be used in places where more traditional stepper motors would be too bulky.
This pancake bipolar stepping motor from Sanyo has a 1.8° step angle
(200steps/revolution) and a holding torque of 850g-cm (12oz-in).

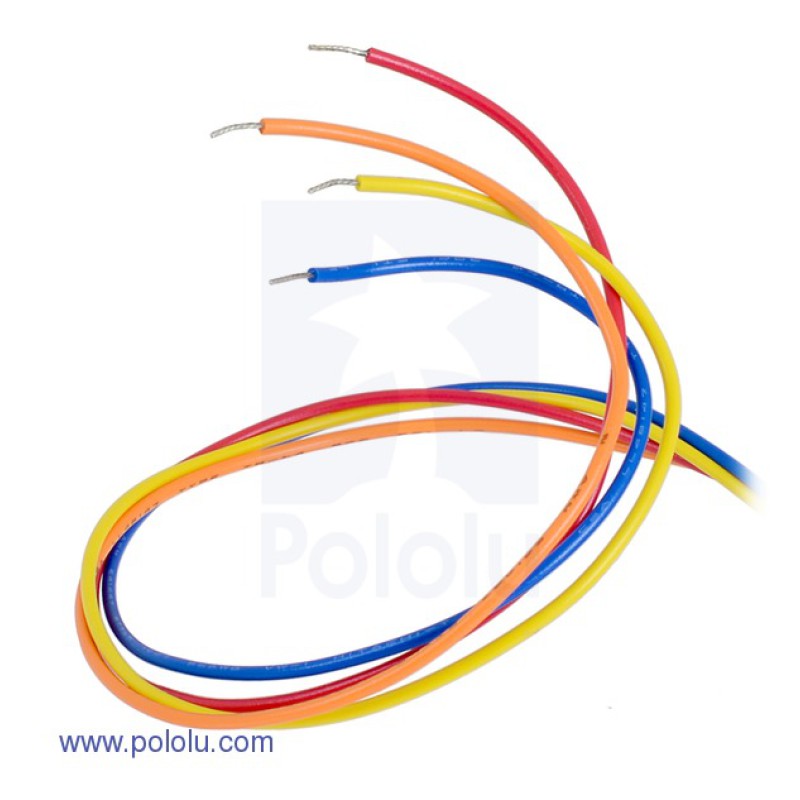

Each phase draws 1A at 3.5V. The motor has four color-coded wires

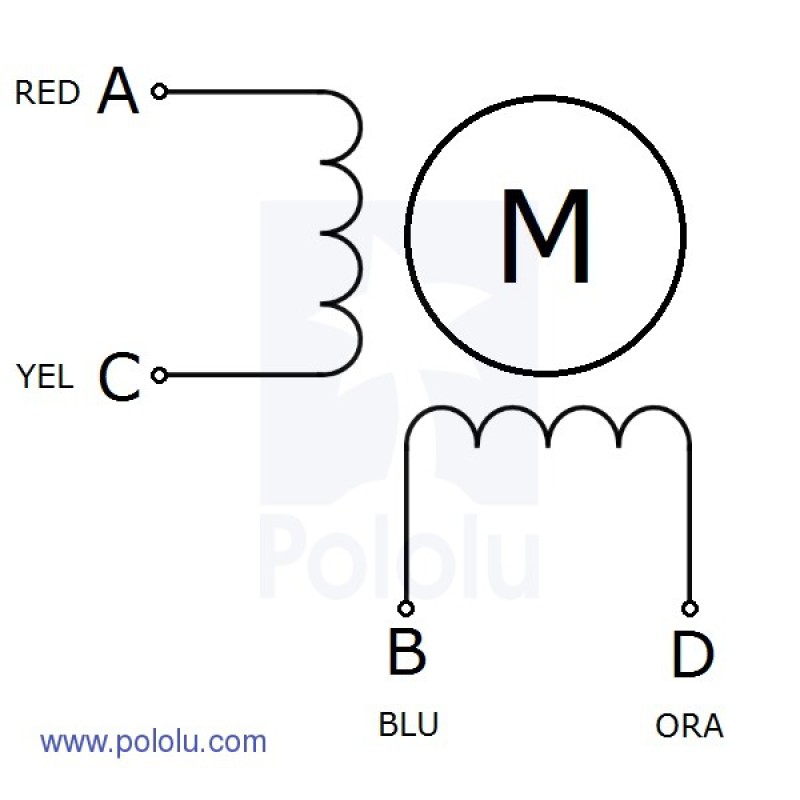

terminated with bare leads: red and yellow connect to one coil; orange and blue connect to the other.
It can be controlled by a pair of suitable H-bridges (one for each coil),
but we recommend using a bipolar stepper motor driver. For more information, see the datasheet (385k pdf).
Our 5mm universal mounting hub can be used to mount objects on the stepper motor’s 5mm-diameter output shaft.
מפרט טכני
- Size: 42mmsquare×11.6mm, not including the shaft
- Weight: 70g (2.5oz)
- Shaft diameter: 5mm
- Steps per revolution: 200
- Current rating: 1A per coil
- Voltage rating: 3.5V
- Resistance: 3.5Ohm per coil
- Holding torque: 850g-cm (12oz-in)
- Inductance: 1.2mH per coil
- Lead length: 12in

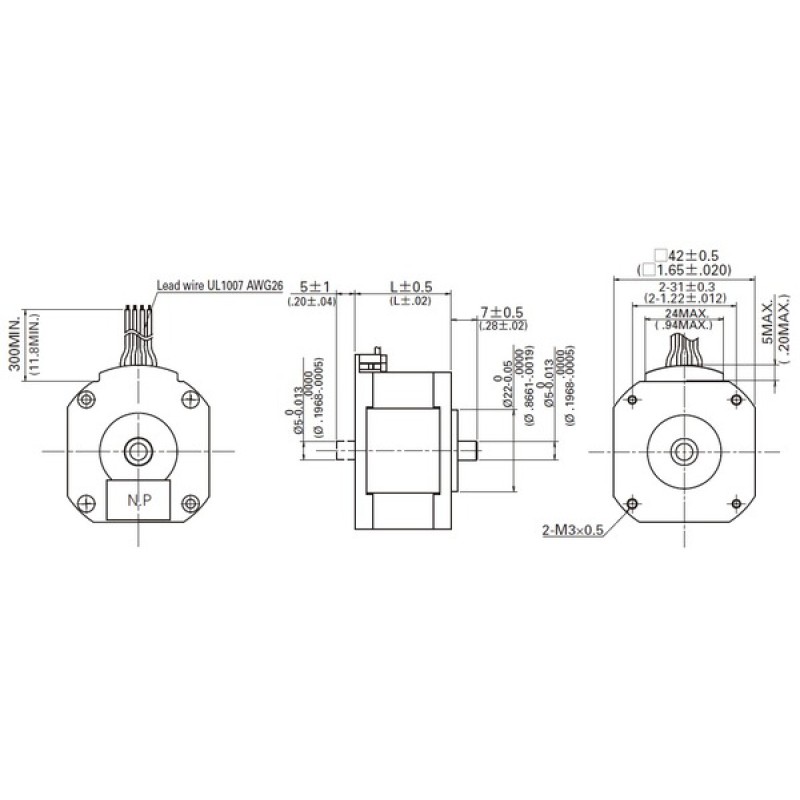

מידות
| Size: | 42 mm square × 11.6 mm1 |
|---|---|
| Weight: | 70 g |
| Shaft diameter: | 5 mm |
מאפיינים כלליים
| Steps per revolution: | 200 |
|---|---|
| Current rating: | 1000 mA2 |
| Voltage rating: | 3.5 V |
| Holding torque: | 11.8 oz·in |
| Resistance: | 3.5 Ohm2 |
| Inductance per phase: | 1.2 mH |
| Number of leads: | 4 |
| Lead length: | 11 in |
