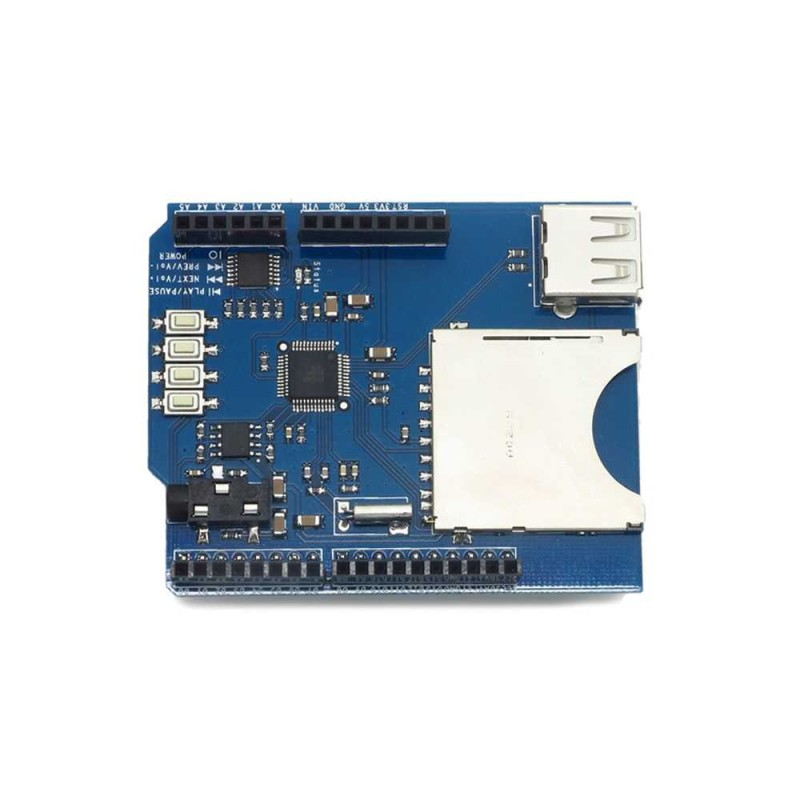

Music Player Shield
The music player shield is based on CECL08D. The CECL08D chip can be used to decode MP3/WAV format
audio file. The music player shield has SD card socket and USB interface, supporting USB and SD card play.
Just plug and play!
|
Arduino PIN |
Description |
|
D0 |
- |
|
D1 |
- |
|
D2 |
- |
|
D3 |
- |
|
D4 |
- |
|
D5 |
- |
|
D6 |
- |
|
D7 |
- |
|
D8 |
- |
|
D9 |
- |
|
D10 |
- |
|
D11 |
- |
|
D12 |
- |
|
D13 |
- |
|
A0 |
Play/Pause |
|
A1 |
Next/Volume+ |
|
A2 |
Prev/Volume- |
|
A3 |
Power/Sleep |
|
A4 |
- |
|
A5 |
- |
מאפיינים
- Ultra-low power
- Configurable I/O for controlling
- External buttons for controlling
- Stackable
- Support the SD card/USB play
