DB15 Screw Terminal Adapter for MCP23X/26X Advanced Motor Controllers

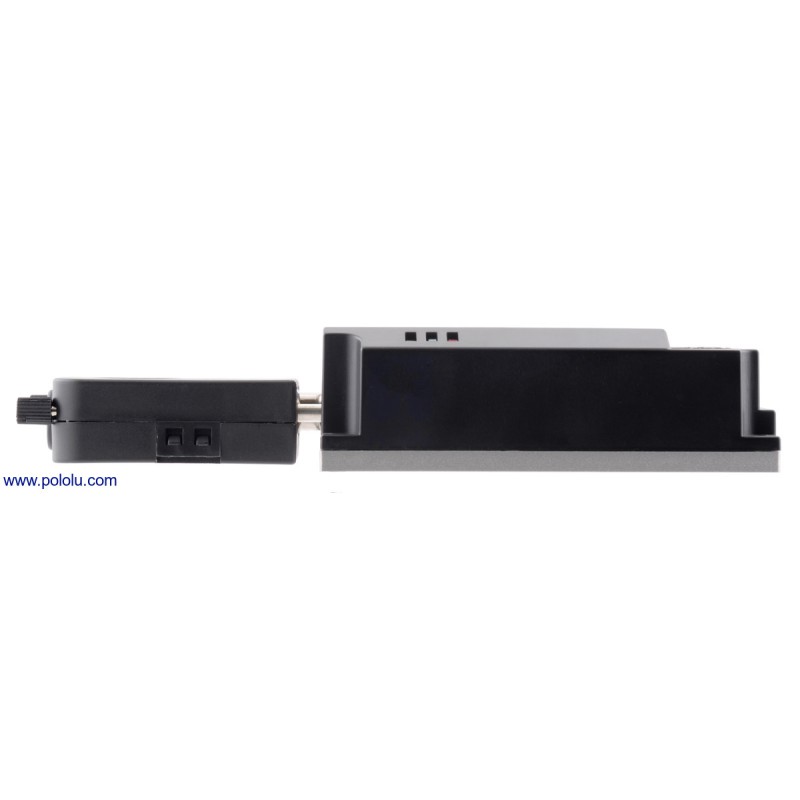

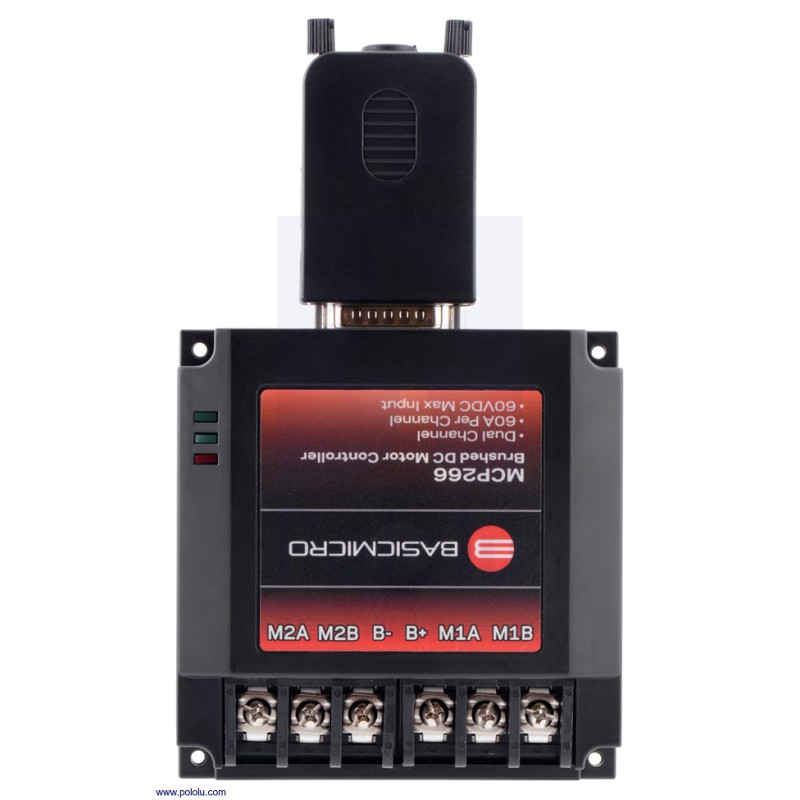

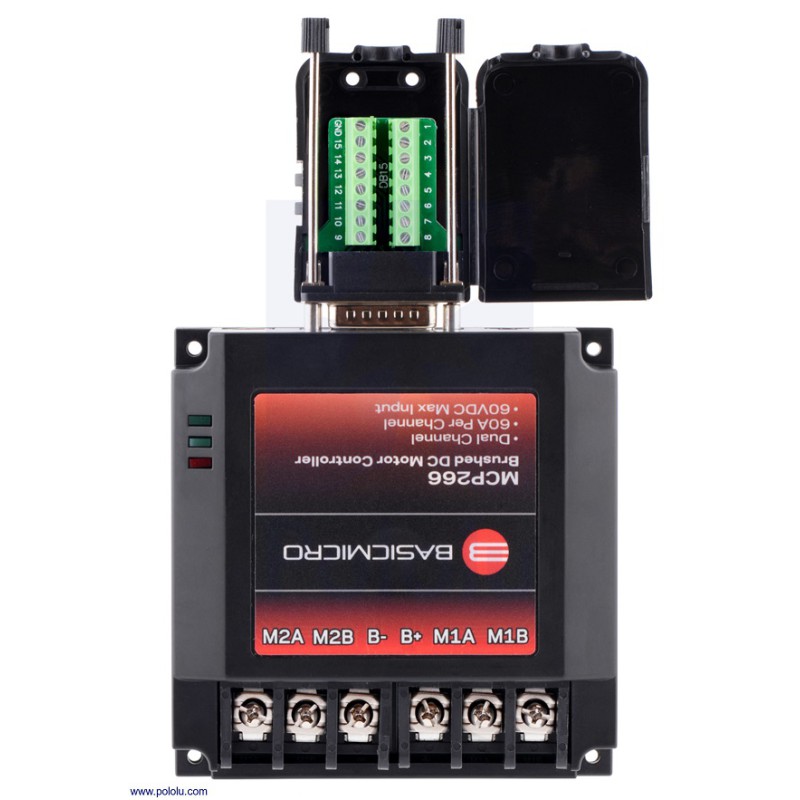

This screw terminal breakout adapter for a DB15 (sometimes also called DA-15) connector is designed to work with the MCP233, MCP236, MCP263, and MCP266 Advanced Motor Controllers. It can also be used as a generic breakout board for other hardware that uses the same connector, like old computer joysticks or MIDI devices.

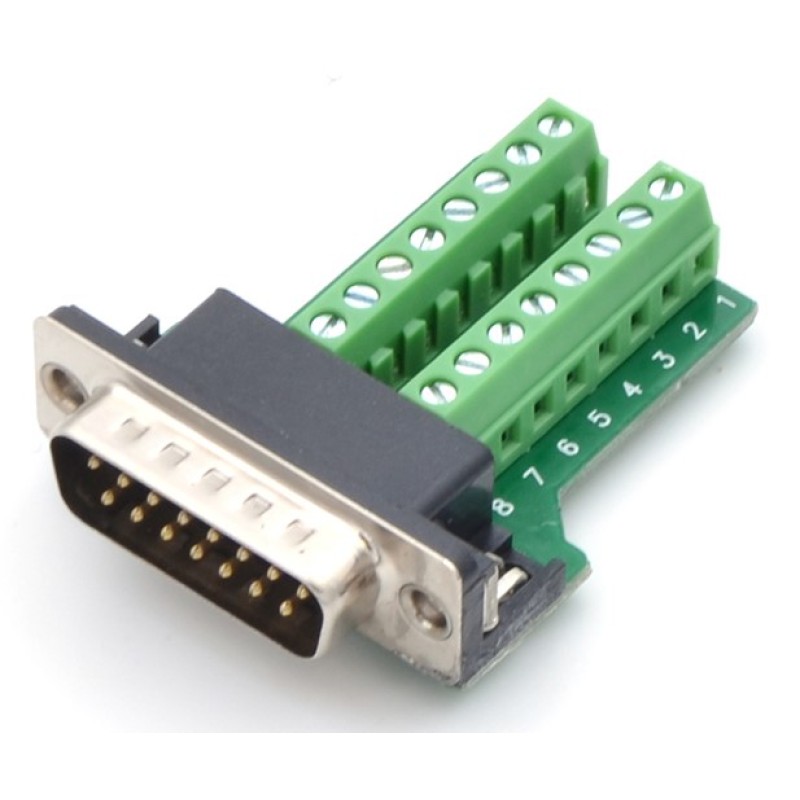

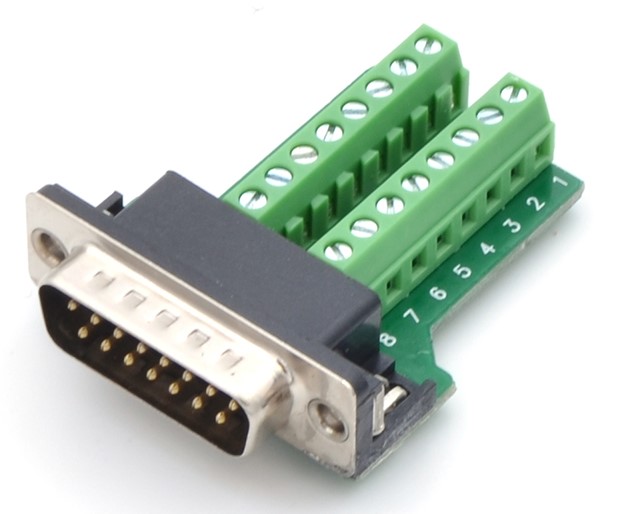

apter breaks out connections from a 15-pin D-subminiature connector (popularly called DB15, but more properly DA-15) to a set of screw terminals, making accessing those pins easier during prototyping. The adapter is designed specifically to work with the MCP Advanced Motor Controllers that feature a DB15 connector: the MCP233, MCP236, MCP263, and MCP266. However, it could also be used as a generic breakout board for other hardware that uses the same connector, like old computer joysticks or MIDI devices (where it is called a game port).

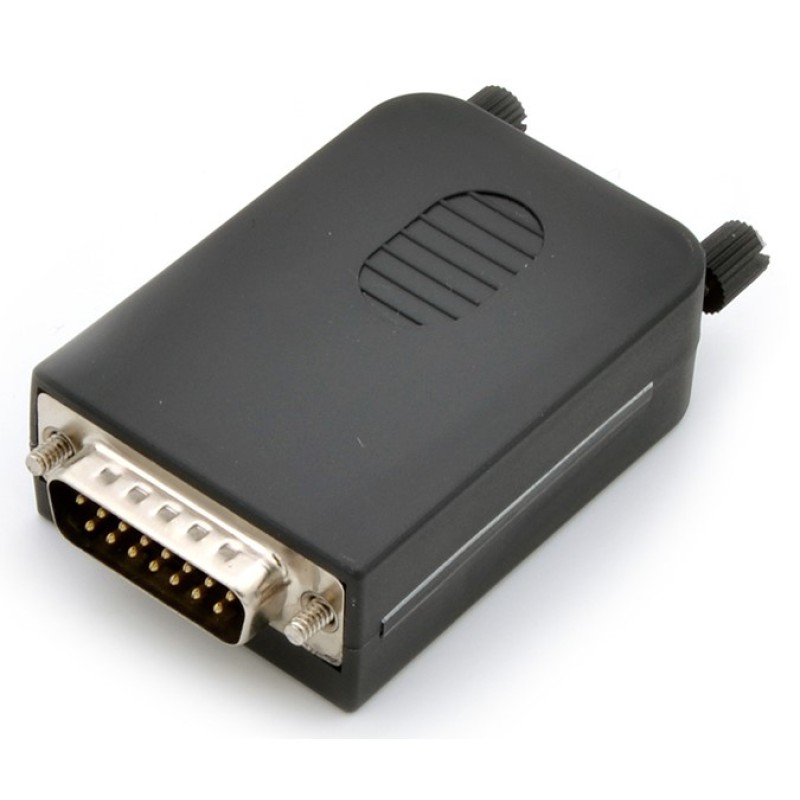

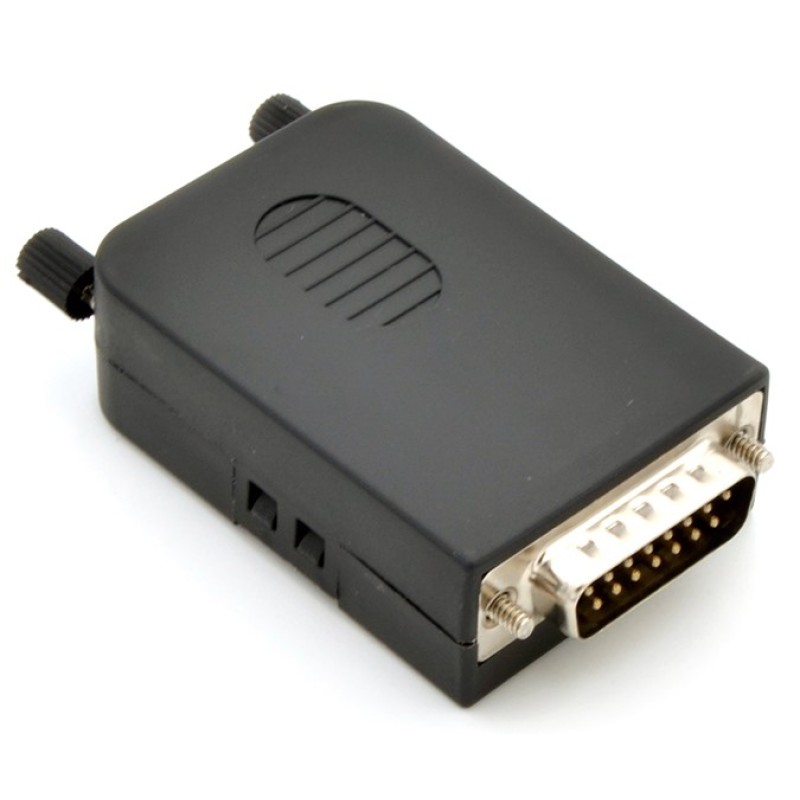

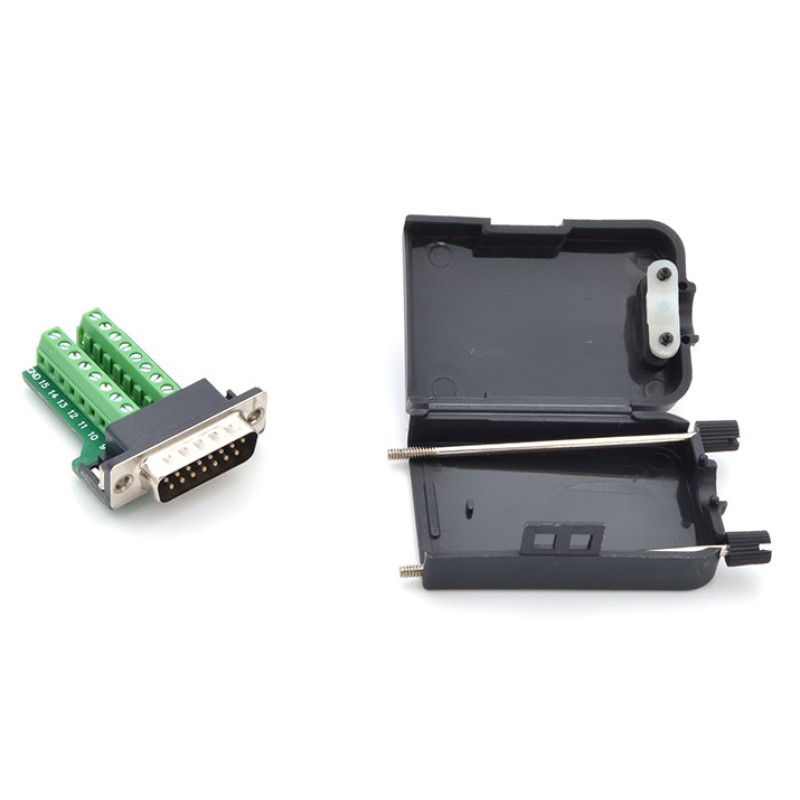

The adapter includes a plastic housing, connector screws, and a small clip that can be screwed into the housing for wire strain relief.
Recommended links
-
DB15 Screw Terminal Adapter dimension diagram
- Dimension diagram of the DB15 Screw Terminal Adapter.
-
DB15 Screw Terminal Adapter 3D model
- 3D model (IGES file) of the DB15 Screw Terminal Adapter.
