74HC86N DIP XOR GATE

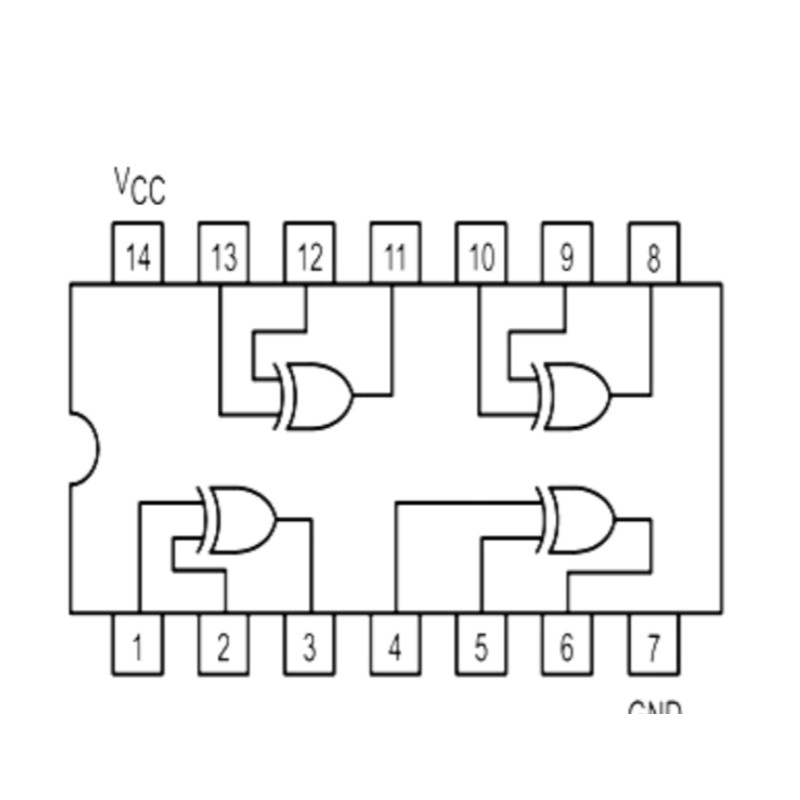

The SN74HC86N is a quadruple 2-input Exclusive-OR Gate performs the Boolean function Y = A * B or Y = A\B + A(B\) in positive logic. A common application is as a true/complement element. If one of the inputs is low the other input is reproduced in true form at the output. If one of the inputs is high the signal on the other input is reproduced inverted at the output.
- Wide operating voltage range
- True logic
- Low power consumption
Applications:
Communications & Networking, Aerospace, Defence, Military
