4-channel I2C-safe Bi-directional Logic Level Converter - BSS138
Because the Arduino (and Basic Stamp) are 5V devices, and most modern sensors, displays,
flash cards and modes are 3.3V-only, many makers find that they need to
perform level shifting/conversion to protect the 3.3V device from 5V.
We do have some other handy level shifters in the shop,
from the DIP 74LVC245 to the fancy bi-directional TXB0108. However, neither of these are happy to work with I2C,
which uses a funky pull-up system to transfer data back and forth.
This level shifter board combines the ease-of-use of the bi-directional
TXB0108 with an I2C-compatible FET design following NXP's app note.
This breakout has 4 BSS138 FETs with 10K pullups. It works down to 1.8V on the low side, and up to 10V on the high side.
The 10K's do make the interface a little more sluggish than using
a TXB0108 or 74LVC245 so we suggest checking those out if you need high-speed transfer.
While we designed it for use with I2C, this works great for SPI, TTL Serial,
and any other digital interface both uni-directional and bidirectional. Comes with

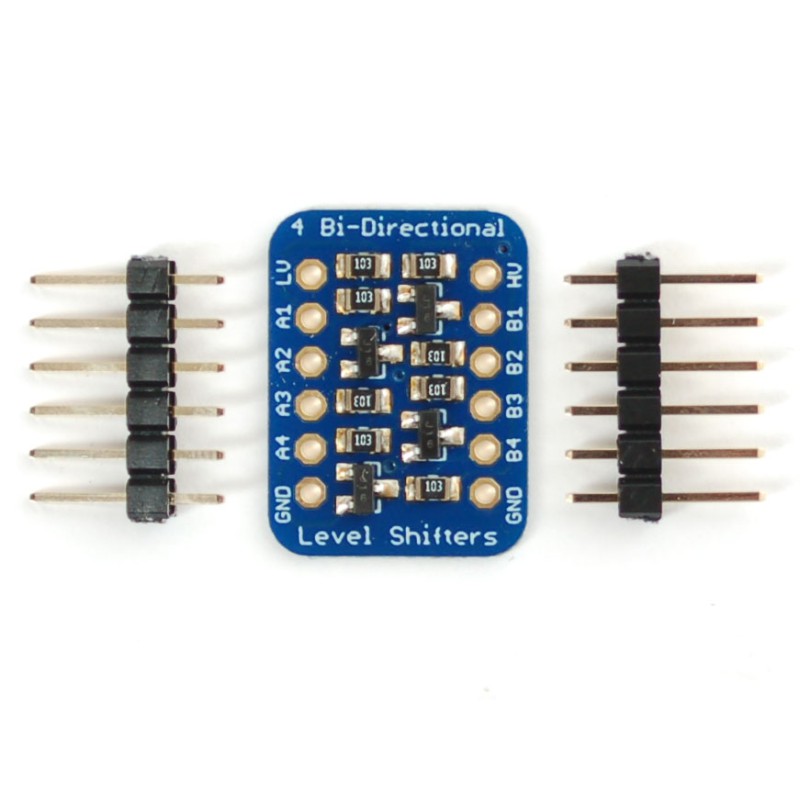

a fully assembled, and tested PCB with 4 full bidirectional converter lines as well as
2 pieces of 6-pin header you can solder on to plug into a breadboard or perfboard.
