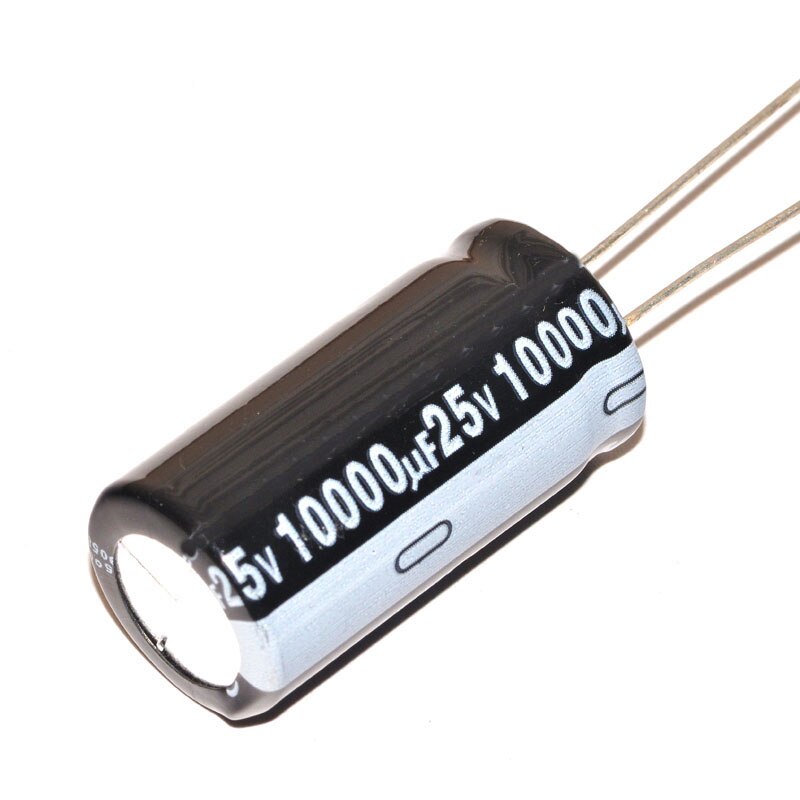

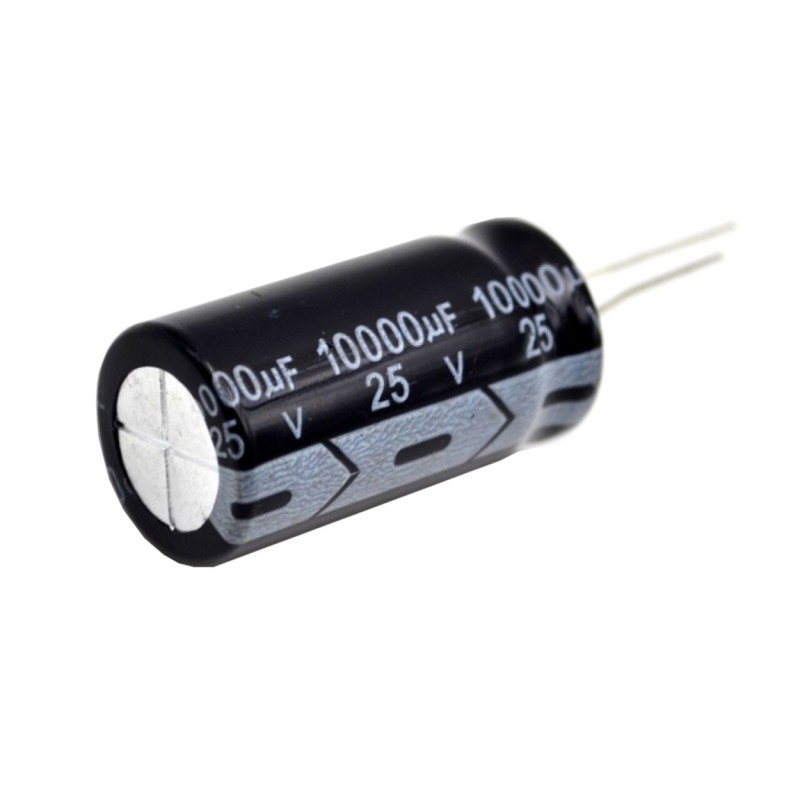

his Aluminium electrolytic capacitor has an electrical capacity of 10000µF and a voltage of 25V DC with a tolerance of 20%.
Technical characteristics
| Specifications | |
|---|---|
| Product type | Aluminium electrolytic capacitor |
| Mounting type | Radial |
| Electric capacity | 10000µF |
| Voltage | 25V DC |
| Tolerance | 20% |
| Rejection current | 2800mA |
| Max operating temperature | 85°C |
| Dimensions | 18 x 40mm |
| Wires spacing | 7mm |
| Durée de vie | 2000h |
| ESR | 53 mOhms |
| Dissipation factor | 0.14 |
