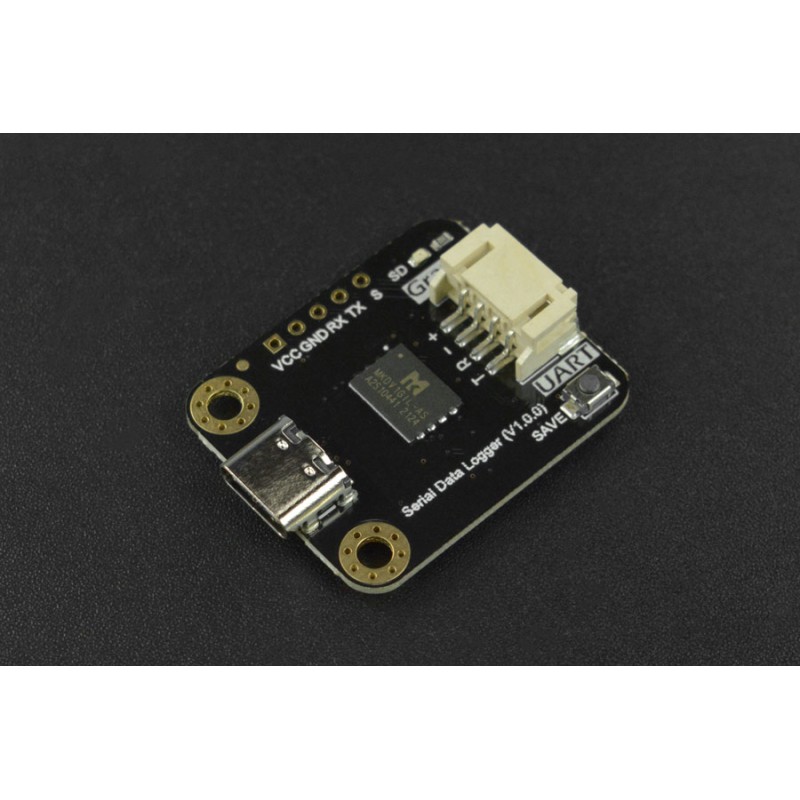

Serial Data Logger for Arduino
Compared to the oldMicroSD Card Module, this Gravity: Serial Data Loggercan store data more conveniently, and supports direct data printing through serial port without additional codes.
The Serial Data Logger provides onboard 128MB Flash memory, no more TF card required. It comes with a USB function, which means you can directly connect it to a PC computer to read the stored files without using a card reader. Meanwhile, with the onboard LED indicator, data writing status can be viewed visually. And the onboard SAVE key makes it easier to store data into separate files.
FEATURES
With USB function, no card reader required
Onboard 128MB Flash memory, no TF card required
Support multiple baud rates, good compatibility
LED indicator for viewing data writing status visually
APPLICATIONS
Offline data collection
Capture product log grab
Robots and drones debug
SPECIFICATION
Supply Voltage: 3.3V~5V
Operating Current: 32mA
USB Protocol: USB2.0
Operating Temperature Range: -30℃~85℃
Operating Humidity Range: 5%RH~85%RH

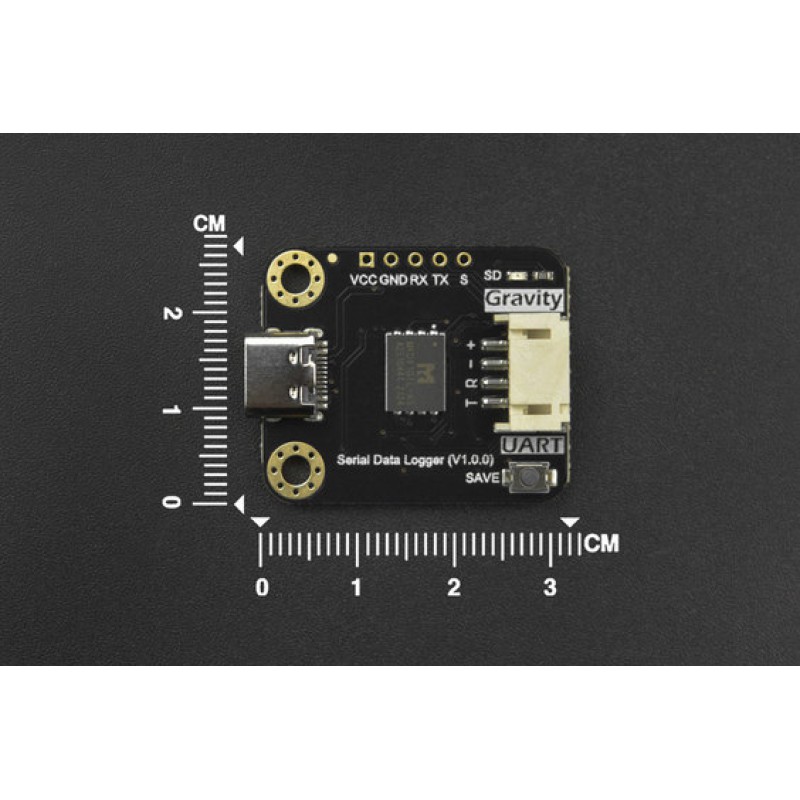

Dimension: 32*27mm/1.26*1.06”
DOCUMENTS

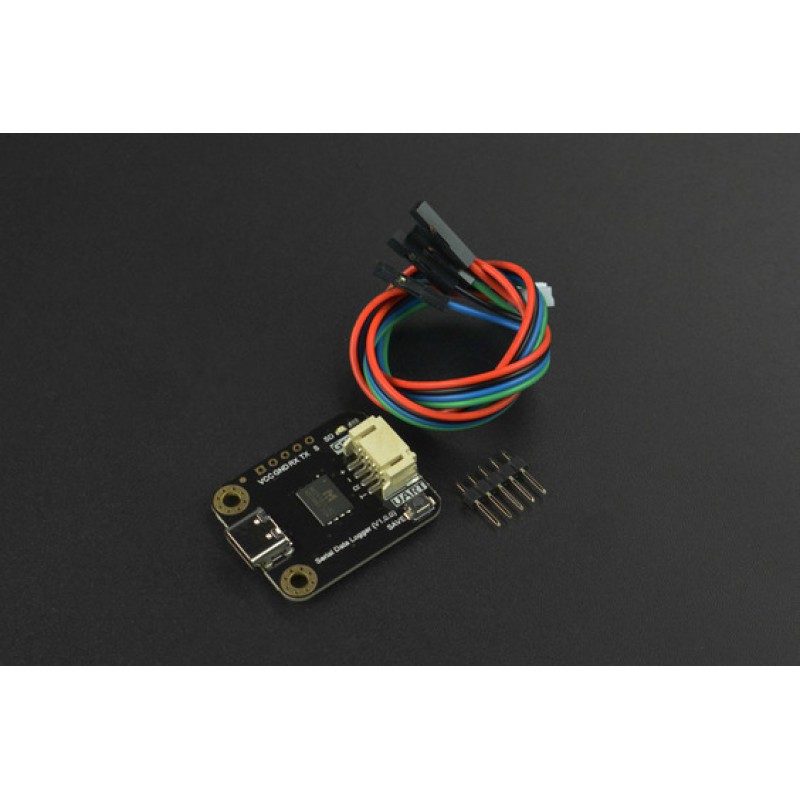

SHIPPING LIST
Gravity: Serial Data Logger x1
2.54-5P Black Single-row Connector x2
Gravity-4P I2C/UART Sensor Cable x1
