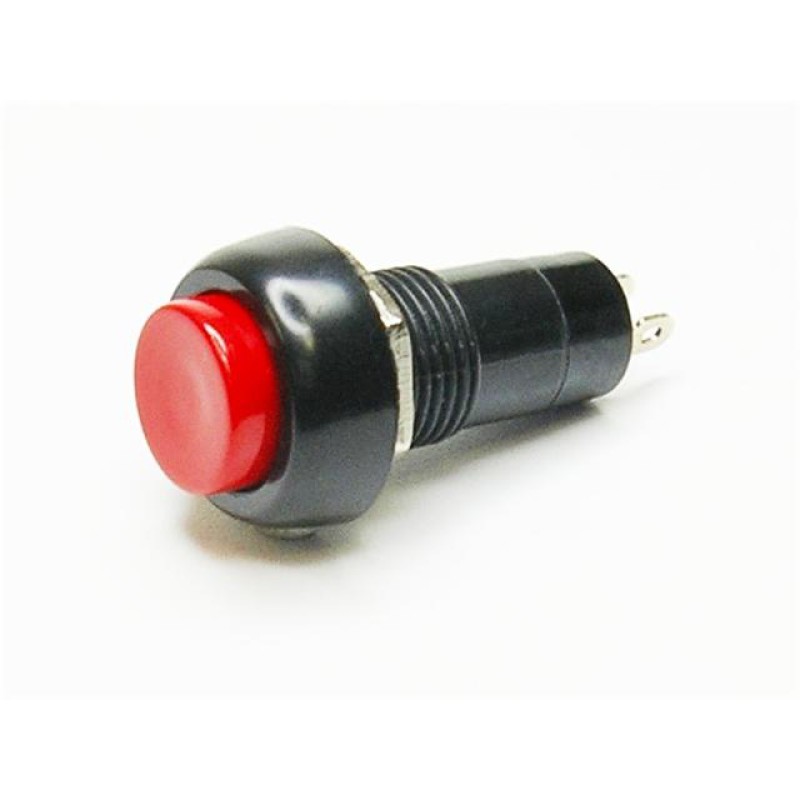

Push Button Round with lock
Specifications
- Rating: 3A 125VAC
- Contact Resistance: 30mO max.
- Insulation Resistance: DC 500V 100 MO min.
- Dielectric Strength: AC 1000V 1 minute
- Electrical Life: 30,000 cycles min
- Mechanical Life: 50,000 cycles min
-
Terminal Material: Copper alloy, silver or gold plated
Additional Information
| Actuator Style | Round |
| Termination | Solder-Lug |
| Switch Circuit | SPST-1-0 |
| Electrical Rating | 3A-125 VAC |
| Color | Red-Button |
