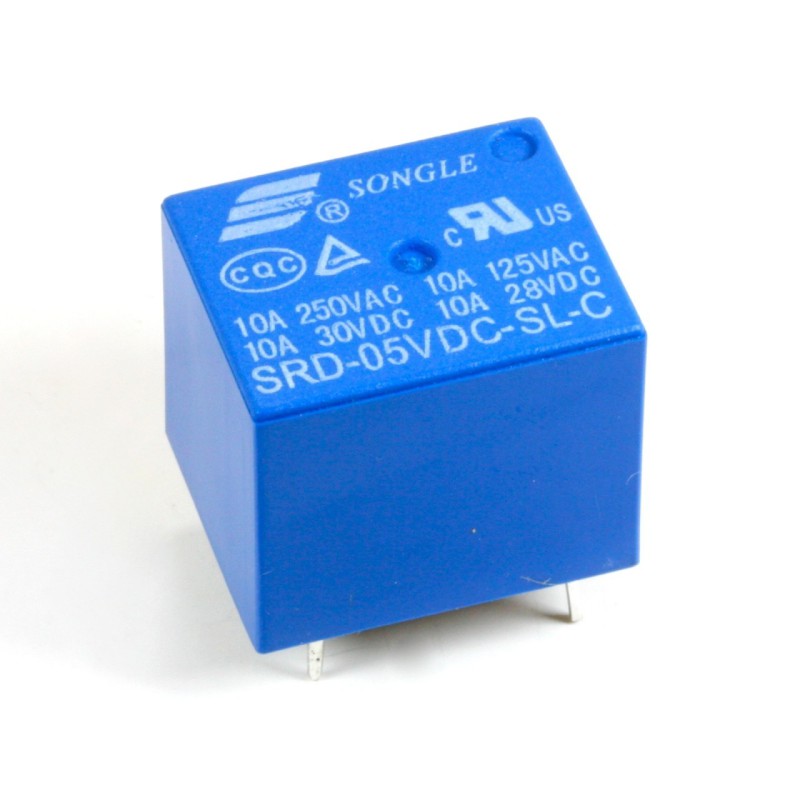

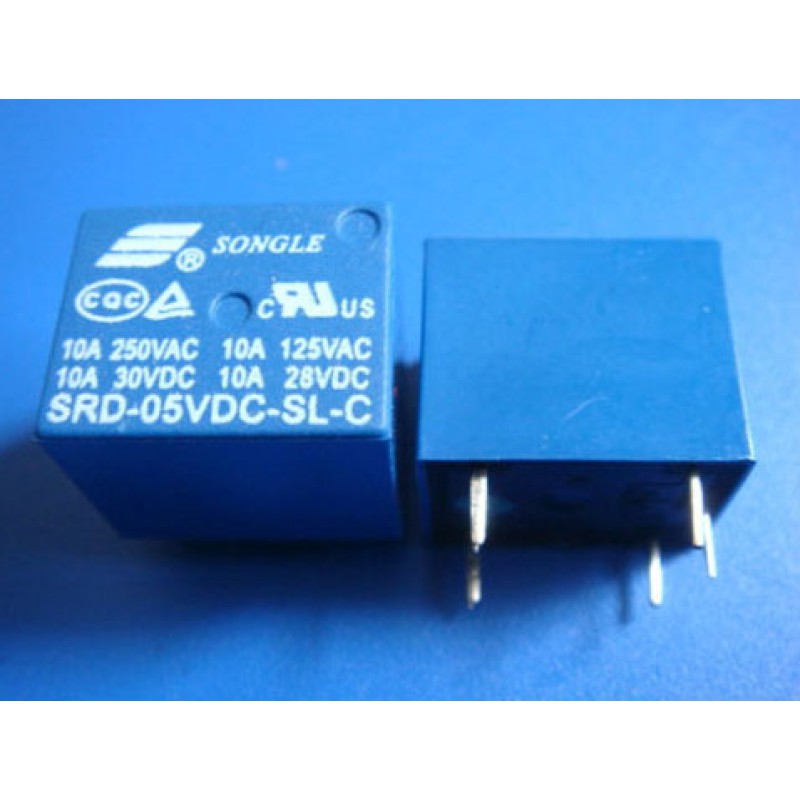

Mini 5V DC Power Relay SRD-5VDC-SL-C SONGLE
מאפיינים:
- Contact form: 1a, 1b, 1c
- Rated load: 10A 250VAC/28VDC,10A 125VAC/28VDC,10A 125VAC/28VDC
- Contact resistance: <=100m (ohm)
- Electrical life: 100,000
- Mechanical life: 10,000,000
- Coil rated voltage: 3-48VDC
- Coil power: 0.36W, 0.45W
- Coil pick-up voltage: <=75%
- Coil drop-out voltage: >=10%
- Ambient temperature: -25 degrees Celsius to +70 degrees Celsius
- Coil and contacts:1500VAC/min
- Contact and contacts: 1000VAC/min
- Insulation resistance: >=100M (ohm)
- Mounting form: PCB
- Weight (g): 10

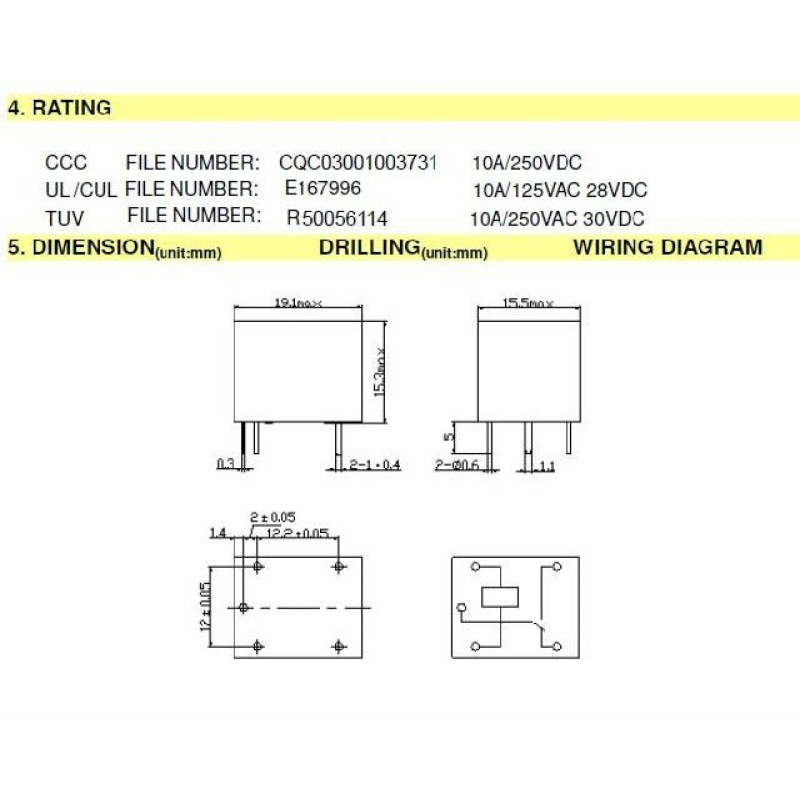

- Outline dimensions (mm): 19.0x 15.5 x 15.0
