MOSFET Power Control Kit
This is the MOSFET Power Control Kit, a breakout PTH soldering kit for for the RFP30N06LE N-Channel MOSFET.
This kit is extremely simple to assemble with only 10 pins to solder.
If you are looking for a little more control over projects that require a little more power than normal but need a better way than your breadboard, this kit is perfect for you
Included in each kit is a MOSFET Power Control PCB, two screw terminals (one 2-pin and one 3-pin), a 10k resistor, and a single RFP30N06LE MOSFET. What we really like about this particular MOSFET is that it’s very common and offers very low on-resistance with a control (gate) voltage that is compatible with any 3-5V microcontroller or mechanical switch. This allows you to control high-power devices with very low-power control mechanisms.
Note: While the MOSFET is rated to 60V 30A, the circuit board traces are only rated to 3.5A.

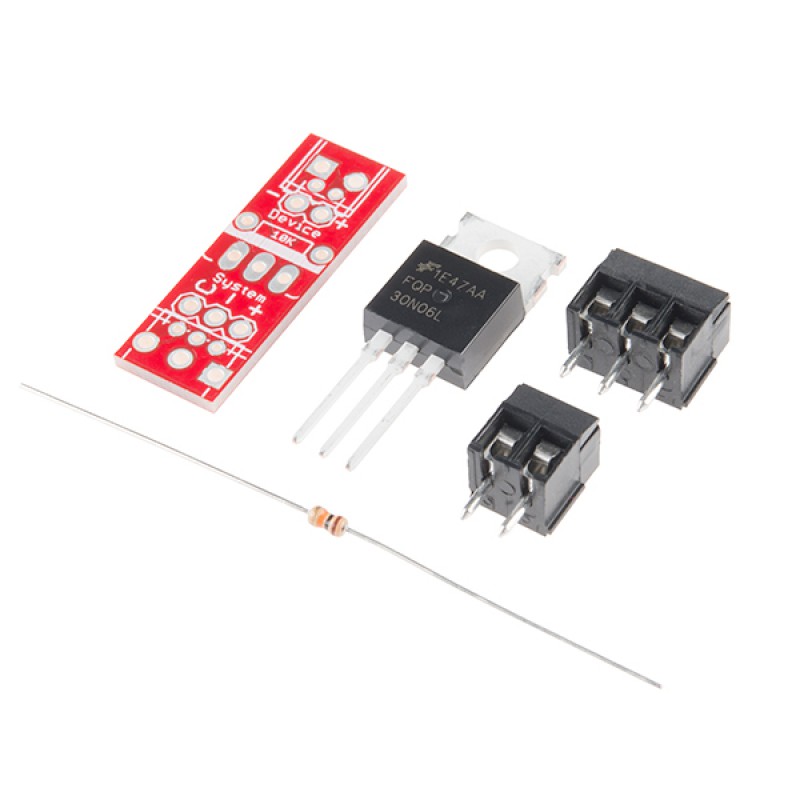

- 1x MOSFET Power Control PCB
- 1x RFP30N06LE MOSFET
- 1x 2-pin screw terminal
- 1x 3-pin screw terminal
-
1x 10k resistor
