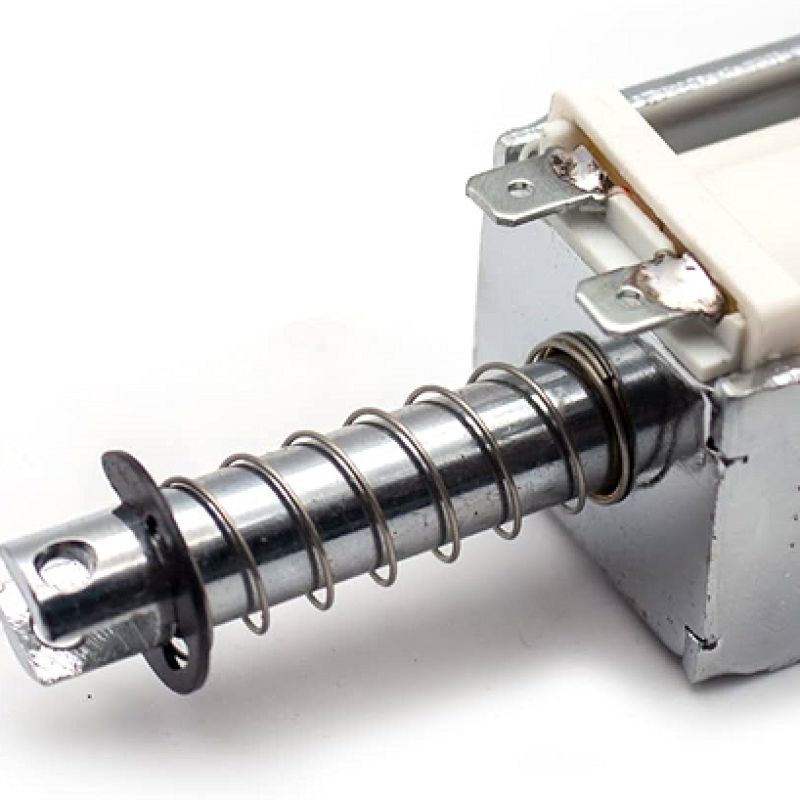

push-pull electromagnet long stroke
[Specification model]: Thrust 15KG self-reset

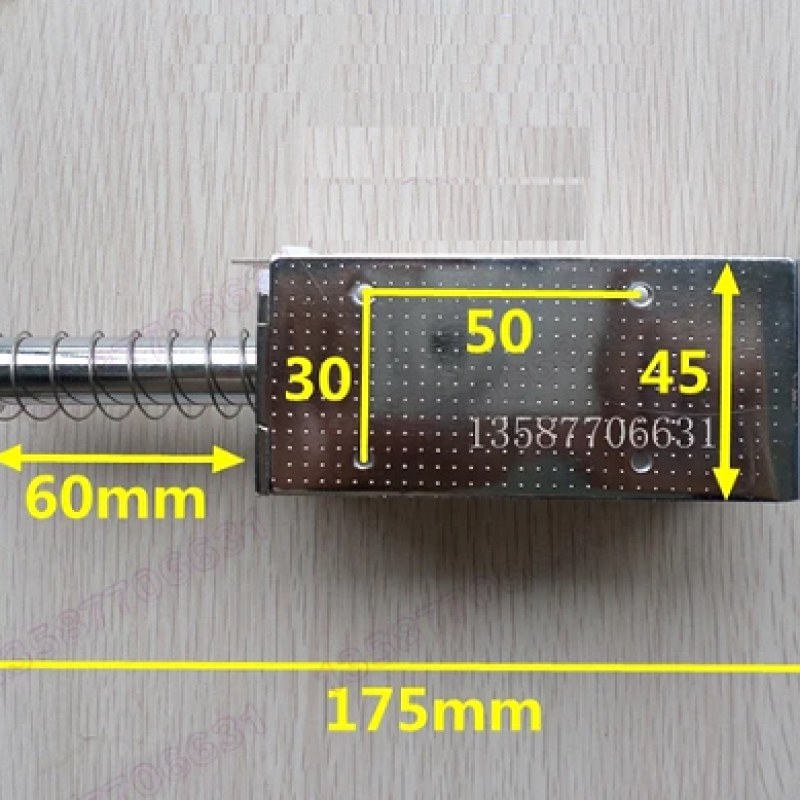

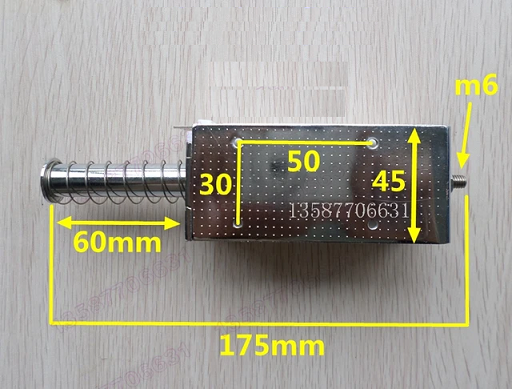

[Installation size]: 30x50 (mm)
[Push-pull stroke]: Customized 60mm (mm)
[Working voltage]: DC12V

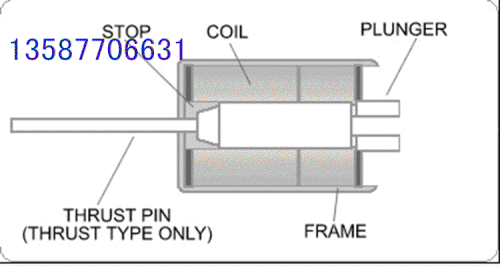

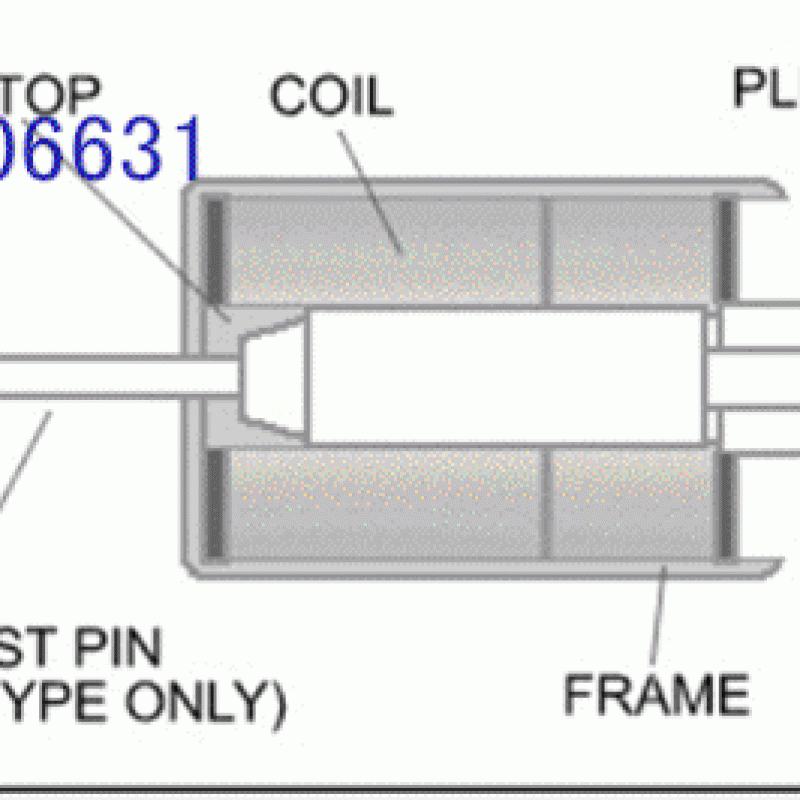

[Working principle]: The energized iron core pushes the load, and the power is turned off by the spring (please note that the spring is soft and can only reset the iron core). Such electromagnets work by impact force. The inertial impact force is huge.
12v requires a large current, 12V requires 10A, Customers who are not suitable for power supply must pay attention.
[Note]: Actuator as an automation device. Because the current is large, the single cycle cannot be energized for a long time, which is suitable for point-type work. A single power-on working time is within 2 seconds! Ultra-long power-on is similar to a manual short-circuit coil, which causes the temperature of the electromagnet to rise sharply. If the temperature is too high, it will affect the life of the electromagnet.
