pH Sensor Kit
Need to measure precise pH?
This kit includes everything you need including buffer solutions for calibration, pH probe, and
even a board to connect directly to your favorite microcontroller.
This is laboratory-grade equipment and not just a toy or educational kit.
All you need to do is follow the included instructions for calibrating the probe and connect it to the included pH Stamp.
The pH Stamp outputs data from the probe over serial, so it couldn't be much easier to use.

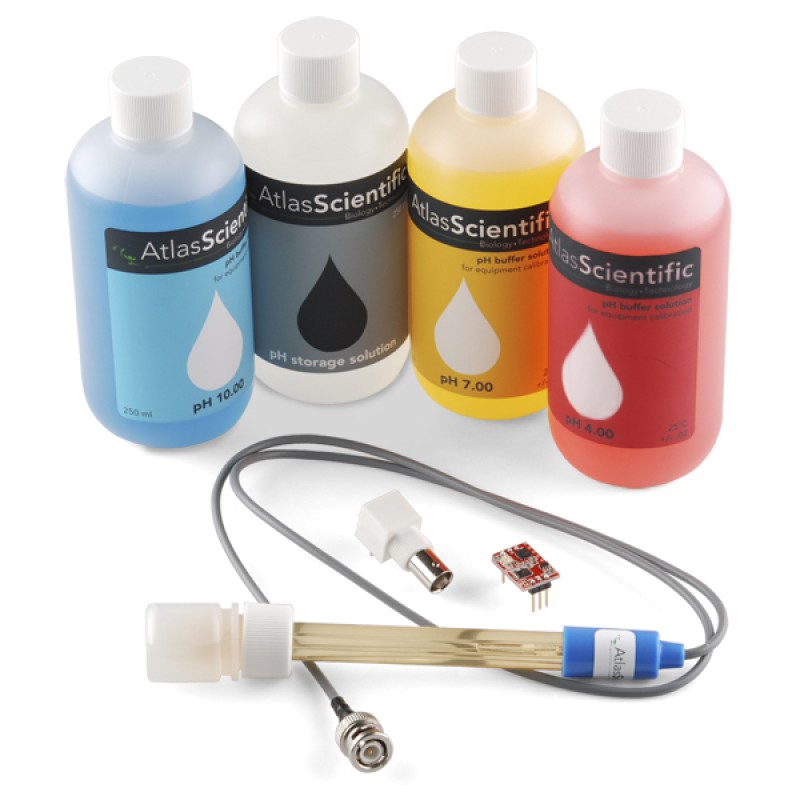

הערכה כוללת:
- 250ml Red Buffer Solution - pH 4.0
- 250ml Yellow Buffer Solution - pH 7.0
- 250ml Blue Buffer Solution - pH 10.0
- 250ml Storage Solution
- pH Probe
- pH Stamp
- BNC Connector
מאפיינים:
-
pH probe
- pH Range: 0-14 (Na+ error at >12.3 pH)
- Speed ofResponse: 95% in 1 second
- Isopotential point: pH 7.00 (0 mV)
- Offset: +/- 0.20 pH
- 3 buffer solutions and storage solution
- 38400 baud rate default
תיעוד:
- Datasheet (pH Stamp)
- MSDS (pH 4.0, Red)
- MSDS (pH 7.0, Yellow)
- MSDS (pH 10.0, Blue)
- MSDS (pH Storage Solution)
- Wiring Diagram
- Arduino Example Code
- Arduino Mega Example Code
- PIC Example Code
- Product Page
