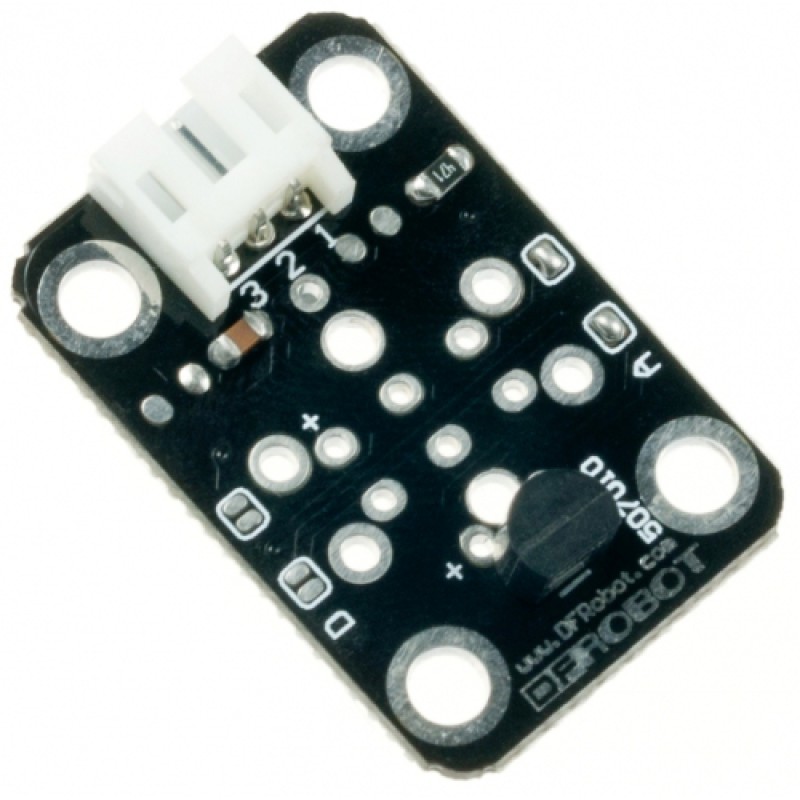

The DFRobot LM35 Linear Temperature Sensor is based on the semiconductor LM35 temperature sensor.
The DFRobot LM35 Linear Temperature Sensor can be used to detect ambient air temperature.
This sensor is produced by National Semiconductor Corporation and offers
a functional range between -40 degree Celsius to 150 degree Celsius. Sensitivity is 10mV per degree Celsius.
The output voltage is proportional to the temperature.
It is commonly used as a temperature measurement sensors.
It includes thermocouples,
platinum resistance, thermal resistance and temperature semiconductor chips,
which commonly used in high temperature measurement thermocouples.
Platinum resistance temperature used in the measurement of 800 degrees Celsius,
while the thermal resistance and semiconductor temperature sensor suitable for
measuring the temperature of 100-200 degrees or below, in which the application of a simple
semiconductor temperature sensor has good linearity and high sensitivity.
The LM35 linear temperature sensor and sensor-specific expansion of Arduino board,
in combination, can be very easy to achieve.
The LM35 linear temperature sensor pin definitions: (1) Output (2) complex (3) power.
It includes thermocouples,
platinum resistance, thermal resistance and temperature semiconductor chips,
which commonly used in high temperature measurement thermocouples.
Platinum resistance temperature used in the measurement of 800 degrees Celsius,
while the thermal resistance and semiconductor temperature sensor suitable for
measuring the temperature of 100-200 degrees or below, in which the application of a simple
semiconductor temperature sensor has good linearity and high sensitivity.
The LM35 linear temperature sensor and sensor-specific expansion of Arduino board,
in combination, can be very easy to achieve.
The LM35 linear temperature sensor pin definitions: (1) Output (2) complex (3) power.
מאפיינים
- Based on the semiconductor LM35 temperature sensor
- Can be used to detect ambient air temperature
- Type: Analog
- Sensitivity: 10mV per degree Celcius
- Functional range: -40 degree Celsius to 150 degree Celsius
