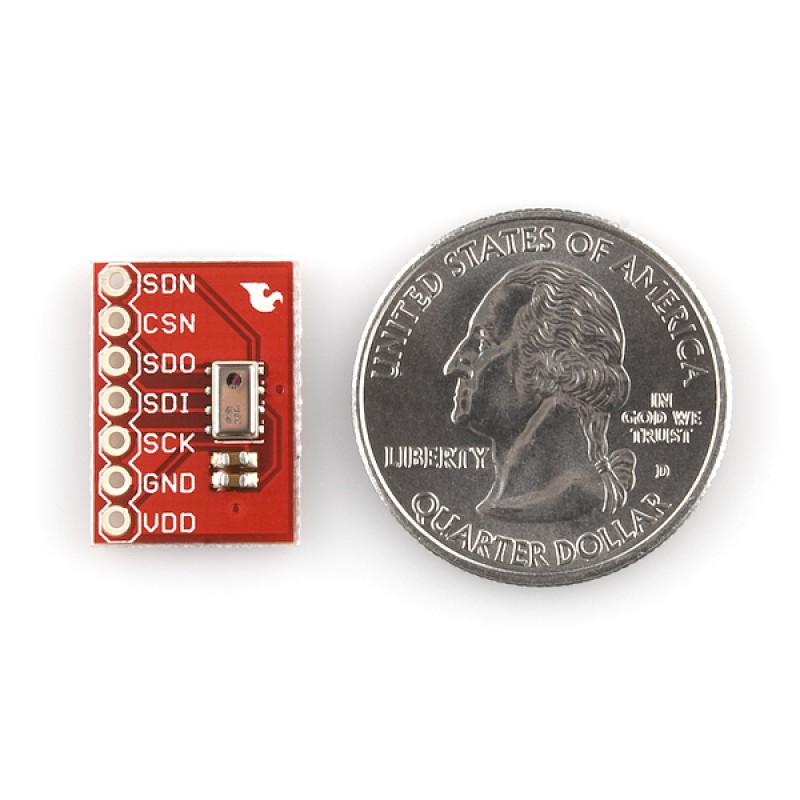

MPL115A1 Barometric Pressure Sensor Breakout
Now mounted on a breakout board, the MPL115A1 is a digital barometric
pressure sensor that uses MEMs technology to give accurate pressure measurements
between 50kPa and 115kPa. We stock the SPI interface version of the sensor.
Average current consumption is 10µA at one measurement per second.
The sensor outputs both temperature and pressure readings on the SPI bus.
See page 3 of the datasheet for information on how to take readings from the pressure sensor.
מאפיינים:
- Wide supply voltage range
- -40°C to 105°C maximum temperature range
- Low power consumption
- kPa accuracy
מידות:
- 5x3 mm (1.2mm height)
תיעוד:
