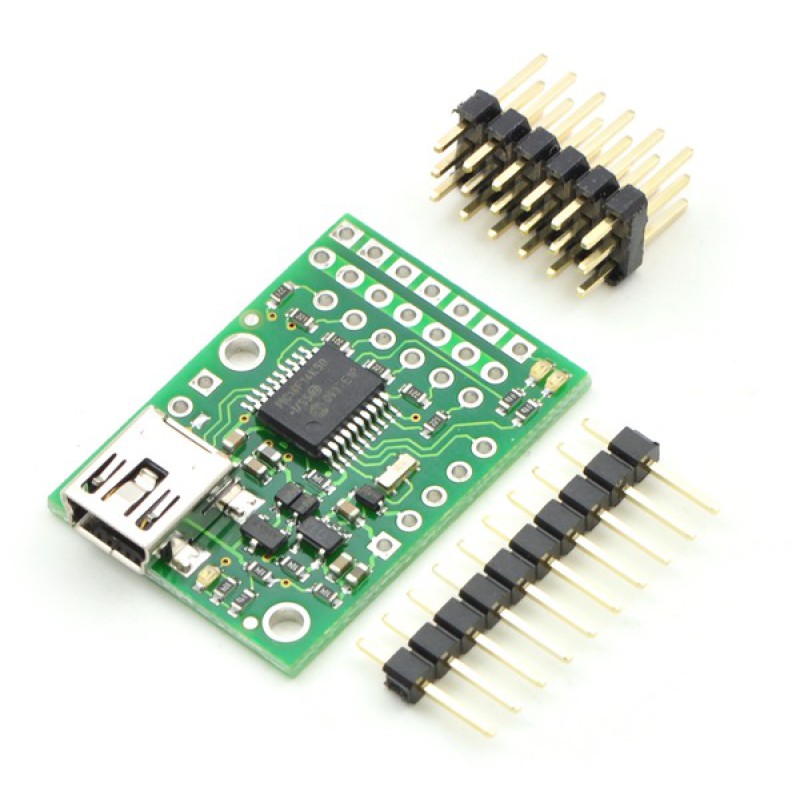

Micro Maestro 6-Channel USB Servo Controller Partial Kit

₪150

תיאור

Micro Maestro 6-Channel USB Servo Controller Partial Kit

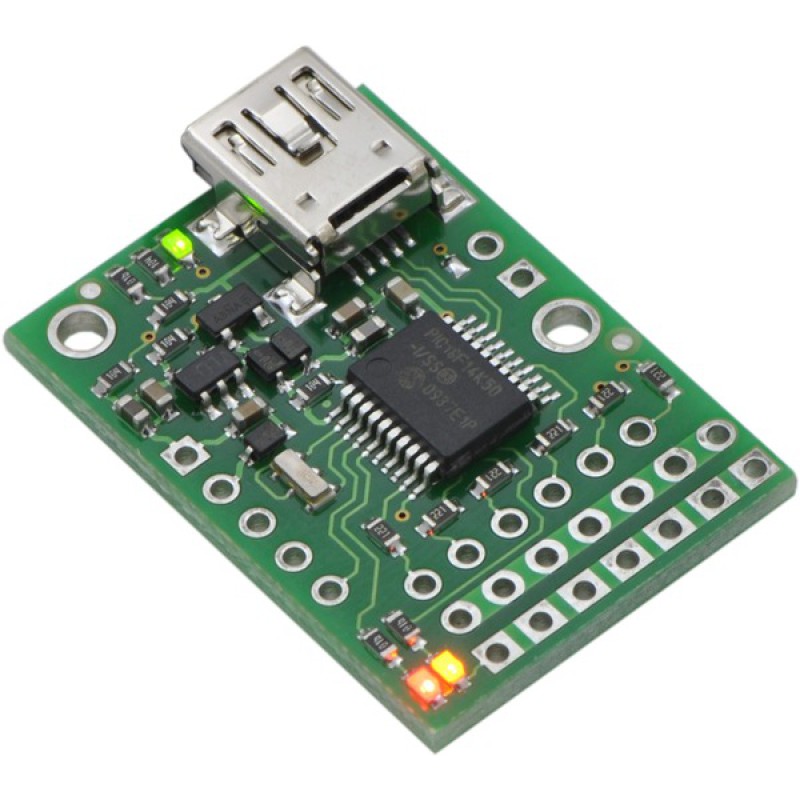

The Micro Maestro is a highly versatile servo controller and general-purpose I/O board in a highly compact

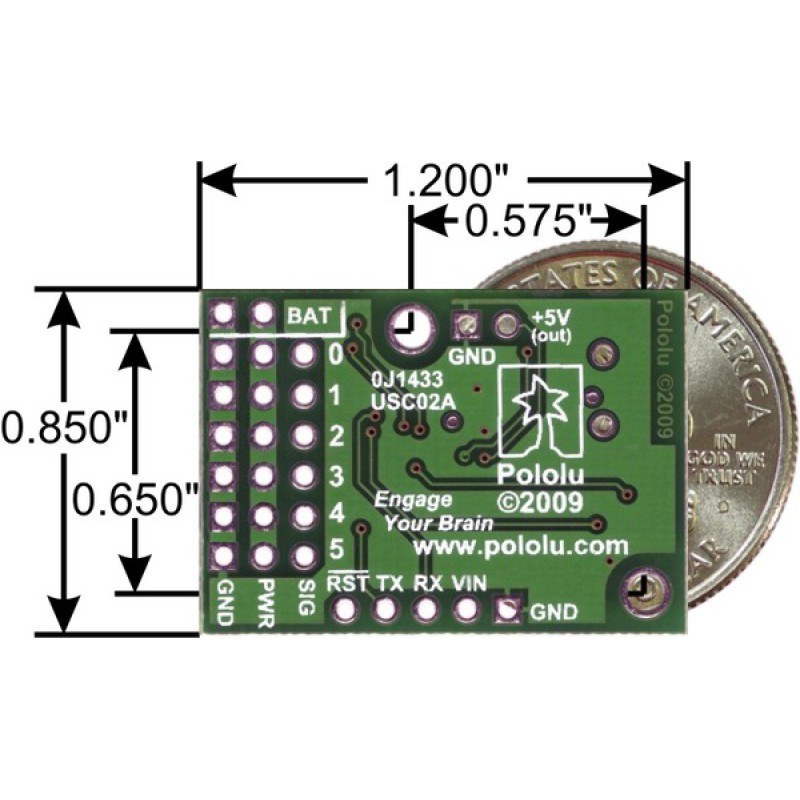

(0.85"×1.20")
package.
It supports three control methods: USB for direct connection to a computer,
TTL serial for use with embedded systems, and internal scripting for self-contained,

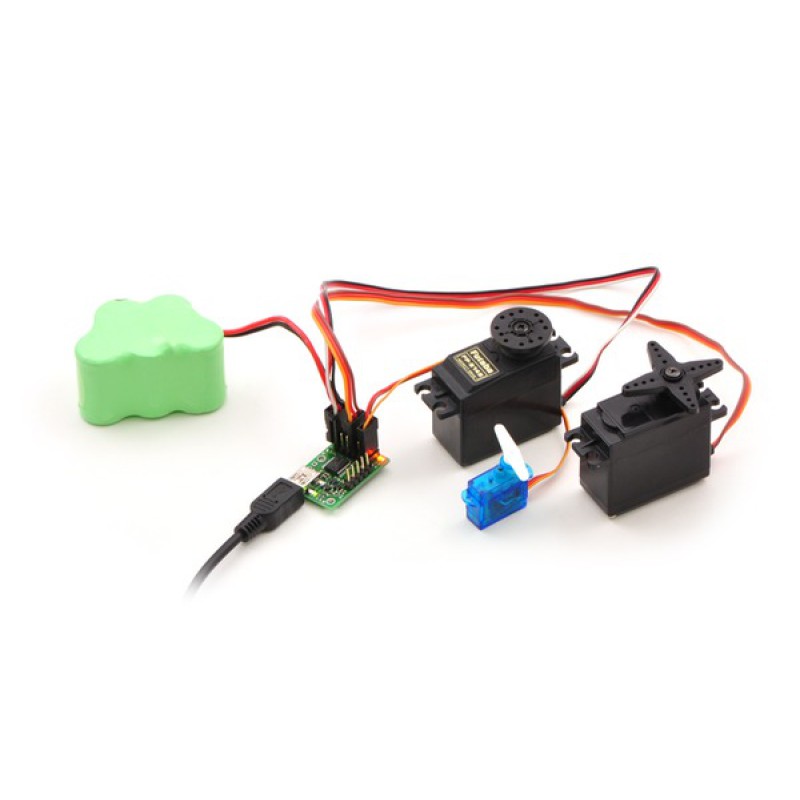

host controller-free applications. The channels can be configured as servo outputs for use with radio control (RC)
servos or electronic speed controls (ESCs), as digital outputs, or as analog inputs.
The extremely precise, high-resolution servo pulses have a jitter of less than 200ns,
making these servo controllers well suited for high-performance applications
such as robotics and animatronics, and built-in speed and acceleration control for each channel
make it easy to achieve smooth, seamless movements without requiring the
control source to constantly compute and stream intermediate position updates
to the Micro Maestro. Units can be daisy-chained with additional Pololu servo and motor controllers on a single serial line.

A free configuration and control program is available for Windows and Linux, making it simple to
configure and test the device over USB, create sequences of servo movements for

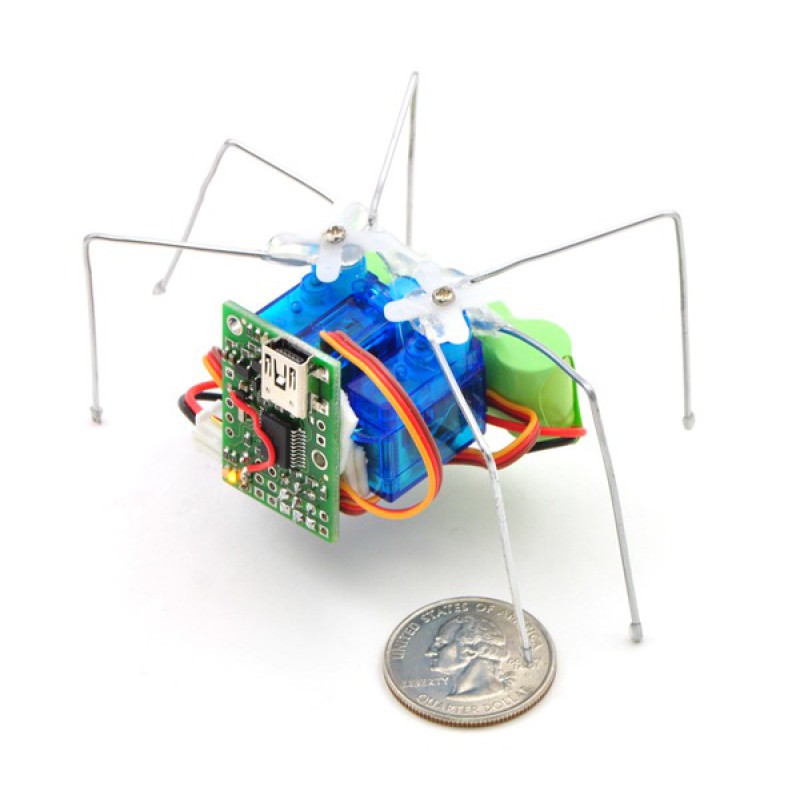

animatronics or walking robots, and write, step through, and run scripts stored in the servo controller.
The Micro Maestro’s 1KB of internal script memory allows storage of servo positions that
can be automatically played back without any computer or external microcontroller connected.

Because the Micro Maestro’s channels can also be used as general-purpose digital outputs and
analog inputs, they provide an easy way to read sensors and control peripherals directly from a PC over USB,
and these channels can be used with the scripting system to enable creation of self-contained animatronic
displays that respond to external stimuli and trigger additional events beyond just moving servos.
