SparkFun Qwiic Pro Micro BoogieBoard

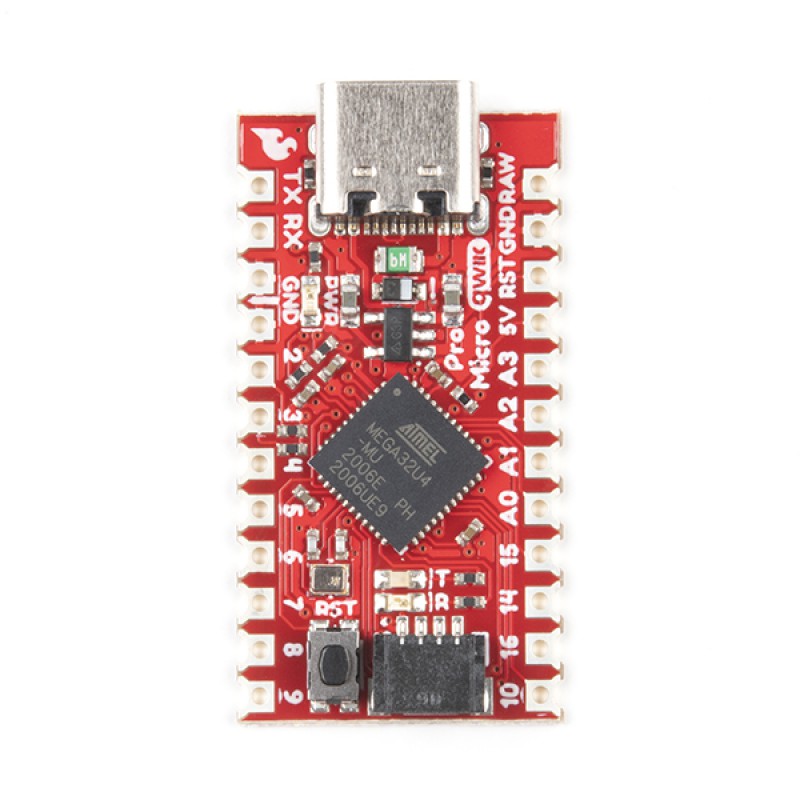

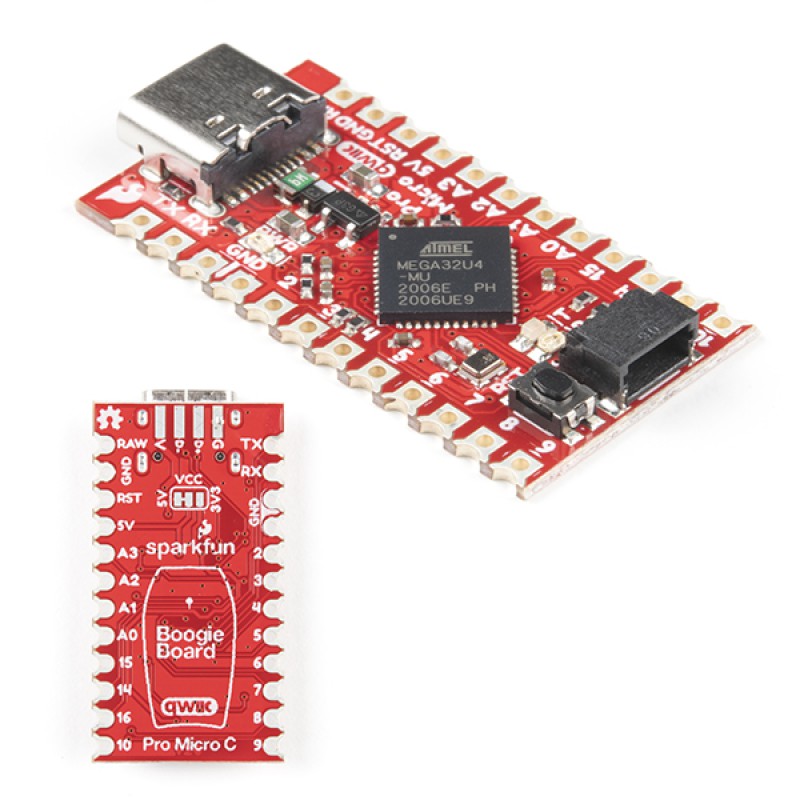

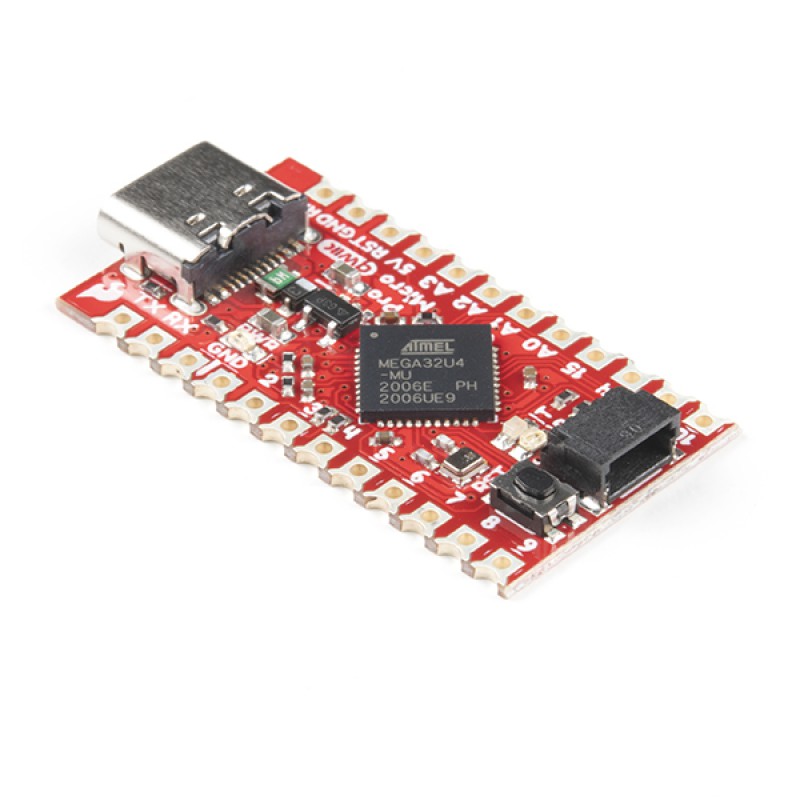

The SparkFun Qwiic Pro Micro BoogieBoard is a Special Edition version of the SparkFun Qwiic Pro Micro with new silk on the underside of the board. The board is the same size as the original Pro Micro but we added a few additional features by shrinking down some components on the board such as a reset button, Qwiic connector, USB-C, and castellated pads (this makes it really handy for you custom keyboard creators out there)! Think the Pro Mini except with an ATmega32U4 on board and full USB functionality.
There are only 275 units available of the BoogieBoard - once they're gone, they're gone forever. Luckily for you, you can pick one of these boards up for free – just use code "BOOGIEBOARD20" when your cart reaches $75 or more (not including this board or shipping/tax/discounts) to get your BoogieBoard for free! This item is not available for resell.
Rules & Information:
- One per customer
- Add the SparkFun BoogieBoard to your cart!
- Use code "BOOGIEBOARD20" during checkout when your cart reaches $75 or more (not including this board or shipping/tax/discounts)
- No rainchecks or backorders will be allowed. We will not be allowing the combining of orders during this sale. Distributor and Reseller accounts will not be eligible.
This tiny little board does all of the neat-o Arduino tricks that you're familiar with: nine channels of 10-bit ADC, five PWM pins, 12 DIOs as well as hardware serial connections Rx and Tx. Running at 5V and 16MHz, this board will remind you a lot of your other favorite Arduino-compatible boards but this little guy can go just about anywhere. There is a voltage regulator on board so it can accept voltage up to 6VDC. If you're supplying unregulated power to the board, be sure to connect to the "RAW" pin on not VCC.
The benefit of the reset button is to quickly reset the board or place it into bootloader mode without the need to take out a piece of jumper wire. The USB micro-b connector has been replaced with the USB type C connector. The through-hole pads have castellated edges for each pin to add a lower profile in your projects should you decide to build it into another assembly during production. Finally, a Qwiic connector is populated on the bottom of the board to easily add Qwiic enabled I2C devices to your projects!
- ATmega32U4 running at 5V/16MHz
- AP2112 3.3V Voltage Regulator
- Supported under Arduino IDE v1.0.1+
- On-Board USB-C connector for programming
- PTH Pads w/ Castellated Edges
- 9x 10-bit ADC pins
- 12x Digital I/Os (5 are PWM capable)
-
Hardware Serial Connections
- UART (i.e. Rx and Tx)
- Qwiic Connector for I2C
- SPI
- Small Arduino-Compatible Board
- Reset Button
- Dimensions: 1.3in x 0.7in
