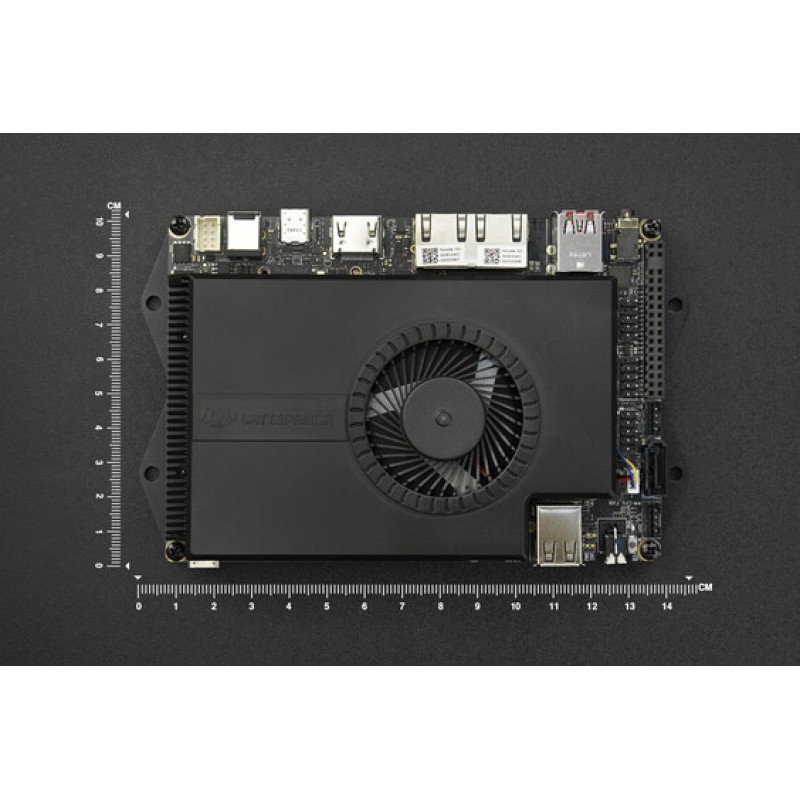

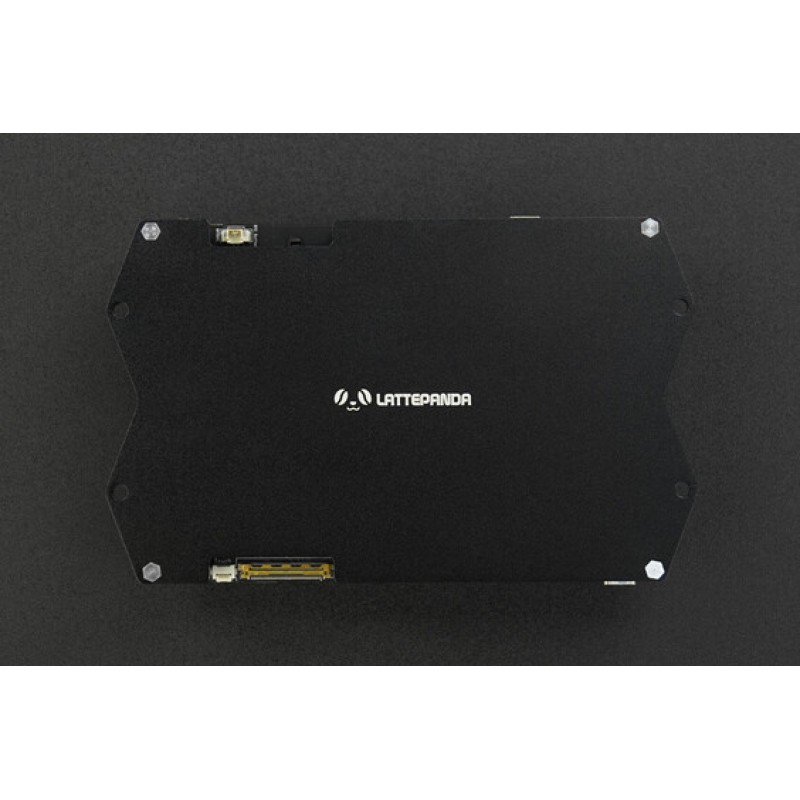

LattePanda Sigma - x86 Windows / Linux Single Board Computer Server (32GB RAM)

₪4,000

תיאור

LattePanda Sigma is a hackable x86 Windows / Linux single board server with mighty power. It features an Intel Core i5-1340P processor with Intel Iris Xe Graphics, and up to 32GB Dual-Channel LPDDR5 memory. This powerful single board computer can be used as a home server, streaming server, game server, IoT, AI Inference, edge computing, and more.

Ultimate Performance

LattePanda Sigma is equipped with the 13th Intel Core i5-1340P processor, which features 12 cores and 16 threads with the turbo frequency up to 4.6GHz, offering ultimate performance and multitasking capabilities.

This single board computer features Intel Iris Xe Graphics with 80 execution units (EUs) capable of reaching dynamic frequency up to 1.4GHz, delivering superior graphics performance and rendering quality.

Lightning-Fast Memory

LattePanda Sigma boasts up to 32GB of dual-channel LPDDR5-6000 memory, with an impressive bandwidth speed of up to 102.4GB/s - doubling the speed of the previous generation.

Rapid Chill with Silent Whisper

Thanks to its robust cooling capabilities, the LattePanda Sigma's processor consistently maintains a high-performance 44W TDP (Thermal Design Power), delivering stable and sustained performance without degradation.

Professional and Instant Technical Support

To meet the needs of industry users, LattePanda team provides fast and efficient technical support services. Whether it's installation and configuration, troubleshooting, or system integration, the dedicated technical team at LattePanda is always here to ensure the stability and smoothness of your project. Kindly reach out to techsupport@lattepanda.com.

Customized Solutions

LattePanda series single board computer supports special customization, including hardware and interface modifications, customized boot screens, BIOS feature adjustments, customized operating systems, and so on. If you have any specific requirements, please feel free to contact lattepanda@outlook.com. The LattePanda team is dedicated to providing prompt and professional support to cater to your customization needs.

Features

Ultimate Performance: The Intel Core i5-1340P processor has 12 cores and 16 threads with a maximum turbo frequency of 4.60 GHz (performance-core) and 3.4 GHz (efficient-core), making it a powerful and efficient processor for multitasking and demanding applications.
Lightning-fast Memory: The dual-channel LPDDR5-6000 RAM with a capacity of 32GB ensures smooth and fast performance.
High-level Graphics Capability: as it features the Intel Iris Xe Graphics, LattePanda Sigma Single Board Server supports multiple display outputs with high resolutions and refresh rates.
Quad 4K displays: Experience unparalleled visual clarity with support for quad 4K displays, bringing your content to life like never before.
User-friendly Interface Layout: plug and play with ease
Rich Interfaces: Unlock limitless possibilities with rich interfaces, offering seamless connectivity and enhanced user experience.
Diverse OS Support: Support Windows 10, Windows 11, and Ubuntu operating systems

Specification

Processor

CPU: Intel® Core™ i5-1340P
Cores / Threads: 12C(4P+8E) / 16T
Max Turbo Frequency: 4.60 GHz(Performance-core), 3.4 GHz(Efficient-core)
L2 Cache: 12 MB
Base Power: 28 W
Graphics: Intel® Iris® Xe Graphics
Max Dynamic Frequency: 1.45 GHz
Execution Units: 80
Co-processor: Microchip® ATmega32U4-MU

Memory

Dual-Channel 32GB LPDDR5-6000

Storage

Drive Form Factor: M.2 SSD (NVMe/SATA), SATA Drive

Wireless

Wireless Form Factor: M.2 Wireless Module (PCIe/CNVio)

Display

HDMI Port: HDMI 2.1, Up to 4096 x 2304 @ 60Hz
USB Type-C Port: DP 1.4a, Up to 7680 x 4320 @ 60Hz (One Monitor)
Embedded Display Port: eDP 1.4b, Up to 4096 x 2304 @ 120Hz

External I/O

USB Type-A: 2 x USB2.0 (480Mbps)
2 x USB3.2 Gen 2 (10Gbps)
USB Type-C: 2 x Thunderbolt™ 4 (40Gbps)
HDMI: HDMI 2.1
Ethernet: 2 x 2.5GbE RJ45 Ports (Intel® i225-V Gigabit Ethernet Controller, Supports 10/100/1000/2500 Mbps, WOL)
Power: 5.5mm x 2.5mm DC Jack
Audio: 3.5mm Microphone Headphone Combo Connector
Sim Card: Micro Sim Card Slot

Internal I/O

USB 2.0: 2.0mm Pitch 4-Pin Connector, 480Mbps
Fan: 1.27mm Pitch,12V 4-Wire Fan Connector, PWM Control
SATA: SATA 6.0 Gb/s Data Connector, 2.0mm Pitch 4-Pin Power Connector
Front Panel: 2.54mm Pitch 9-Pin Header, Supports Power, Reset, Power LED, HDD LED
Front Audio Panel: 2.54mm Pitch 9-Pin Header, Supports High Definition Audio (HD), Line-Out, Mic-in
COM: 2.54mm Pitch 9-Pin Header,Supports RS232, RS485
GPIO: 2.54mm Pitch 34-Pin Header, Including ATmega32U4 I/O Pins, 5V Power Pins, S0/S3/S4 State Pins
eDP: 0.5mm Pitch 40-Pin Connector, 4 Lanes

Expansion Slot

M.2 M Key: Type 2280, Supports PCIe 3.0 x4
Type 2280, Supports PCIe 4.0 x4
M.2 B Key: Type 2242/2252/2280, Supports SATA III/PCIe 3.0 x1, USB2.0, USB3.0, SIM
M.2 E Key: Type 2230, Supports PCIe 3.0 x1,USB2.0, Intel CNVio

Security
