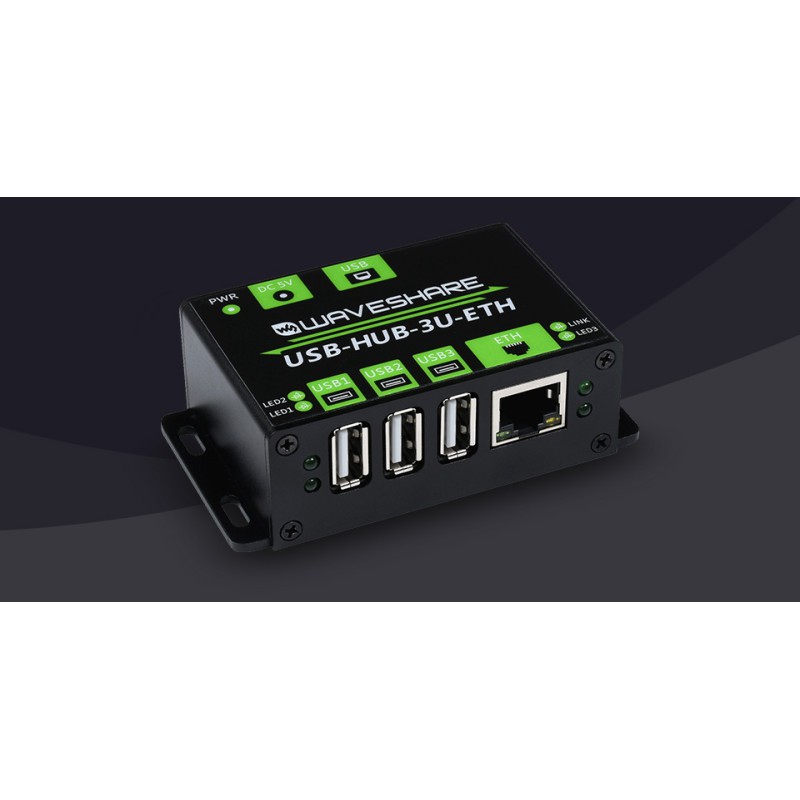

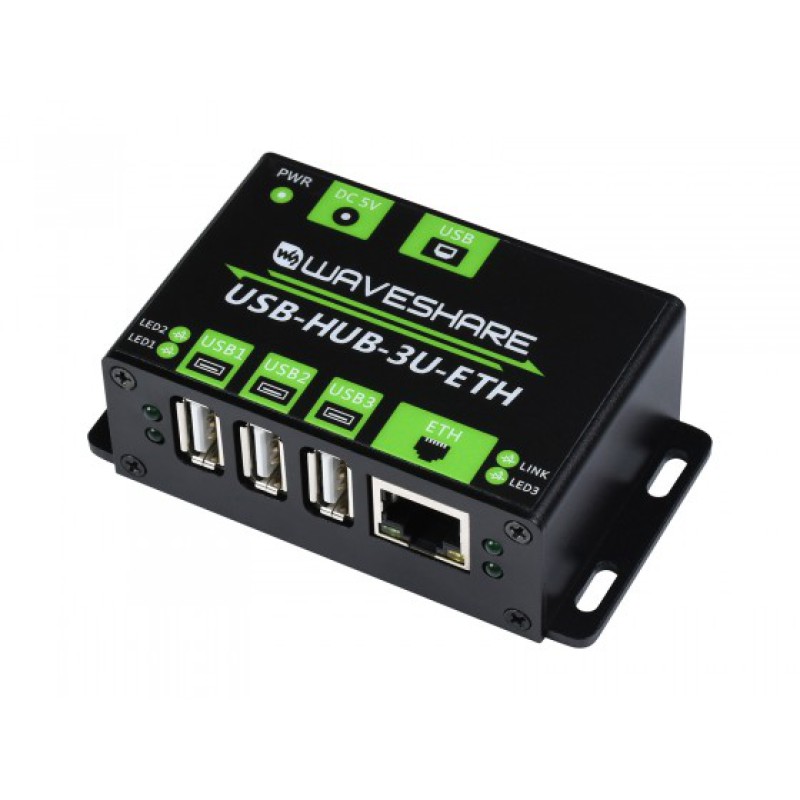

Industrial Grade Multifunctional USB HUB, Extending 3x USB ports + 100M Ethernet Port
Overview

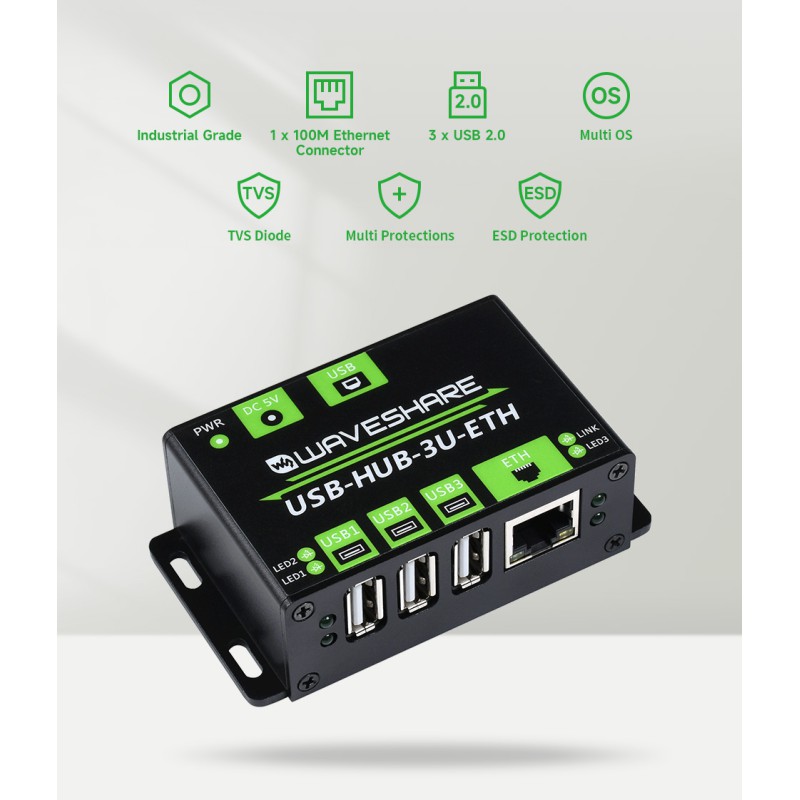

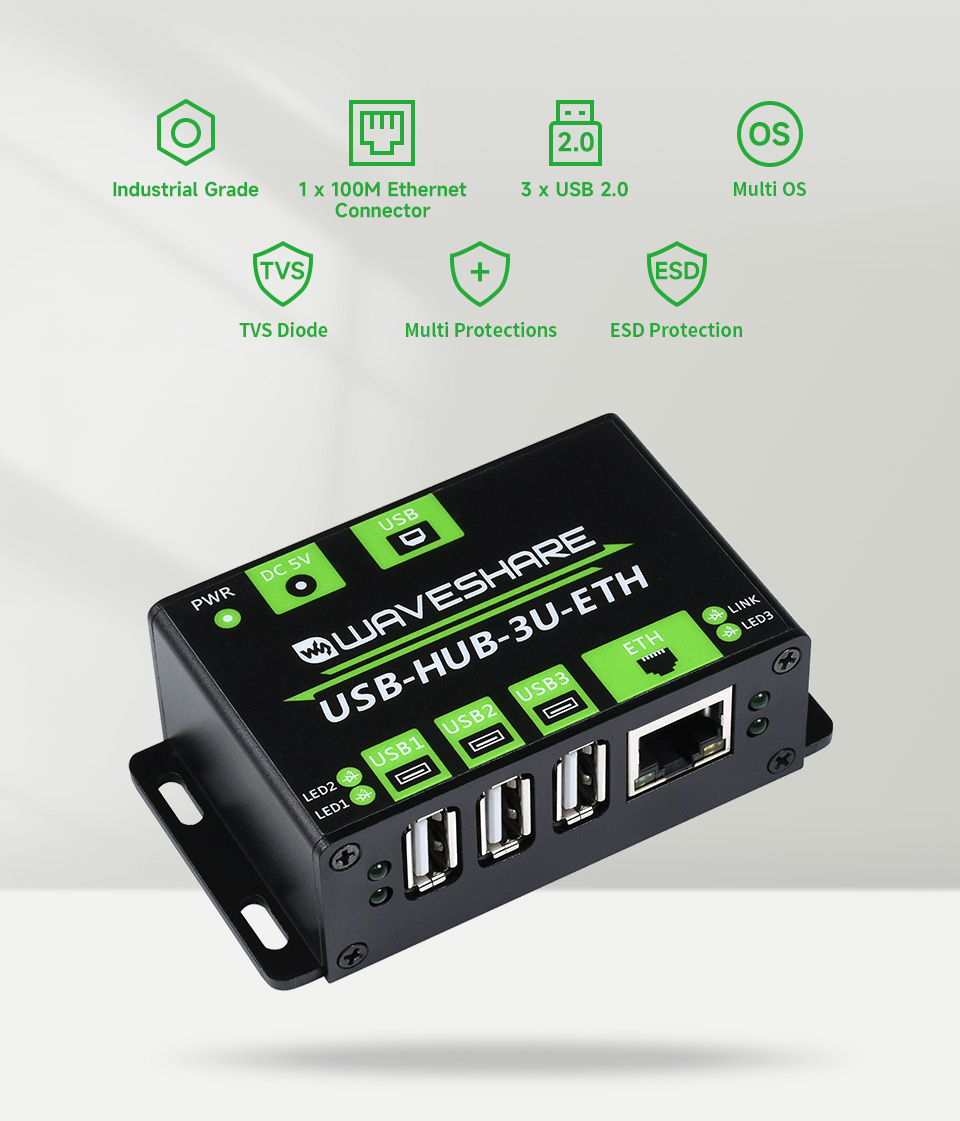

Feature
- 3 x extended USB ports, compatible with USB 2.0 / 1.1 transmission.
- 3-U high-speed USB port, up to 480Mbps.
- Onboard 1-Ch RTL8152B Ethernet chip, 100M network transmission.
- Industrial grade HUB chip.
- ESD protection for each USB port, preventing electric surge damage and data loss.
- Over-voltage protection, effectively preventing other high-voltage power inputs from damaging the connected devices.
- Multiple protection circuits: over-voltage, over-current, short circuit, over-temperature, reverse current, under voltage lock-out, 8KV ESD protection, filtering protection, etc.
- LED indicators for monitoring operating statuses of power supply, network port, and USB ports.
- Industrial grade metal case, rugged & durable, with mounting holes for easy installation.

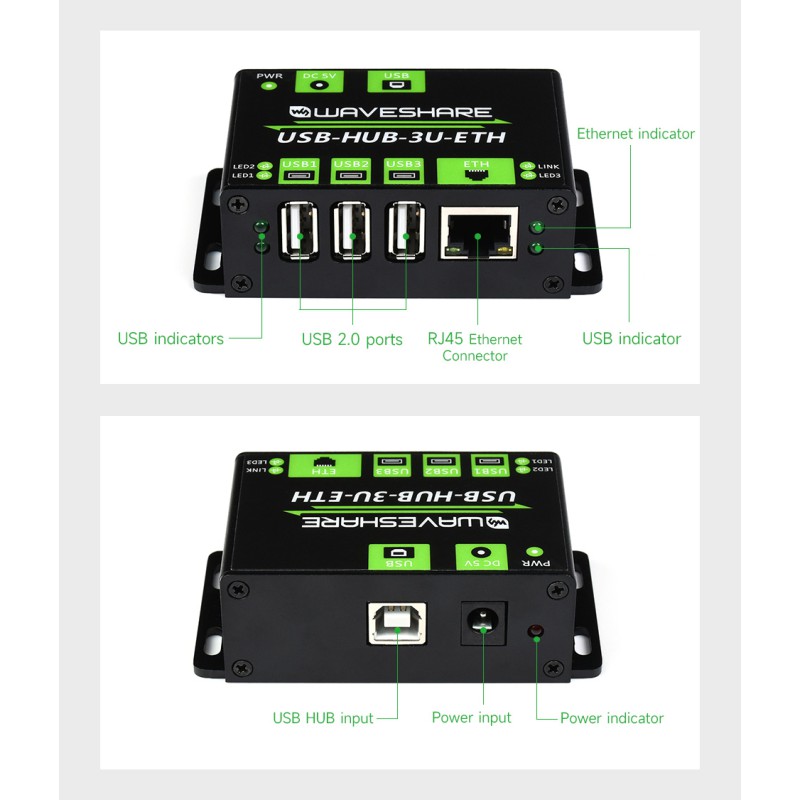

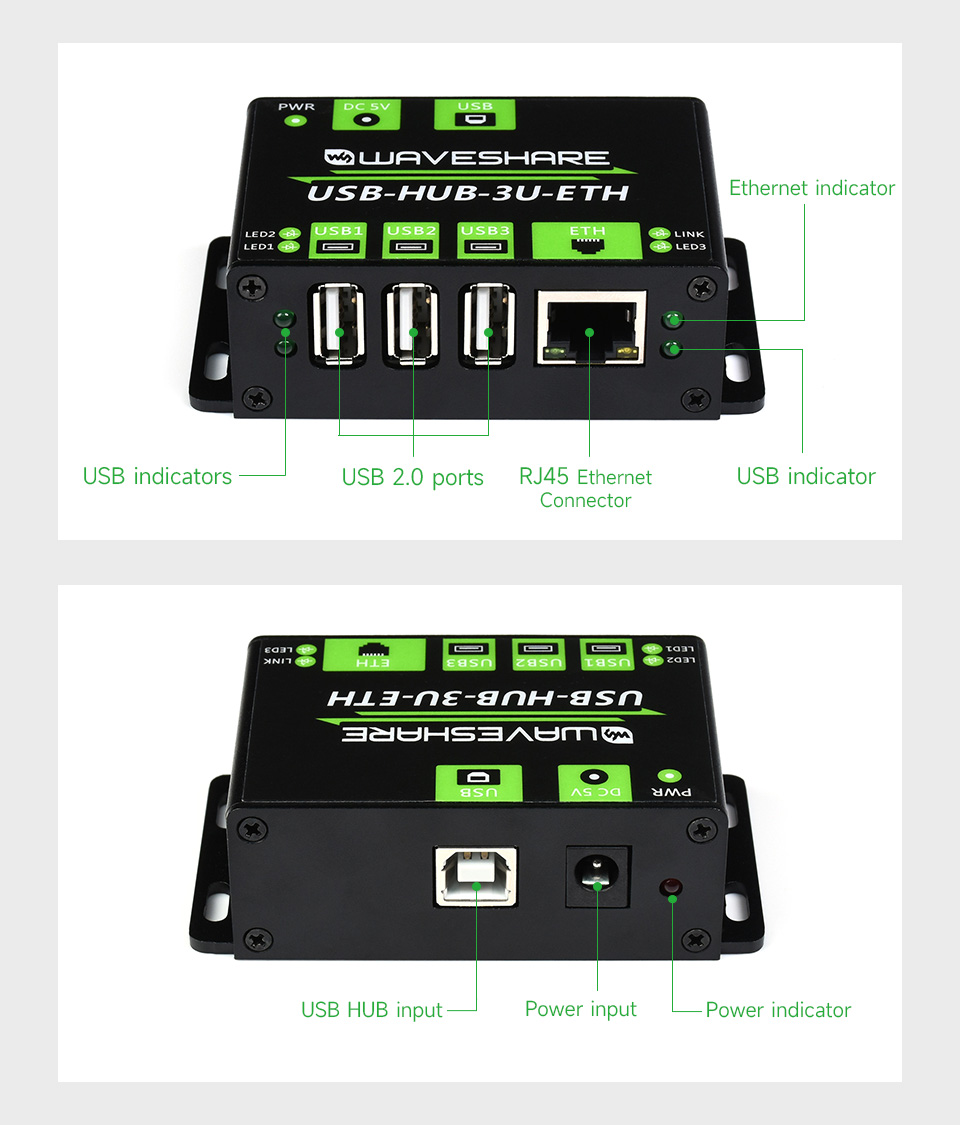

Hardware Connection
- Only supports 5V, and it will automatically power off when the voltage is too high.
- Three USB output transmission ports and its maximum output current is 1.2A. If you exceed this limit, the short-circuit protection will be triggered, which requires the removal of the device to restore.
- One RJ45 Ethernet port: its orange indicator will flash when connecting to the network normally, and the green one and the LINK LED will be always on.
- LED1-LED3 indicates the enumerable situation of each USB. If there is one USB is connected and enumerated successfully, the corresponding LED will be on.
- The red PWR LED indicates it is powered on.
- The operating temperature: -40 ℃~85 ℃. Note that there is no condensation, and this module is not waterproof.
Specifications
| USB PORT | USB 2.0 Port x 3, theoretically up to 480Mbps |
|---|---|
| NETWORKING | 10/100 adaptive |
| USB HUB INPUT | operating voltage:5V connector:USB-B |
| USB OUTPUT | operating voltage:5V@Imax:1.2A① connector:USB-A |
| EXTERNAL POWER | power supply voltage:DC 5V② connector:DC jack |
| OPERATING ENVIRONMENT | -40℃ ~ 85℃ |
| OS SUPPORT | Mac OS (8.6 or above), Linux(2.4.20 or above), Windows 11 / 10 / 8.1 / 8 / 7 / XP |
