Infrared Emitters and Detectors

Side-looking Infrared Emitters and IR Detectors.
These simple devices operate at 940nm and work well for generic IR systems including remote control and touch-less object sensing.
Using a simple ADC on any microcontroller will allow variable readings to be collected from the detector.
The emitter is driven up to 50mA with a current limiting resistor as with any LED device.
The detect is a NPN transistor that is biased by incoming IR light.


דפי נתונים:

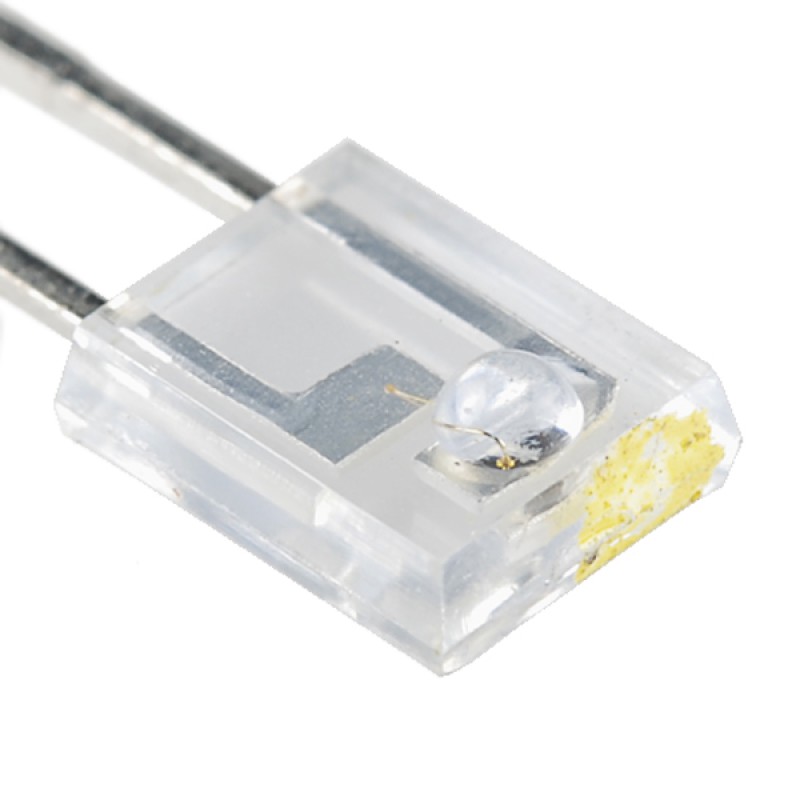

• IR Emitter (Yellow dot)

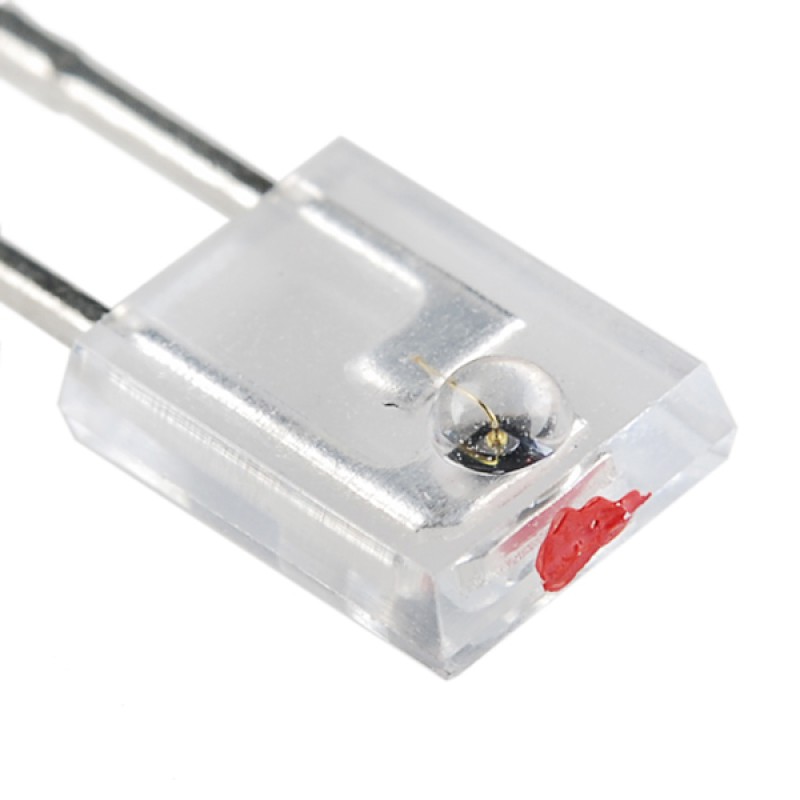

• IR Detector (Red dot)

שימושים:

• IR Schematic - Basic object detection schematic
• Seattle Robotics - Infrared object detection
• Robot Room - Excellent website with lots of goodies

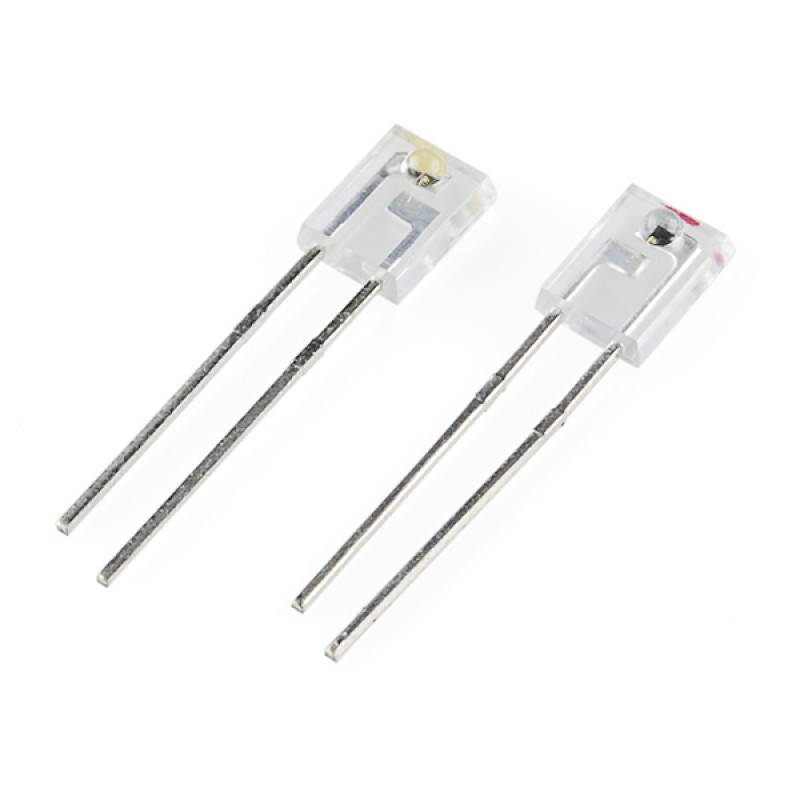

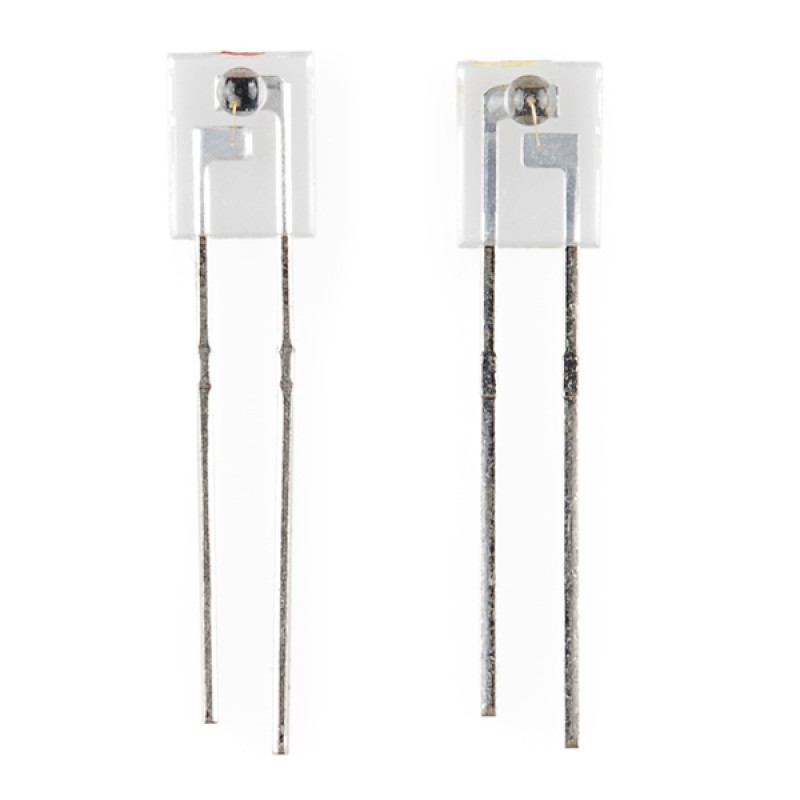

Sold as a pair, with one Emitter and one Detector.
