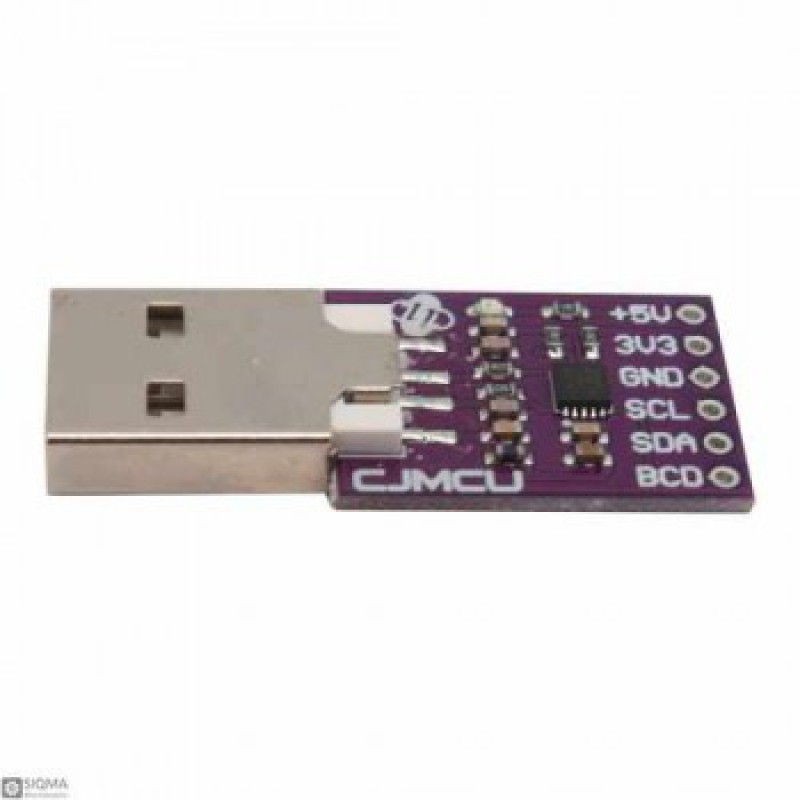

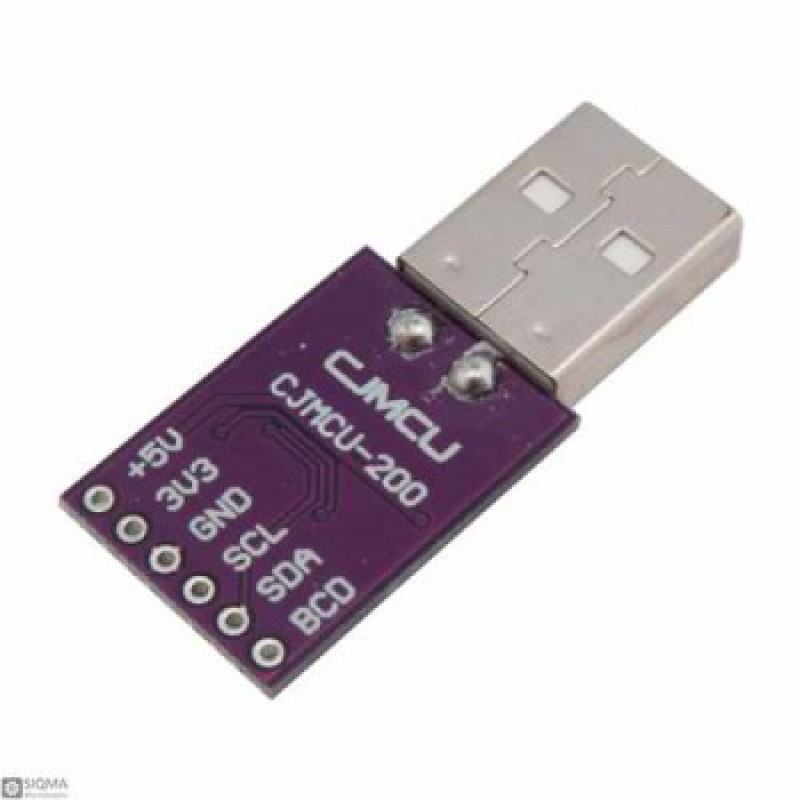

FT200XD USB to I2C Converter Module

The UMFT200XD is a breakout board that converts USB Full-Speed to I2C. The USB-I2C module provides a complete interface between your PC and the I2C bus. The module is self-powered from the USB cable. The module is an I2C master only, not a slave. USB to I2C Professional is a general-purpose I2C and SPI interface tool that allows a user to communicate with any I2C or SPI slave devices. USB-to-I2C includes the USB-based hardware and Windows software and driver that is compatible with 64-bit versions of XP, Vista, Windows 7, Windows 8, and Windows 10.

Specifications:
Up to 3.4MHz, high-speed mode, I2C supported
Entire USB protocol handled on the chip, no USB specific firmware programming required
Fully integrated 2048 byte multi-time-programmable(MTP) memory storing device descriptors and CBUS I/O configuration
Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA
512 byte receive buffer and 512 bytes transmit
USB Power Configurations supports bus-powered, self-powered and bus-powered with power switching
Integrated +3.3V level converter for USB I/O
True 3.3VCMOS drive output and TTL input, Operates down to 1V8with external pull-ups, tolerant of 5V input
Configurable I/O pin output drive strength, 4mA(min) and 16mA(max)
Integrated power-on-reset circuit
Fully integrated AVCC supply filtering - no external filtering required
Internal 3V3/1V8 LDO regulators

Features:
Chip: FT200XD
Operating Voltage: 5V
Interface: USB, I2C
Pin Number: 6 Pins
